ViewSonic N4285p User Manual

17
ENGLISH
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic N4285p/N4785p
Getting Started
S-Video connection
Connect the S-Video and audio input jacks to the corresponding output jacks of your VCR or
other video device that has S-Video. S-Video provides better picture quality than composite
video connection. If both are connected, S-Video signal has priority.
--- VIDEO: S-Video input [10]
--- AUDIO: AV/ S-Video signal Audio input [15]
Component (YPbPr) connection
YPbPr provides better picture quality than the S-Video or the AV connection.
＊For YPbPr connection, connect the component video (YPbPr) and audio jacks to the
corresponding output jacks of your A/V device.
--- VIDEO: YPbPr 1 signal input [8]
--- AUDIO: YPbPr 1 signal Audio input [14]
or
--- VIDEO: YPbPr 2 signal input [7]
--- AUDIO: YPbPr 2 signal Audio input [13]
HDMI connection
HDMI (High-Denition Multimedia Interface) is a licensable audio/video connector interface
for transmitting uncompressed, encrypted digital streams between this TV and any HDMI-
equipped audio/video equipment.
＊Be sure to use only an HDMI cable that bears the HDMI logo.
＊If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI
Input Terminal (with DVI-to-HDMI cable or adapter), and connect the Audio cable to the
Audio In jacks.
1. With HDMI cable: HDMI 1 Input Terminal [3] or HDMI 2 Input Terminal [4]
2. With HDMI-DVI cable:
--- VIDEO: HDMI 1 Input Terminal [3]
--- AUDIO: HDMI 1 Audio input [12]
or
--- VIDEO: HDMI 2 Input Terminal [4]
--- AUDIO: PC/ HDMI 2 signal Audio input [18]
or
--- VIDEO: HDMI 3 Input Terminal [20] (only for N4785p)
--- AUDIO: AV 2/ HDMI 3 signal Audio input [21] (only for N4785p)
Computer connection
Connect the VGA cable and Audio cable from the VGA signal input and PC Audio input to
the corresponding ports on your A/V device.
--- VIDEO: VGA signal input [6]
--- AUDIO: PC/ HDMI 2 Audio input [18]

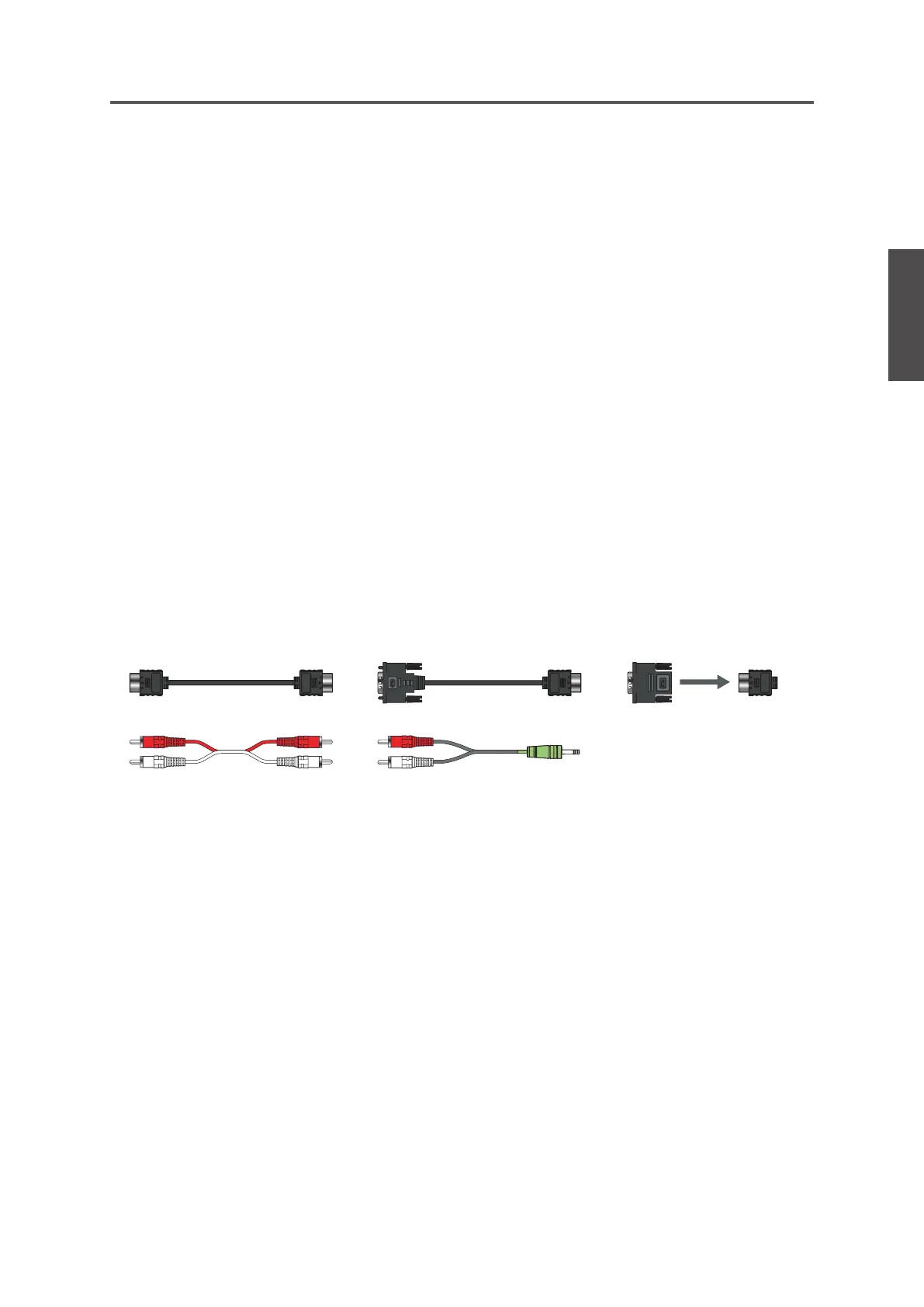

DVI-to-HDMI cableHDMI cable
Audio cableAudio cable
DVI-to-HDMI adapter

ViewSonic N4285p Specifications

General

Response time	6.5 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewing angle, horizontal	176 °
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) out	2
Headphone connectivity	3.5 mm
Product color	Black

Weight and Dimensions

Depth (with stand)	294 mm
Width (with stand)	1025 mm
Height (with stand)	773 mm
Weight (with stand)	29800 g
Depth (without stand)	139 mm
Height (without stand)	704 mm
Weight (without stand)	26100 g
