ViewSonic PJD5122 User Manual

Introduction 7

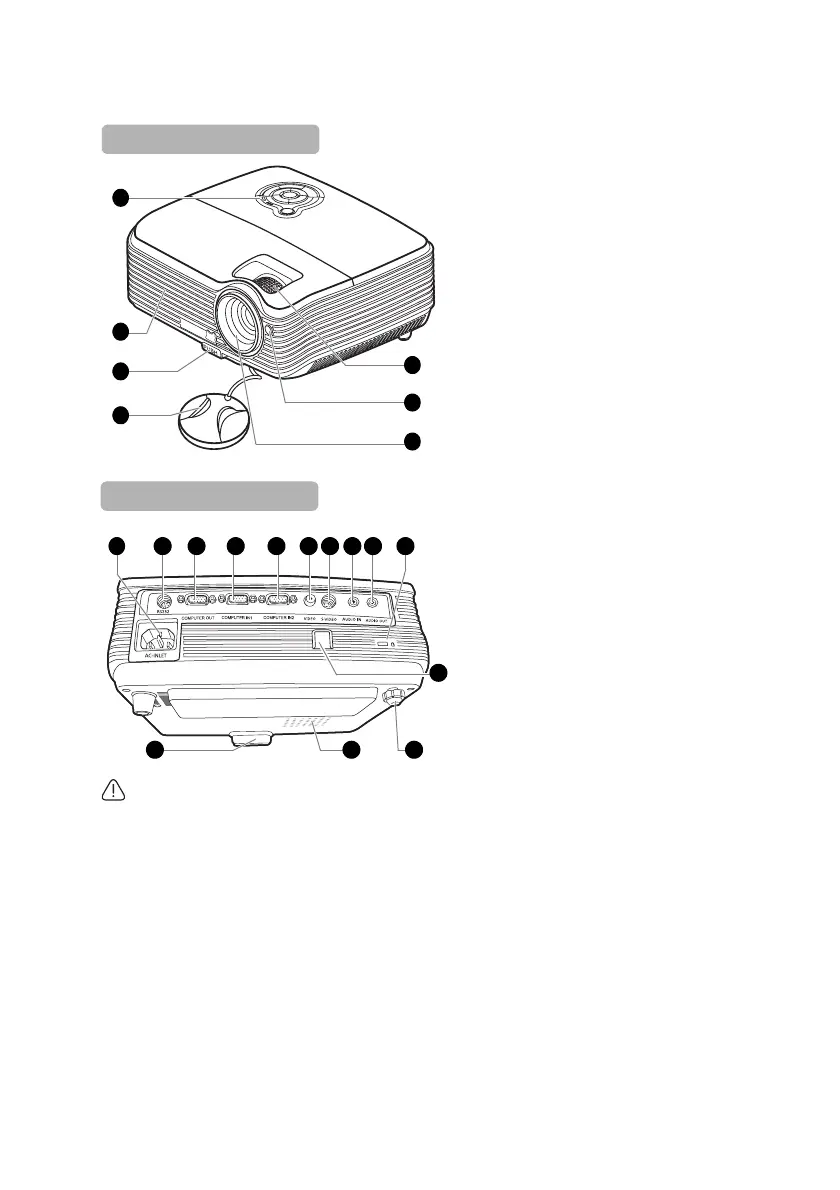

Projector exterior view
1. External control panel
(See "Projector and remote control"
on page 8 for details.)
2. Vent (heated air exhaust)
3. Quick-release button
4. Lens cover
5. Focus ring and Zoom ring
6. Front IR remote sensor
7. Projection lens
8. AC power cord inlet
9. RS-232 control port
10. RGB signal output socket
11. RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket-1
12. RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket-2
13. Video input socket
14. S-Video input socket
15. Audio signal input socket
16. Audio signal output socket
17. Kensington anti-theft lock slot
18. Quick-release foot
19. Lamp cover
20. Rear adjuster foot
21. Security bar
Connects a commercially available
theft prevention cable.
Warning
• THIS APPARATUS MUST BE EARTHED.
• When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,
or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should
occur during operation of the unit, operate the disconnect device to switch the power supply
off, or disconnect the power plug.
Front/upper side
7
1
2
3
4
5
6
Rear/lower side
18 20
1714131110
9
8
19
15 1612
21

ViewSonic PJD5122 Specifications

General

Projection distance	1.2 - 11.3 m
Vertical scan range	48 - 120 Hz
Horizontal scan range	31 - 100 kHz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	30 - 300 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	± 40 °
Resolution	1280 x 1024 pixels
Aspect ratio	4:3, 16:9
RS-232 ports	1
Weight (imperial)	5.1 lbs
Dimensions (WxDxH)	264 x 225 x 96.4 mm
Power requirements	100 - 240 V, 50/60 Hz
Connectivity technology	Wired
Lamp power	220 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	6000 h
Focus	Manual
Focal length range	- mm
Full HD	No
HD-Ready	Yes
Analog signal format system	SECAM
RMS rated power	5 W
Audio (L/R) in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	2
Cables included	VGA
Noise level	32 dB
Certification	CB, RoHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM, NOM, PSB, C-tick, EK, CE, TUV/GS, GOST-R, SASO UKrSEPRO, CCC
Noise level (economic mode)	26 dB
Power consumption (standby)	1 W
Power consumption (typical)	280 W
Operating altitude	1.8 - 3048 m
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Market positioning	Presentation

Weight and Dimensions

Weight	2300 g
