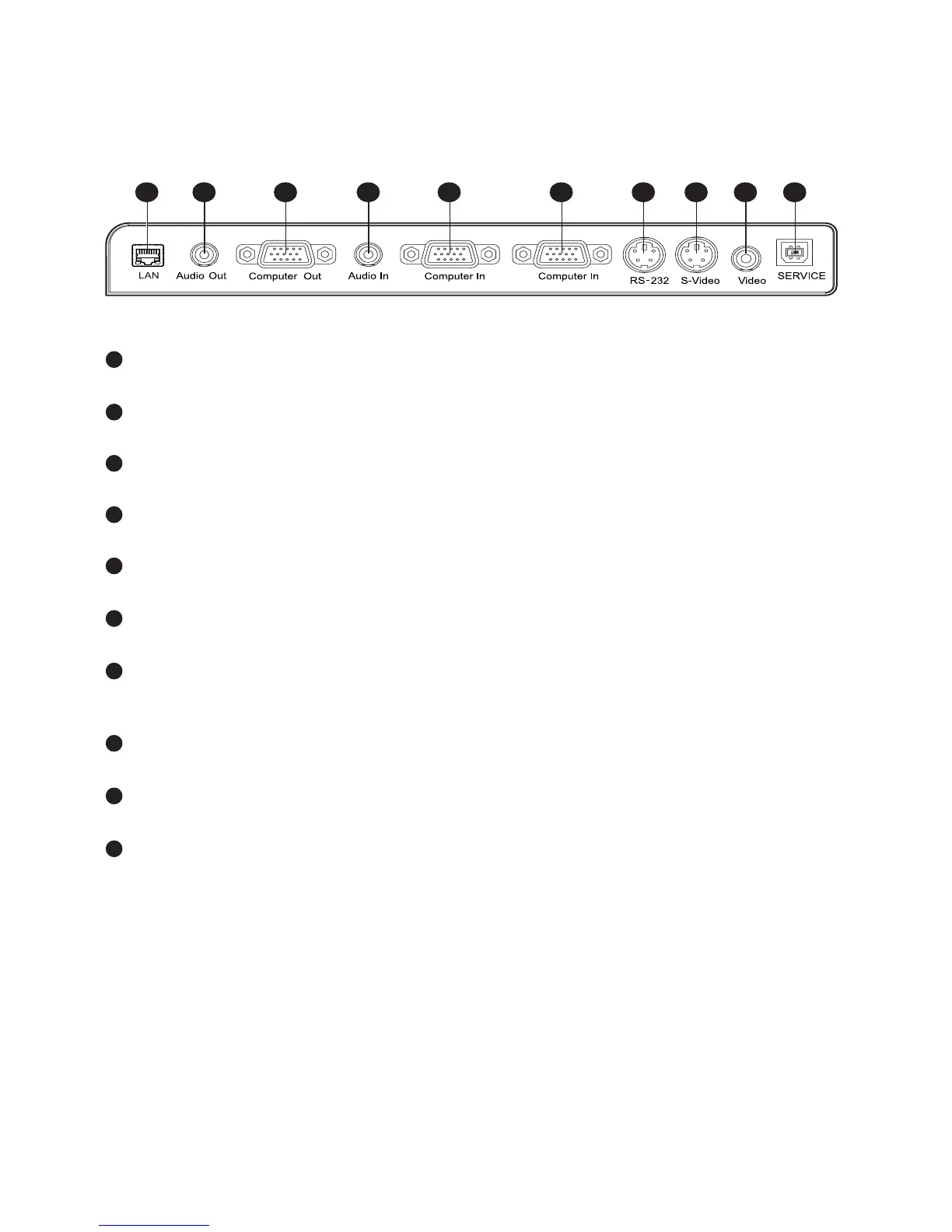

Connection Ports
LAN
For network control.
Audio Out
Connect to a speaker or other audio input equipment.
Computer Out
Connect to a computer display, etc.
Audio In
Connect an audio output from video equipment to this jack.
Computer In
Connect image input signal (analog RGB or component) to this jack.
Computer In
Connect image input signal (analog RGB or component) to this jack.
RS-232
When operating the projector via a computer, connect this to the controlling computer's
RS-232C port.
S-Video
Connect S-Video output from video equipment to this jack.
Video
Connect composite video output from video equipment to this jack.
SERVICE
This connector is for firmware update.
