Installation

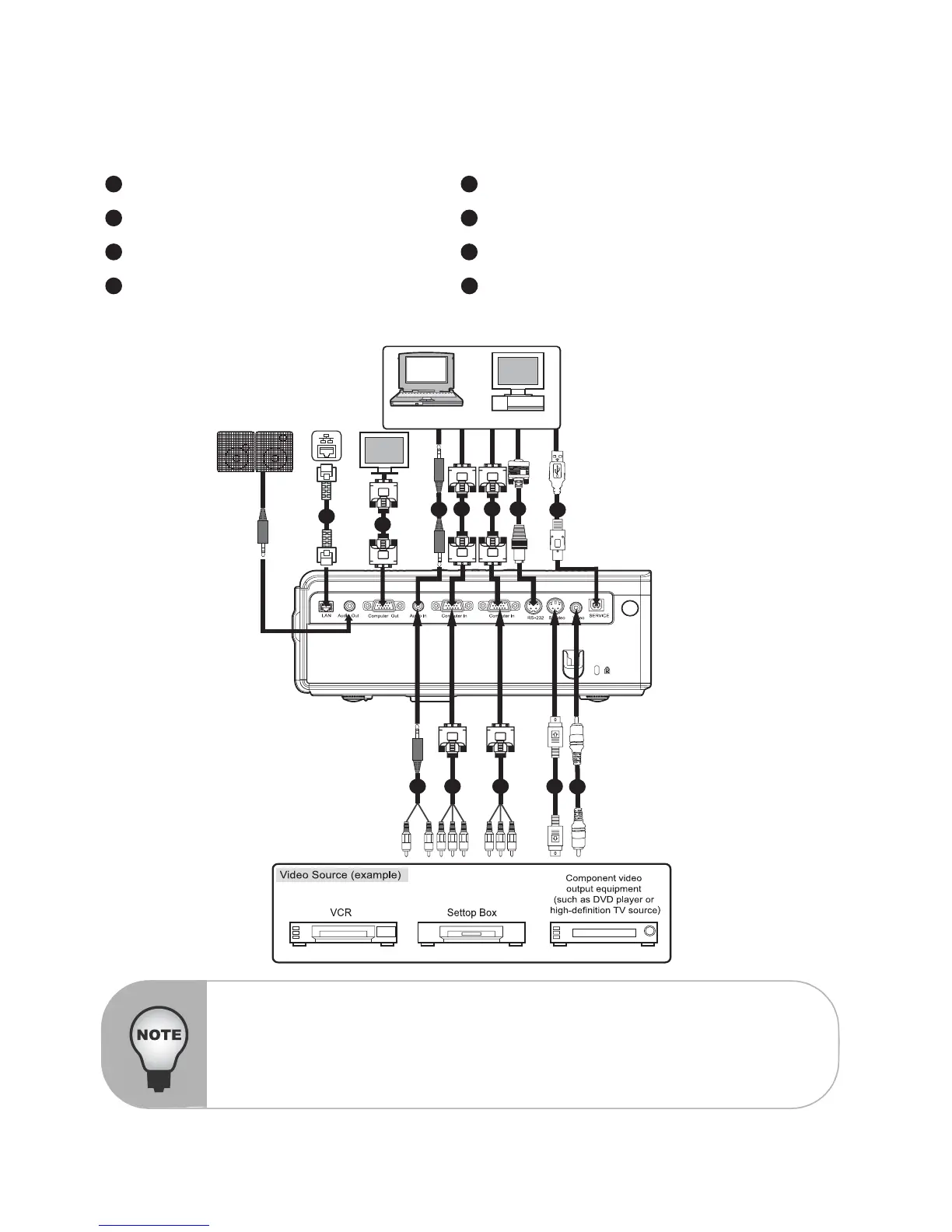

Connecting the Projector
VGA Cable (D-Sub to D-Sub) VGA (D-Sub) to HDTV (RCA) Cable
Audio Cable S-Video Cable
RS-232 Cable Composite Video Cable
USB Cable Internet Cable
1 5
2 6
3 7
4 8
Desktop type
Laptop type
41
1
12
7
3
652 5
8
When connecting cable, power cords of both a projector and external
equipment
should be disconnected from AC outlet.
The figure above is a sample connection. This does not mean that all of
these devices can or must be connected simultaneously.
The cables that come with the projector may differ from the above
illustration. The included cables are based on actual shipment delivery.
ViewSonic 10
PJD6220/PJD6220-3D
PJD6230/PJD6240
