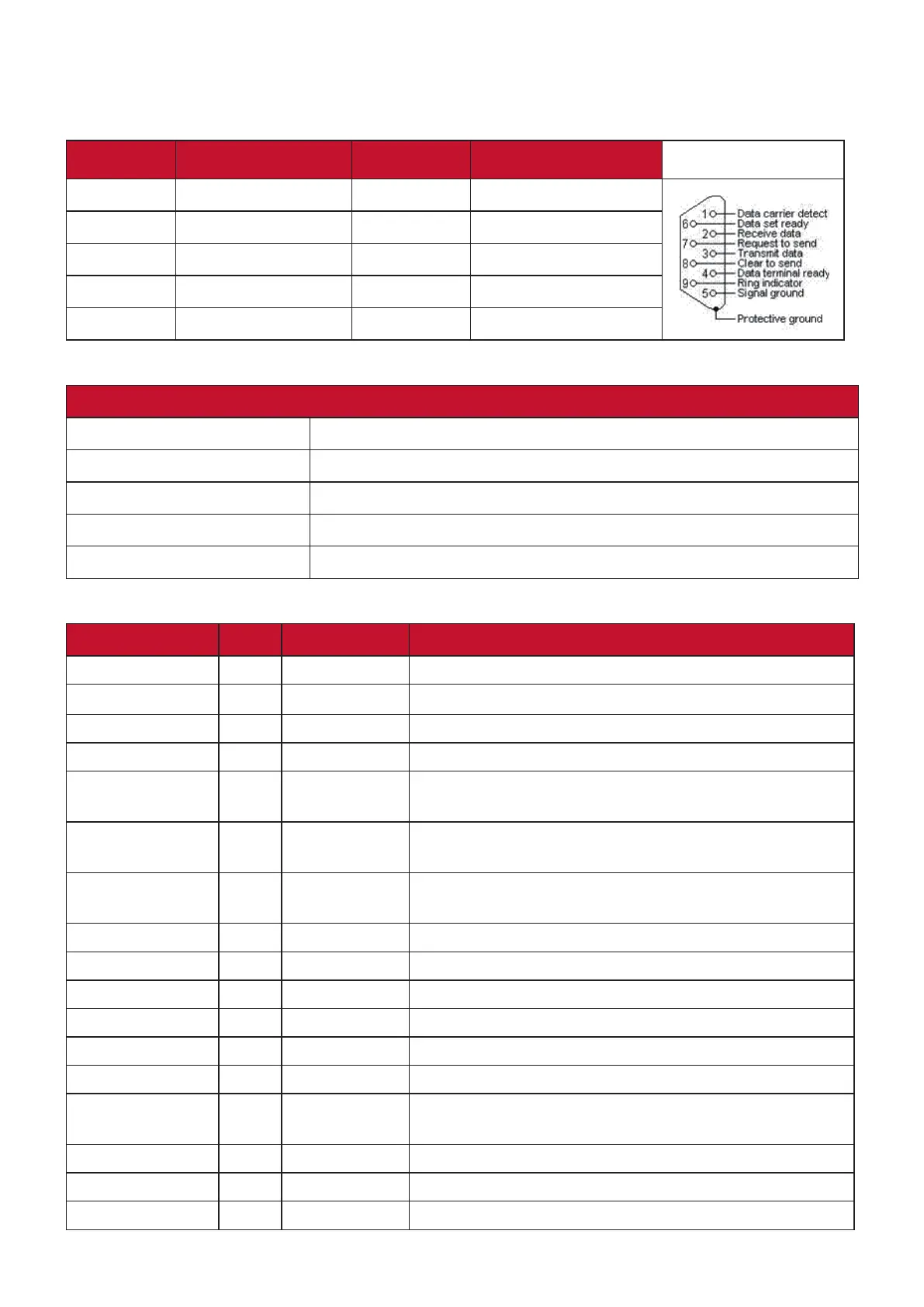

ViewSonic PX727HD - RS-232 Command Table; Pin Assignment; Interface; Command Table




   
1
NC
2
RX
3
TX
4
NC
5
GND
6
NC
7
RTSZ
8
CTSZ
9
NC


Baud Rate
115200 bps (default)
Data Length
8 bit
Parity Check
None
Stop Bit
1 bit
Flow Control
None

   
Power Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D
Power Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E
Power Write ON/OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x34 0x00 0x91
Power Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00 0x5E
Keystone-
Horizontal
Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x00 0x8E
Keystone-
Horizontal
Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x01 0x8F
Keystone-
Horizontal
Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x31 0x8F
Color mode Write ISF Day 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x16 0x7F
Color mode Write ISF Night 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x17 0x80
ISF mode Write ON 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x38 0x01 0x97
ISF mode Write OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x38 0x00 0x96
ISF mode Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x38 0x97
Reset Settings Write Reset Settings 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x02 0x00 0x5F
Reset Color
Settings
Write Reset Color
Settings
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87
Splash Screen Write Black 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67
Splash Screen Write Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68
Splash Screen Write ViewSonic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69
