10

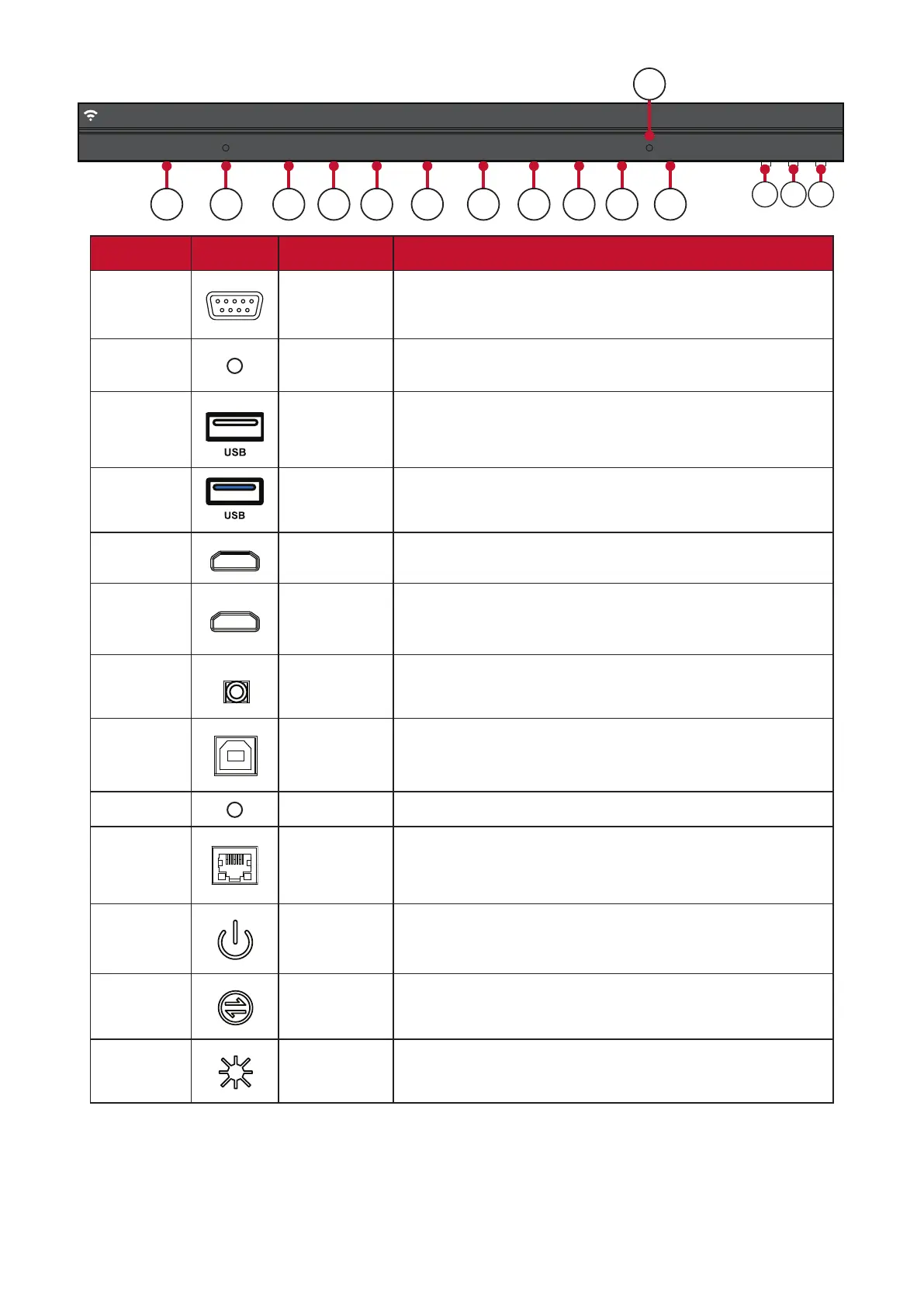

I/O Control Panel
BRIGHTNESSINPUTSTAND-BY
LANUSB-BAUDIO
OUT
HDMI
1
HDMI
2
HDMI
OUT
USBUSBUSBRS232
Number Item Port Descripon
1
RS-232 Serial control port.
2
Ambient
Light Sensor
Detects ambient light and adjusts brightness levels
automacally.
3
USB 2.0 USB Reader (5V/0.5A)
4
USB 3.0 USB Reader (5V/1A)
5
HDMI Out Extend content out to another display device.
6
HDMI In
High denion input; connect to PC with HDMI output,
set-top box, or other video device.
7
Audio Out Audio output to an external speaker.
8
USB-B Maintenance port for external PC connecon.
9
IR Receiver Receiver for the Remote Control.
10
LAN
Standard RJ45 (10M/100M/1000M) Internet connecon
interface.
11
Stand-by Press to enter Stand-by mode.
12
Input Select Press to cycle through available input sources.
13
Brightness Press to cycle through brightness levels.
Locking the Control Panel
When the administrator does not want others to use the control panel, it can be
locked by pressing 1168+OK on the remote control.
1 2
9
3 3 4 5 6 6 7 8
10
11 12 13
