Installing the Le and Right Cabinet

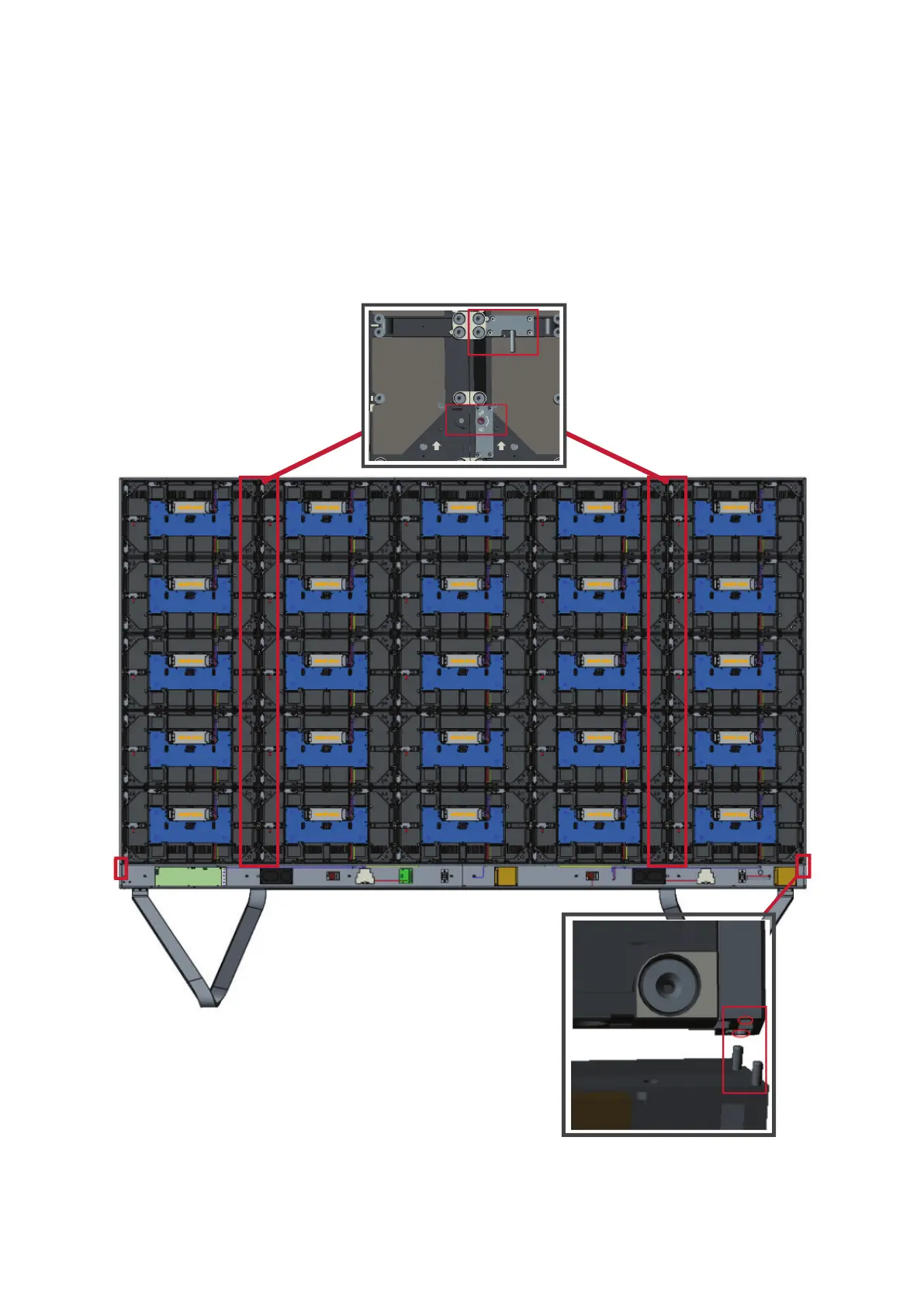

1. Carefully li the Le and Right Cabinet up onto the Floor Stand, securing the
Mounng Bracket into the support channel of the Top Cross Beam. The boom of
the Cabinet will rest on the Boom Cross Beam.
NOTE: Ensure the holes of the Cabinet and the System Control Box are aligned.
2. Push each Locking Bolt and lock each Hook with the hex tool to securely connect
the Le and Right Cabinet to the Middle Cabinets.
NOTE: There are ve (5) Locking Bolts and 10 Hooks between each cabinet.
To Next Page
