30
Inst

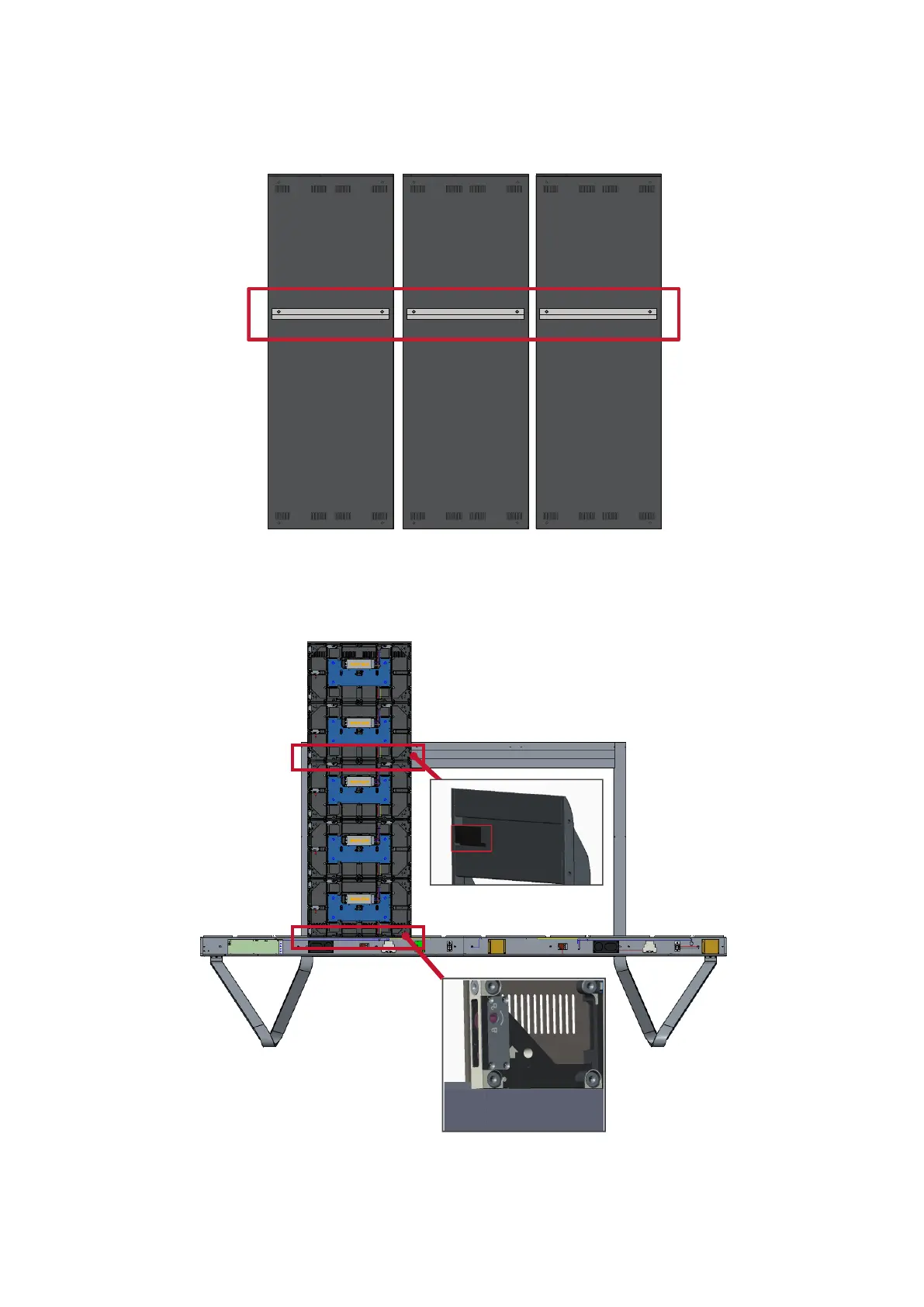

alling the Middle Cabinets
1.
Ensure the thr
ee (3)
Mounng Brack
ets
on the rear of the three (3)
Middle
Cabinets
ar
e posioned as shown below:
2.
Care
fully li a
Cabinet
up ont
o the
Floor Stand
, securing the
Moun
ng Brack
et
int
o the support channel of the
T
op Cross Beam
. The boom of the
Cabinet
will
res
t on the
Boom Cross Beam
.
29
31
