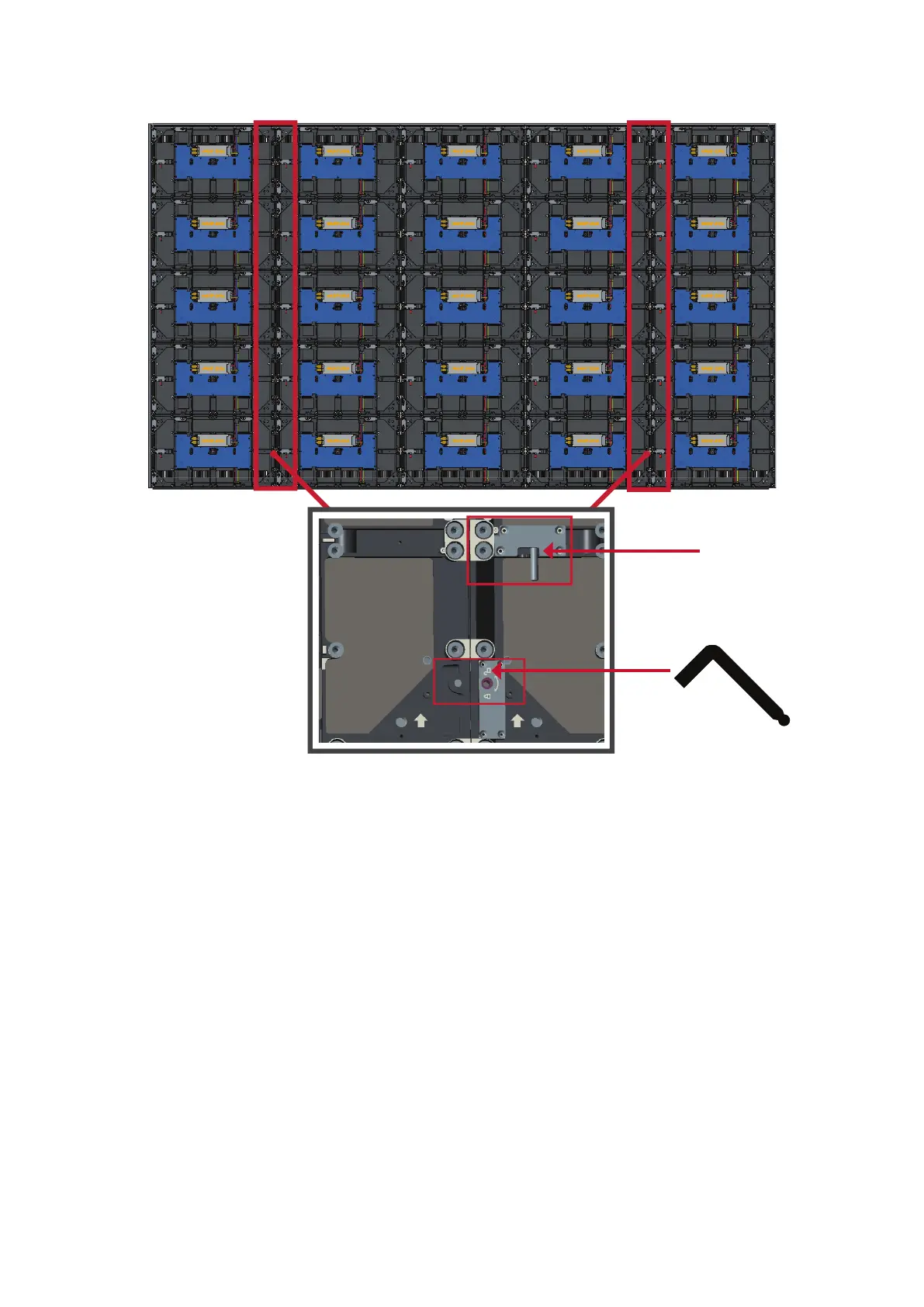

4. Push each Locking Bolt and lock each Hook with the hex tool to securely connect

the Le and Right Cabinets.

NOTE: There are ve (5) Locking Bolts and 10 Hooks between each cabinet.

Push the Locking Bolt.

Lock each Hook with the hex tool.

Safety Precautions3
Table of Contents5
Introduction8
Package Contents8
Product Overview9
Front Panel9
Rear Panel9
I/O Control Panel10
Remote Control11
Installation14
Wall Mounting14
Installing the Upper and Lower Wall Mount Brackets14
Installing the Middle Cabinets16
Installing the Left and Right Cabinet18
Connecting the System Control Box20
Installing the LED Modules22
Installing System Control Box Covers23
Floor Stand Installation25
Component List25
Constructing the Floor Stand27
Connecting the System Control Box to the Floor Base29
Installing the Middle Cabinets30
Installing the Left and Right Cabinet33
Connect the Network and Power Cables34
Installing the LED Modules35
Installing System Control Box Covers36
Making Connections38
Connecting to External Devices38
HDMI in Connection38
Audio Connection38
Video Output Connection38
USB and Networking Connections39
RS-232 Connection39
Using Your Display40
Powering On/Off Your LED Display40
Home Screen41
Navigating the Home Screen42
Remote Control42
Keyboard and Mouse42
APP Center43
Input Source44
Settings45
Settings Menu Tree46
Network & Internet51
Connected Devices54
Apps & Notifications55
Display58
Sound61
Storage62
System63
Upgrade65
On-Screen Display (OSD) Menu66
On-Screen Display (OSD) Menu Tree67
Menu Options70
Sound72
Time74
Network77
Update79
Advanced80
Embedded Applications82
Viewboard Cast82
Vsweeper86
Browser87
WPS Office87
Appendix88
Specifications88
LED Display Stuck Pixel Definition89
Timing Chart90
Hdmi (Pc)90
HDMI (Video)91
Supported Media Formats92
Troubleshooting94
Maintenance96
General Precautions96
Initial Operation96
Front Panel Cleaning Instructions96
Cabinet Cleaning Instructions96
Regular Use97
Vacuum Suction Tool98
LED Module Disassembly100
RS-232 Protocol102
RS-232 Hardware Specification102
RS-232 Communication Setting102
Command Table103
Regulatory and Service Information104
Compliance Information104
FCC Compliance Statement104
IC Warning Statement105
Country Code Statement105
IC Radiation Exposure Statement106
CE Conformity for European Countries106
Declaration of Rohs2 Compliance107
European Union Regulatory Conformance107
Indian Restriction of Hazardous Substances108
Product Disposal at End of Product Life108
Copyright Information109
Customer Service110
Limited Warranty111
Mexico Limited Warranty114

Other manuals for ViewSonic VS18324
