ViewSonic VS18325 - Page 31

31

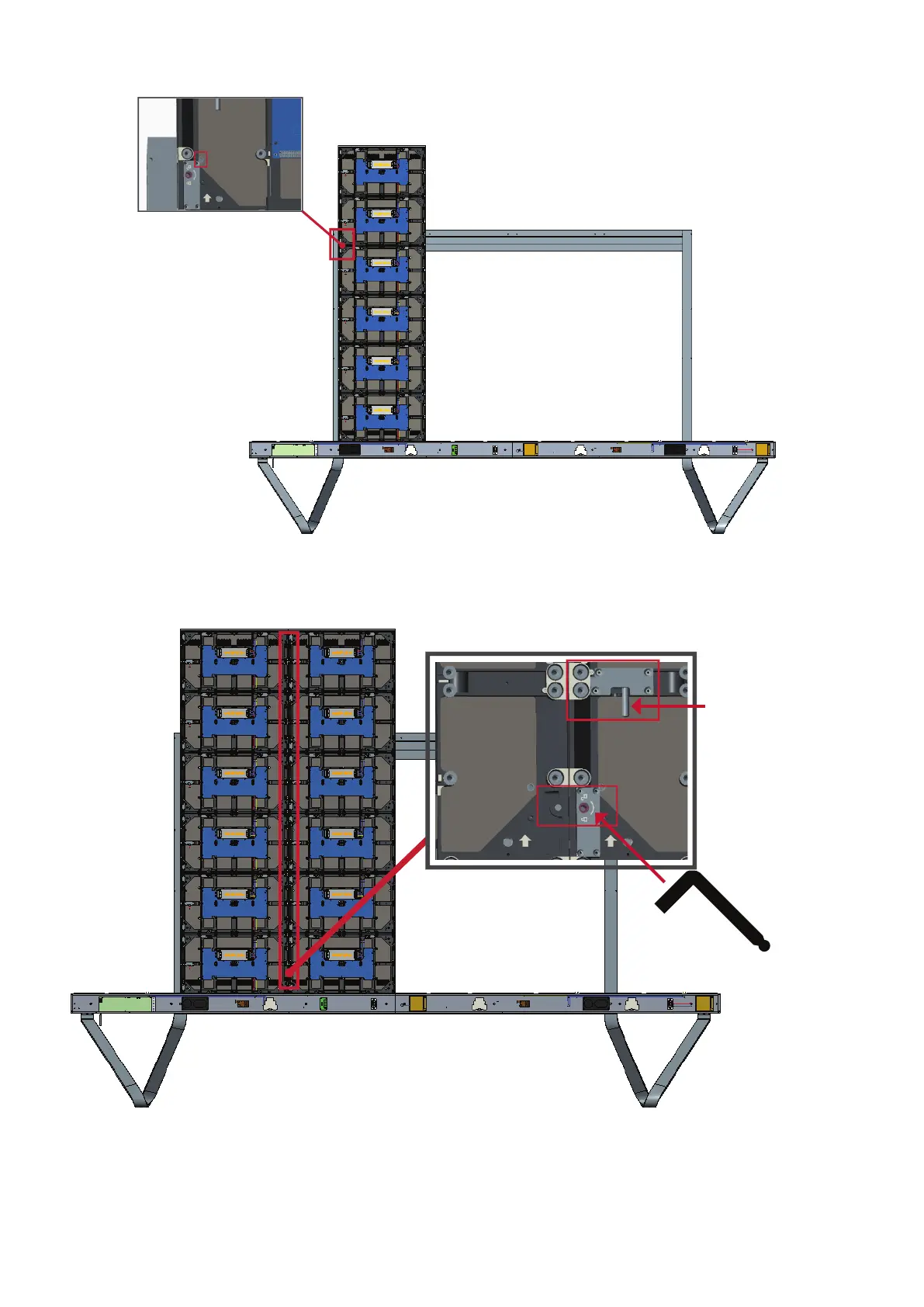

3. Secure the Cabinet to the Support with the provided screws (M6x10mm).
4. Push each Locking Bolt and lock each Hook with the hex tool to securely connect
each cabinet together.
NOTE: There are six (6) Locking Bolts and 12 Hooks between each cabinet.
Push the Locking Bolt.
1
3
4
Lock each Hook with the hex tool.
