Installing the Le and Right Cabinet

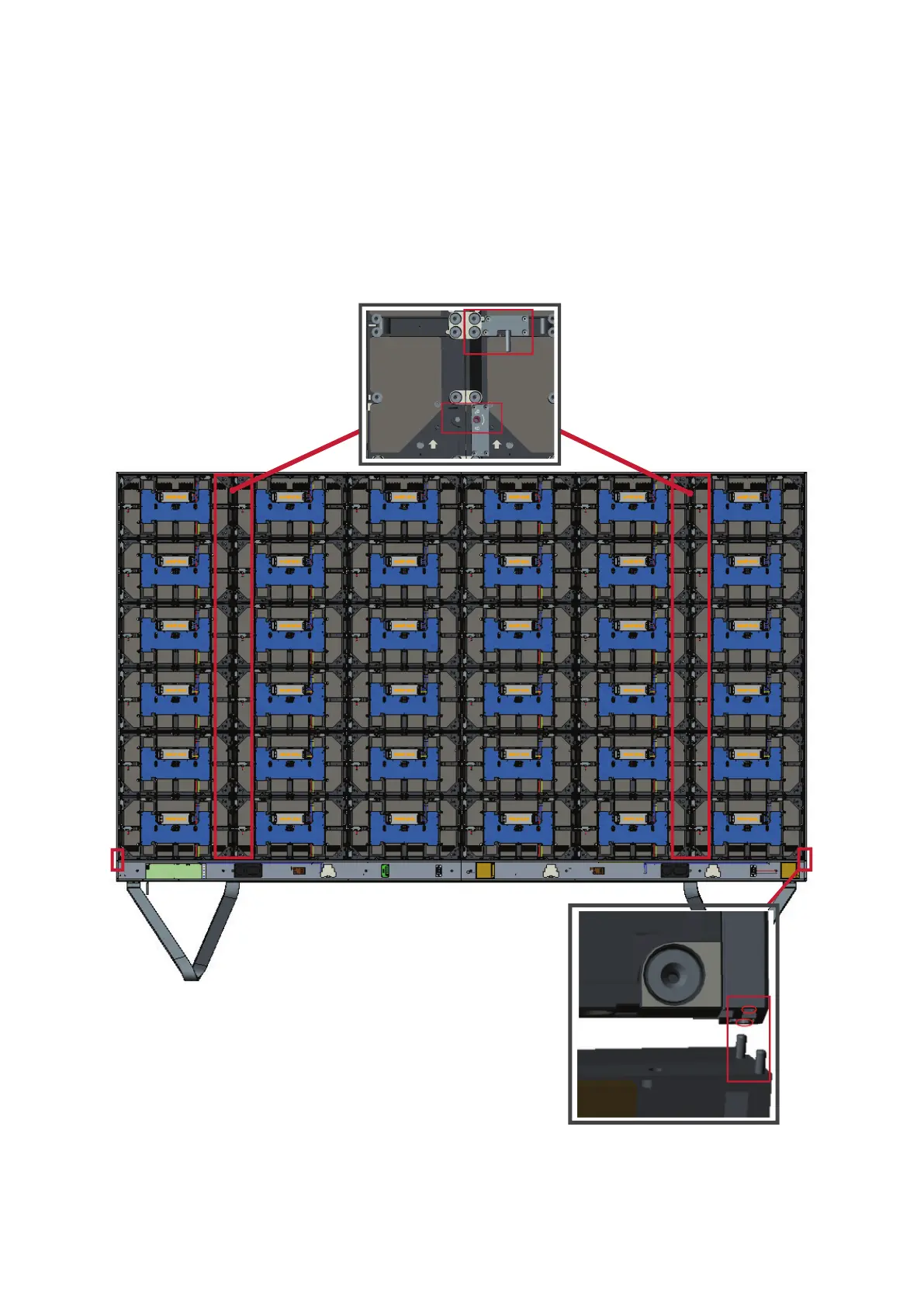

1. Carefully li the Le and Right Cabinet up onto the Floor Stand, securing the
Mounng Bracket into the support channel of the Top Cross Beam. The boom of
the Cabinet will rest on the Boom Cross Beam.
NOTE: Ensure the holes of the Cabinet and the System Control Box are aligned.
2. Push each Locking Bolt and lock each Hook with the hex tool to securely connect
the Le and Right Cabinet to the Middle Cabinets.
NOTE: There are six (6) Locking Bolts and 12 Hooks between each cabinet.
