Menu Opon Descripon

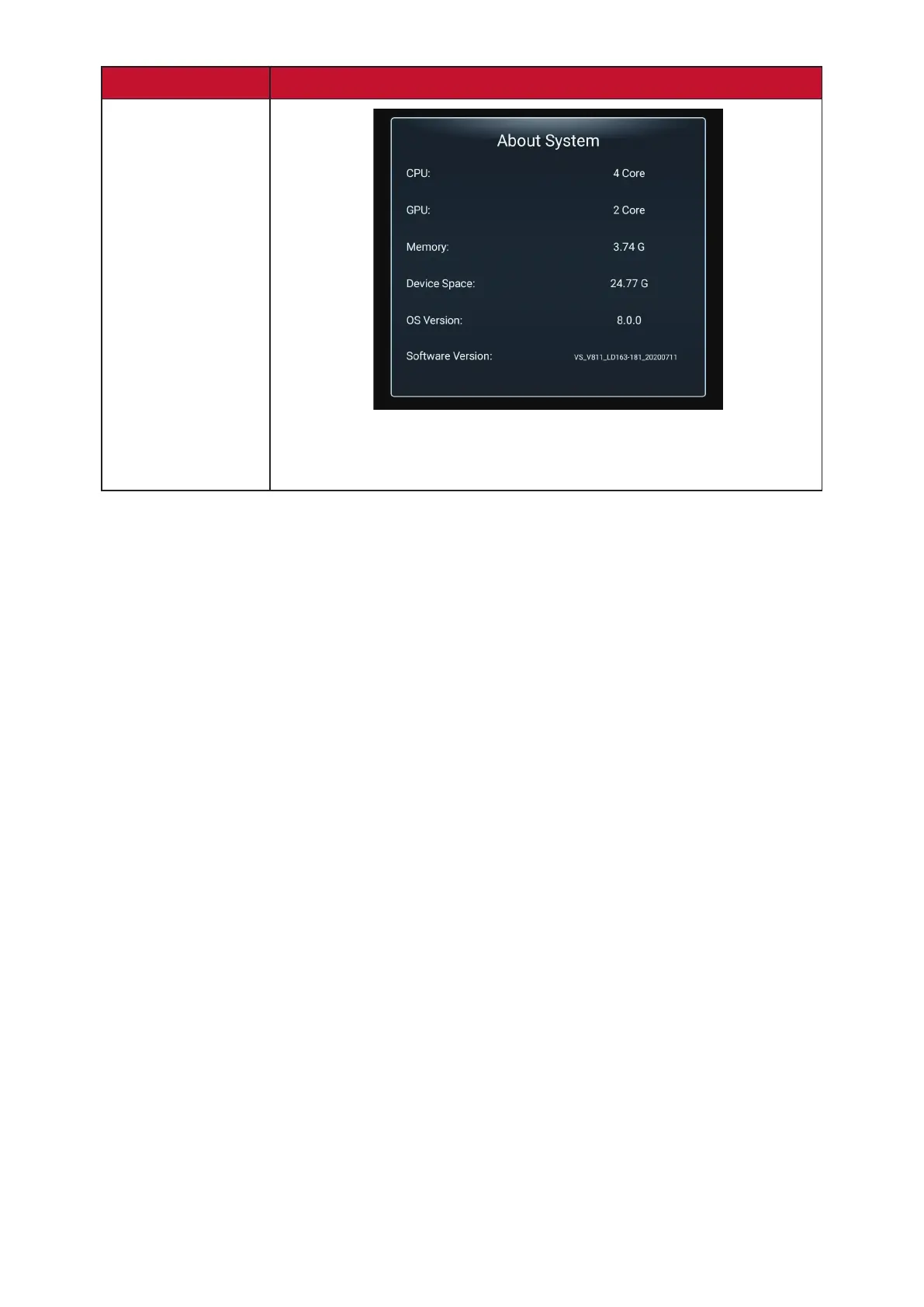

About System

View system informaon such as: CPU core count, GPU core

count, Memory used, Storage Space remaining, OS version, and

Soware version.
