ViewSonic VX2235wm-3 - Function Test Display Pattern

ViewSonic Corporation Confidential - Do Not Copy VX2235wm-3
18
Analog Digital
29. 1280 x 720 @ 50Hz, 37.5 kHz
30. 1280 x 720 @ 60Hz, 45 kHz
31. 1280 x 768 @ 50Hz, 39.6 kHz
32. 1280 x 768 @ 60Hz, 47.8 kHz
33. 1280 x 768 @ 75Hz, 60.3 kHz
34. 1280 x 960 @ 50Hz, 49.4 kHz
35. 1280 x 960 @ 60Hz, 59.7 kHz
36. 1280 x 960 @ 75Hz, 75.2 kHz
37. 1280 x 1024 @ 60Hz, 64 kHz
38. 1280 x 1024 @ 75Hz, 80 kHz
39. 1400 x 1050 @ 60Hz, 65.3 kHz
40. 1400 x 900 @ 60Hz, 55.5 kHz
41. 1400 x 900 @ 75Hz, 75 kHz
42. 1600 x 1200 @ 60Hz, 75 kHz
43. 1680 x 1050 @ 60Hz, 64.7 kHz
1280 x 720 @ 50Hz, 37.5 kHz
1280 x 720 @ 60Hz, 45 kHz
1280 x 768 @ 50Hz, 39.6 kHz
1280 x 768 @ 60Hz, 47.8 kHz
1280 x 768 @ 75Hz, 60.3 kHz
1280 x 960 @ 50Hz, 49.4 kHz
1280 x 960 @ 60Hz, 59.7 kHz
1280 x 960 @ 75Hz, 75.2 kHz
1280 x 1024 @ 60Hz, 64 kHz
1280 x 1024 @ 75Hz, 80 kHz
1400 x 1050 @ 60Hz, 65.3 kHz
1400 x 900 @ 60Hz, 55.5 kHz
1400 x 900 @ 75Hz, 75 kHz
1600 x 1200 @ 60Hz, 75 kHz
1680 x 1050 @ 60Hz, 64.7 kHz

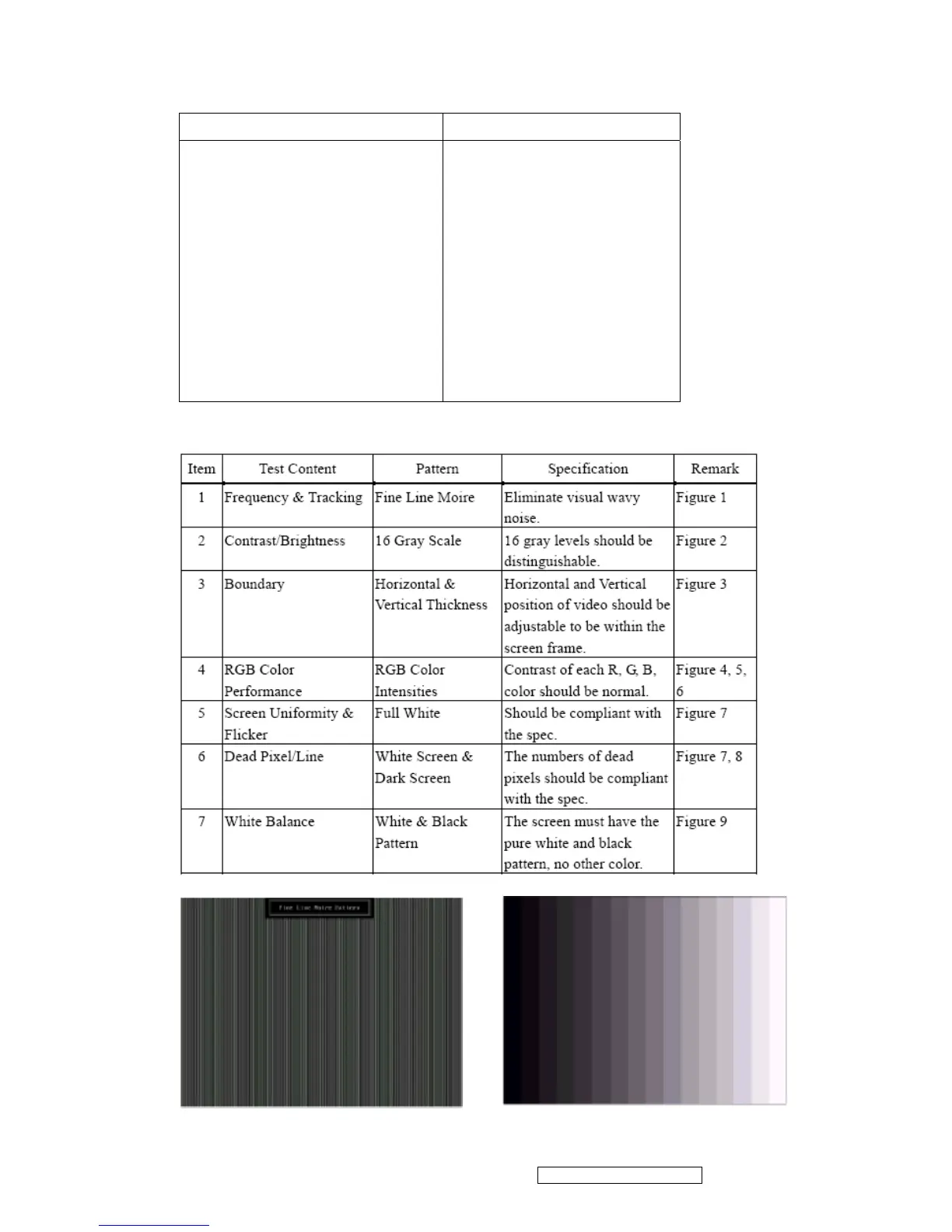

1.4.2 Function Test Display Pattern
Fine Line Morie Pattern (Figure1) Gray Scale Pattern (Figure2)
