3. DDC Key In Procedure
Note:
1. Every time after replacing the main board, you have to do the DDC key in.
2. If you find the DDC does not conform to the monitor, you have to do the DDC key in.
3.1 Equipment Needed
- VX2235WM3 Series Monitor
- DDC Card
- PC
- RS232 cable
- DVI-DVI Cable
- Barcode Reader
- VGA Cable

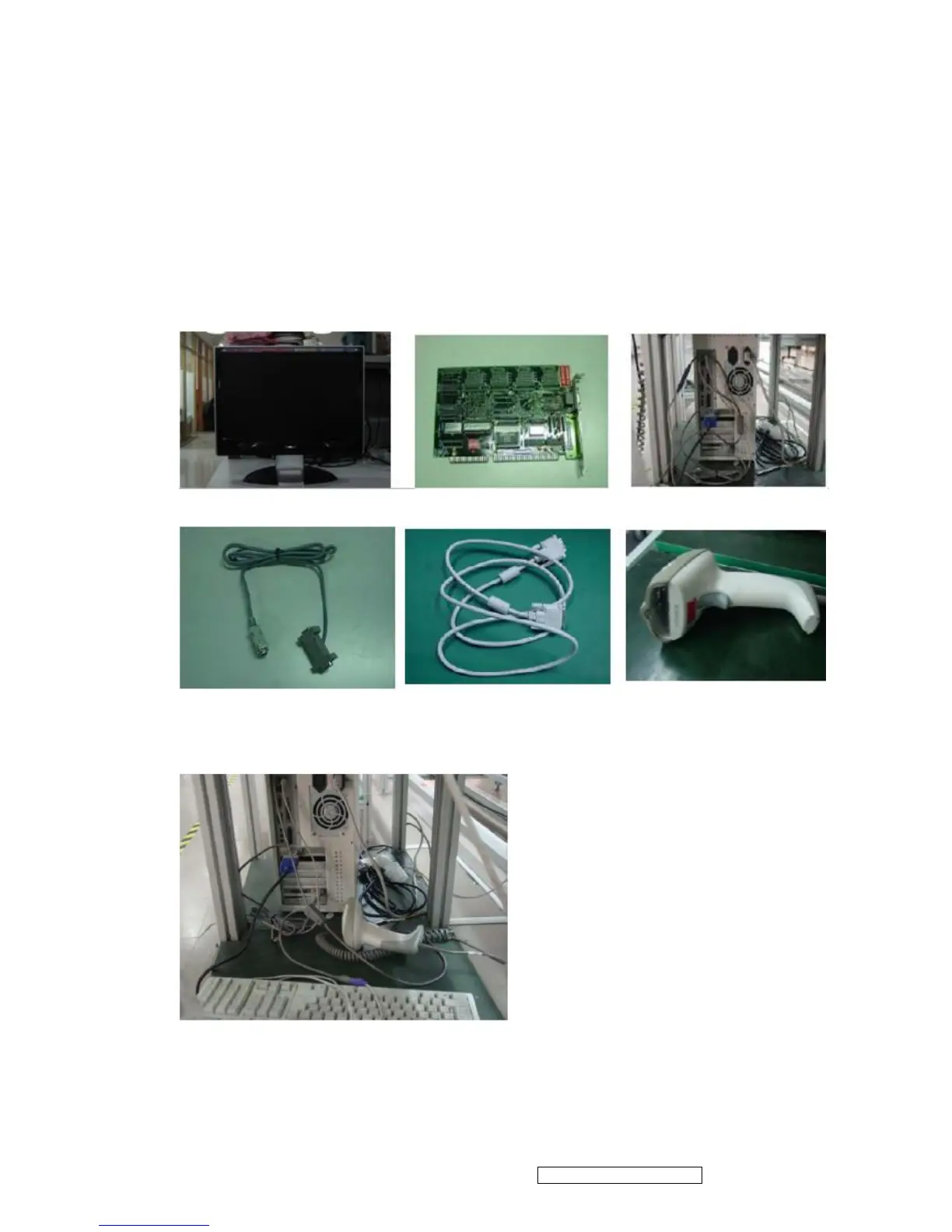

VX2235WM3 DDC Card PC
RS232 cable VGA cable BAR code reader
3.2 Setup Procedure
1.Connect VGA Card and DDC Card with RS-232 cable.
2.Barcode Reader connect with keyboard and PC keyboard port.
3.Connect RS-232 Cable and VX2235WM3 with VGA Cable.
4.(when key in DVI DDC information, use VGA transform to DVI port )
5.Connect Power Cord to VX2235WM3 Monitor.
