3.2 Setup Procedure
3.2.1 Connect P2 and monitor of Fixture with VGA ports of Monitor (TSUM Series) by
VGA Cable.
3.2.2 Connect P1 of Fixture with Printer port of PC by LPT Cable.
3.2.3 Plug Power Adapter to Fixture.
3.2.4 Connect Power Cord to Monitor (TSUM Series).
3.2.5 Connect PC to the additional monitor.
3.3 DDC Key In Procedure
Sep1.Select and execute DDC Key In program

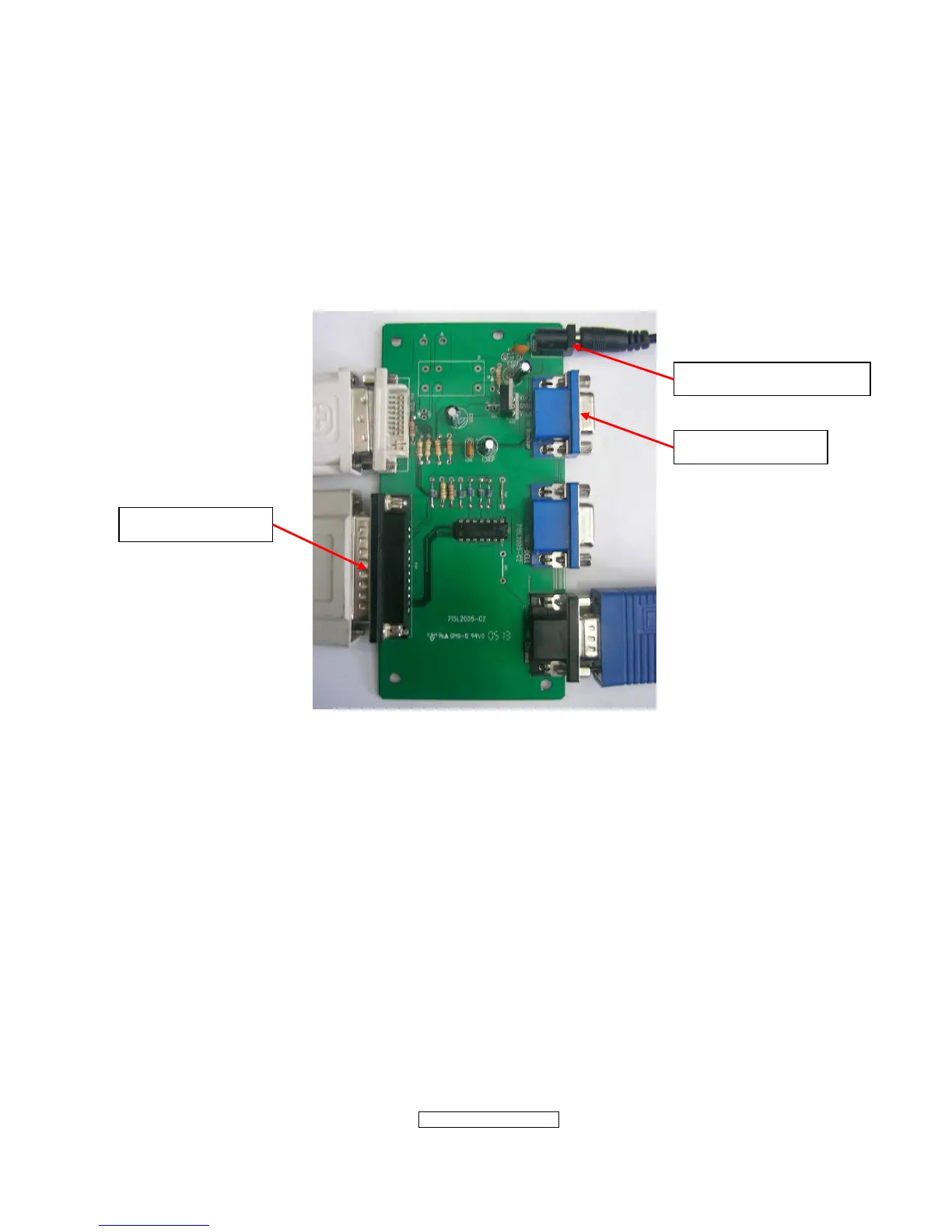

JP1： Power Adapter
P2： VGA Cable
P1：to LTP Cable
