ViewSonic XG340C-2K User Manual

10
Inial Setup
This secon provides detailed instrucons for seng up your monitor.

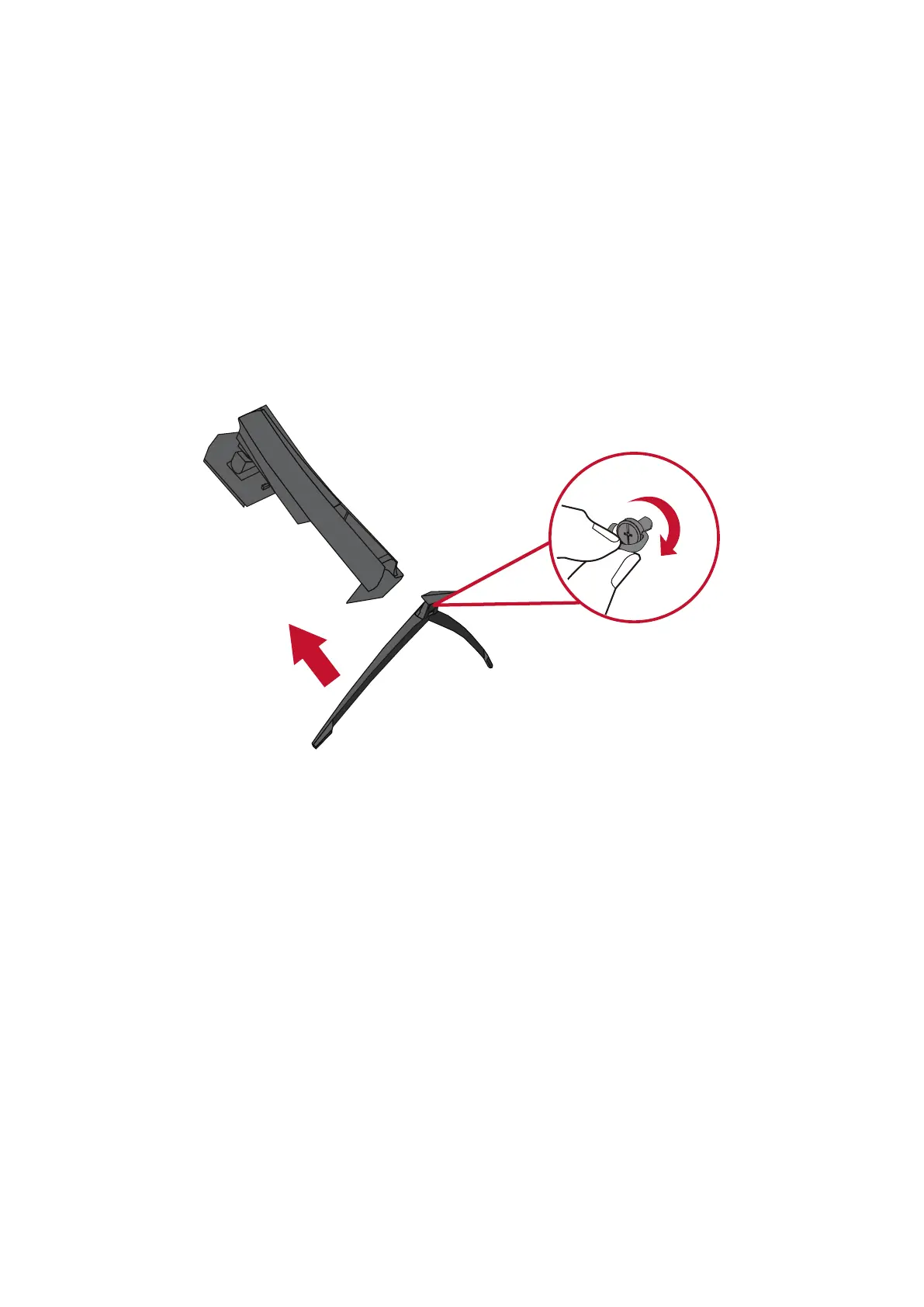

Installing the Stand
1. Place the monitor on a at, stable surface with the screen facing down.
2. Align and connect the two (2) points on the monitor stand’s base with the
monitor stand’s neck.
3. Use the captured screw in the monitor stand’s base and secure it to the monitor
stand’s neck.

ViewSonic XG340C-2K Specifications

General

Panel type	VA
Color gamut	90 %
Pixel pitch	0.232 x 0.232 mm
Display diagonal	34 \
Display technology	-
Native aspect ratio	21:9
Maximum refresh rate	180 Hz
NTSC coverage (typical)	85 %
Screen curvature rating	1000R
sRGB coverage (typical)	120 %
Contrast ratio (dynamic)	120000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Digital vertical frequency	48 - 165 Hz
Digital horizontal frequency	30 - 255 kHz
Display brightness (typical)	550 cd/m²
Certification	cTUVus, FCC-B, ICES003, CEC, TUV S-Mark, RoHS, REACH, WEEE
Product color	Black
Market positioning	Gaming
Cables included	AC, DisplayPort, HDMI, USB
Quick start guide	Yes
Package type	Box
Package depth	282 mm
Package width	940 mm
Package height	685 mm
Package weight	14200 g
Pivot angle	0 - 25 °
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90 %
Power consumption (max)	152 W
Power consumption (typical)	100 W
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
USB Type-A downstream ports quantity	3
Number of USB Type-B upstream ports quantity	1

Weight and Dimensions

Depth (with stand)	383 mm
Width (with stand)	795 mm
Height (with stand)	601 mm
Weight (with stand)	9500 g
Depth (without stand)	150 mm
Height (without stand)	370 mm
Weight (without stand)	6600 g
