ViewSonic XG340C-2K User Manual

63
KVM
The KVM funcon allows the user to control two computers connected to the same
monitor from a single keyboard and mouse.
NOTE: Only applicable in PBP (Picture-by-Picture) and PIP (Picture-in-Picture)
mode.

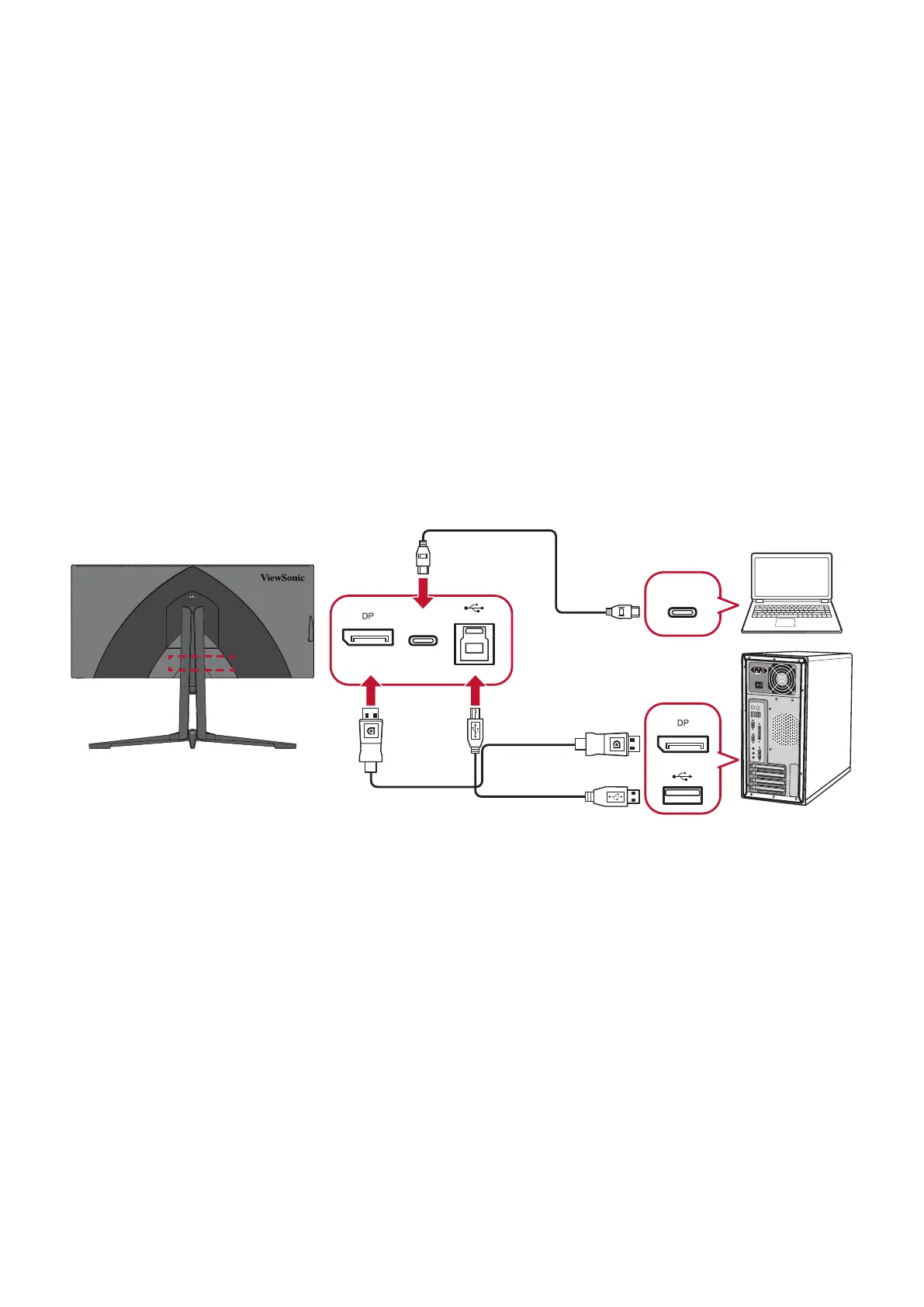

To connect the two computers to the monitor:
1. Connect one end of the USB Type C cable to the USB Type C port of the monitor.
Then connect the other end of the cable to the USB Type C port of the notebook.
2. Connect one end of a DisplayPort cable to the DisplayPort of the monitor. Then
connect the other end of the cable to the DisplayPort or mini DP of the computer.
3. Connect the USB Type B male cable (square with 2 cut corners) to the USB Type B
port of the monitor. Then connect the other end of the cable to the USB port of
the computer.
Type-C
Type-C
NOTE:
• To have a beer online gaming experience, and achieve maximum refresh
rates, please use a PC to play.
• Using Type C will have a power charging funcon, therefore the graphics
card will slow down and downscale the refresh rate to have beer
performance.

ViewSonic XG340C-2K Specifications

General

Panel type	VA
Color gamut	90 %
Pixel pitch	0.232 x 0.232 mm
Display diagonal	34 \
Display technology	-
Native aspect ratio	21:9
Maximum refresh rate	180 Hz
NTSC coverage (typical)	85 %
Screen curvature rating	1000R
sRGB coverage (typical)	120 %
Contrast ratio (dynamic)	120000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Digital vertical frequency	48 - 165 Hz
Digital horizontal frequency	30 - 255 kHz
Display brightness (typical)	550 cd/m²
Certification	cTUVus, FCC-B, ICES003, CEC, TUV S-Mark, RoHS, REACH, WEEE
Product color	Black
Market positioning	Gaming
Cables included	AC, DisplayPort, HDMI, USB
Quick start guide	Yes
Package type	Box
Package depth	282 mm
Package width	940 mm
Package height	685 mm
Package weight	14200 g
Pivot angle	0 - 25 °
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90 %
Power consumption (max)	152 W
Power consumption (typical)	100 W
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
USB Type-A downstream ports quantity	3
Number of USB Type-B upstream ports quantity	1

Weight and Dimensions

Depth (with stand)	383 mm
Width (with stand)	795 mm
Height (with stand)	601 mm
Weight (with stand)	9500 g
Depth (without stand)	150 mm
Height (without stand)	370 mm
Weight (without stand)	6600 g
