ViewZ VZ-43UHD User Manual

29User Manual Visit the ViewZ USA website at https://www.viewzusa.com
TXD
GND
RXD

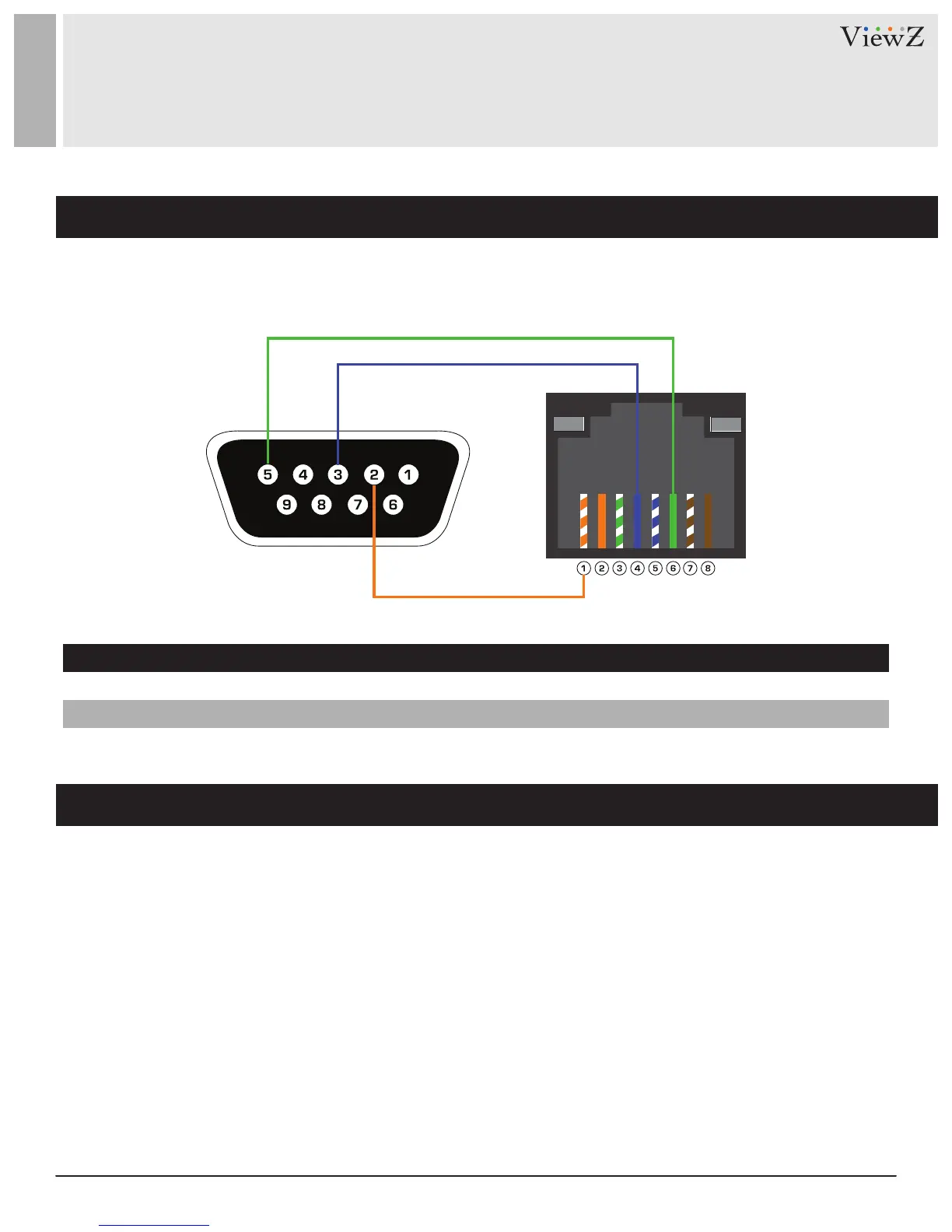

The following image is the descripon of RJ45 PIN MAP
PIN MAP
POWER On/Off RS 232 Communication Command & Relevant Configurations
RS232 (RJ-45) PIN ASSIGNMENT
RXD (Received Data)
TXD (Transmied Data)
GND (Groud)
2
3
5
1
4
6
RS232 (DP9) RJ45
• RS 232 communicaon sengs
Baud rate : 9600 bps
Parity check bit : none
Data bit : 8 bits
Stop bit : 8 bits
• POWER ON/OFF RS232 communicaon command
POWER ON - RS232 command: 0 x 69 0 x D0 0 x C6
POWER OFF - RS232 command: 0 x E5 0 x FD 0 x 20 0 x 71 0 x 8C
The above commands are hexadecimal.
In consideraon of secondary development of centralized control circumstances, the POWER ON/OFF funcon of RS232
communicaon command & relevant conguraon setup are described as follow:
