Choose one option
+60 Start up of discharge fan for 60 s (recommended to use with
heating phase)
ON Switch on
Cancel display driver
Change indicated figure
Select „+60“ new graphic drive will appear. Running time of
discharge fan is located in the left upper corner od the display.
+60
You can add extra 60 s - maximum 300 s
ON
Switch on
0
Discharge fan turn-off
▲
Change indicated figure
+60 Môžete pridať ďalších 60 s - maximálne do 300 s
6.1.5. Boiler shut down (automatic)
7. VIGAS
Lambda Control
BOILER IN CONFIGURATION
WITH DISCHARGE FAN
Boiler VIGAS
Lambda Control
operates with information about oxygen overflow in exhaust gas received from
lambda sensor to control the flap of primary and secondary air. This system allows to burn all kinds of
wood more efficiently and at the same time decrease the fuel consumption by 20-25 %.
7.1 VIGAS
Lambda Control
BOILER CONTROL

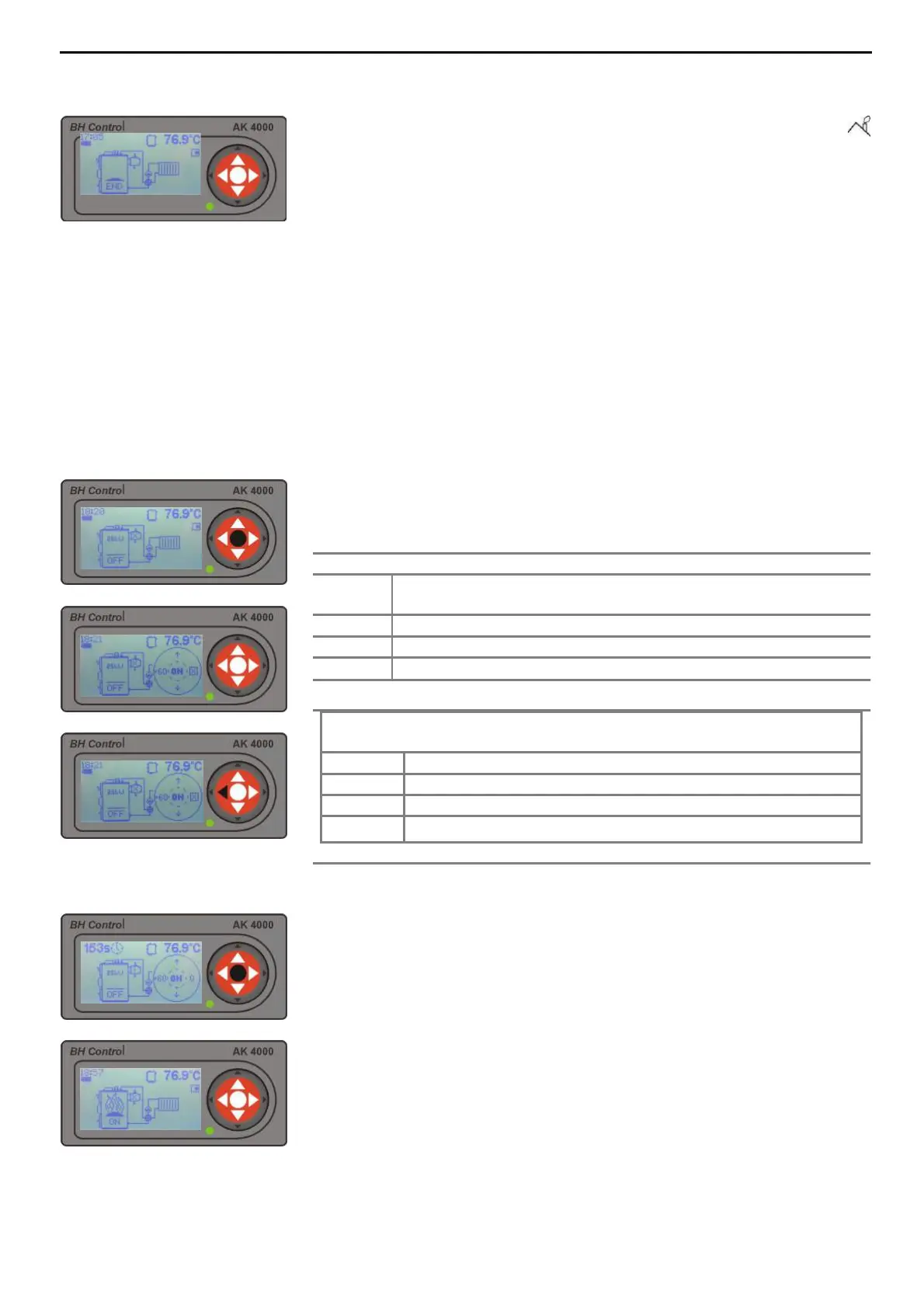

7.1.1 Boiler activation
7.1.2 Boiler activated – heating phase
14
If the boiler is in switched-off phase, with symbol „OFF“ on the display,
to retrieve start, press short middle button „ENTER“.
By pressing „ON“ button servo-controleed flap will move to open
position (servo 100 %). Consequently with next steps (from 100 % up
to 45 %) pohybuje tak, aby sa hodnota lambdy udržala blízko
nastavenej hodnoty ( 1,35). flap is moved to retain value of lambda
sensor ( 1,35). In position (servo 45%) secondary air is closed, in
position (0 %) primary air is also closed. The flap will move to position
0% only when boile is „OFF“ or „END“ phase.
In heating phase boiler gas exhaust temperature is lower then set up
minimum exhaust gas temperature. Minimum and maximum
temperature can be modified in boiler parameters set up. Minimum
standard exhaust gas temperature is set up to 50 °C and maximum set
up temperature is at 220 °C. The pump works in pulsating wave
during flame up, depending on the boiler the water temperature.
When exhaust gas temperature drops under the set up temperature (
end), the boiler is automatically switched-off. Sign „END“ will be indicated
on the display. By pressing 2 times button „ENTER“ boiler will start
working again.
