VIGAS 40 Lambda Control - Installation Instruction

Gasifying boiler VIGAS
19. INSTALLATION INSTRUCTION
31

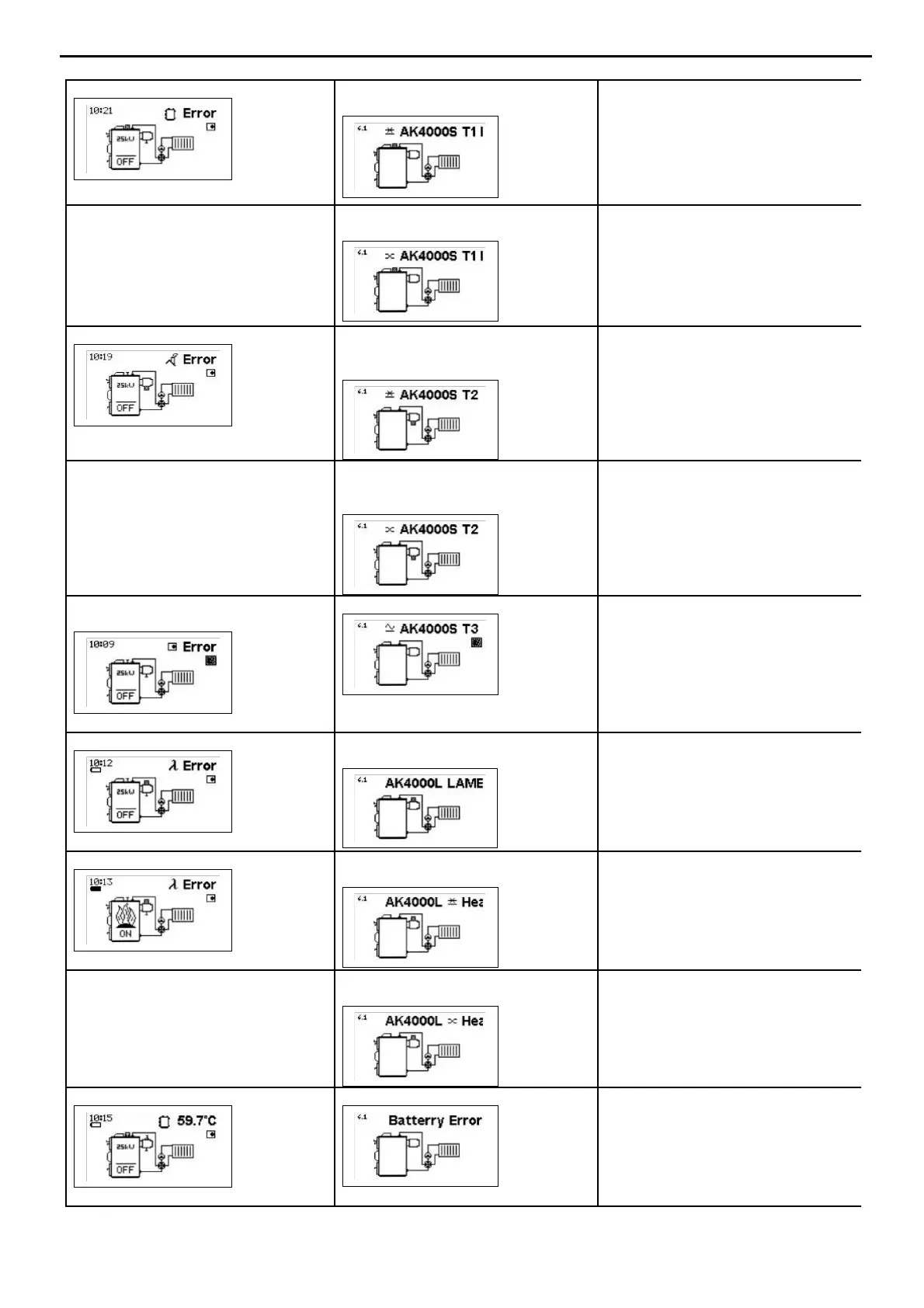

Boiler temperature reading error
Red LED control indicating
Disconnected boiler thermometer
AK4000D T1 KTY
 Disconnected thermomenter -
check thermometer
 Damaged thermometer
-replacement required
Boiler thermometer in short circuit
AK4000D T1 KTY
 Damaged thermometer –
replacement required
 Short circuit in connection place
of thermometer - revise
Exhaust gas temperature error
Red LED control indicating
Boiler exhaust gas thermometer
disconnected
AK4000D T2 KTY
 Disconnected chimney
thermometer – check
thermometer
 Damaged chimney
thermometer – replacement
required.
Exhaust gas thermometer short
circuit
AK4000D T2 KTY
 Damaged chimney
thermometer – replacement
required
 Short circuit in connection area
- revise.
Evaluation error of indoor
thermostat
Red LED control indicating
Reading indoor thermostat error  Indoor thermostat signal
disturbance caused by
induction of simultaneous
power supply.
Evaluation error of lambda sensor
Red LED control indicating
Communication error of AK4000L
LAMBDA COM
 Damaged AK4000L modul.
Evaluation error of lambda sensor
Red LED control indicating
Disconnected A-supply of lambda
sensor
 Wire disfunction
 Lambda sensor error
Short circuit of A-supply for lambda
sensor
 Aborted heating LS
 Aborted power line k LS
Baterry status
Red LED control indicating
Discharged batteries  Replace baterries
