4. VIGAS BOILER IN BASIC CONFIGURATION
The advantage of exhaust gas thermometer is control of maximum exhaust gas temperature and when
reached by boiler, fan will lower engine RPM. This results in higher boiler effectivity and lower fuel
consumption. If installed with accumulator tank, thermometer will shut down boiler when fuel is burned
down. The water temperature inside boiler and accumulator tank has no influence on boiler shut down.

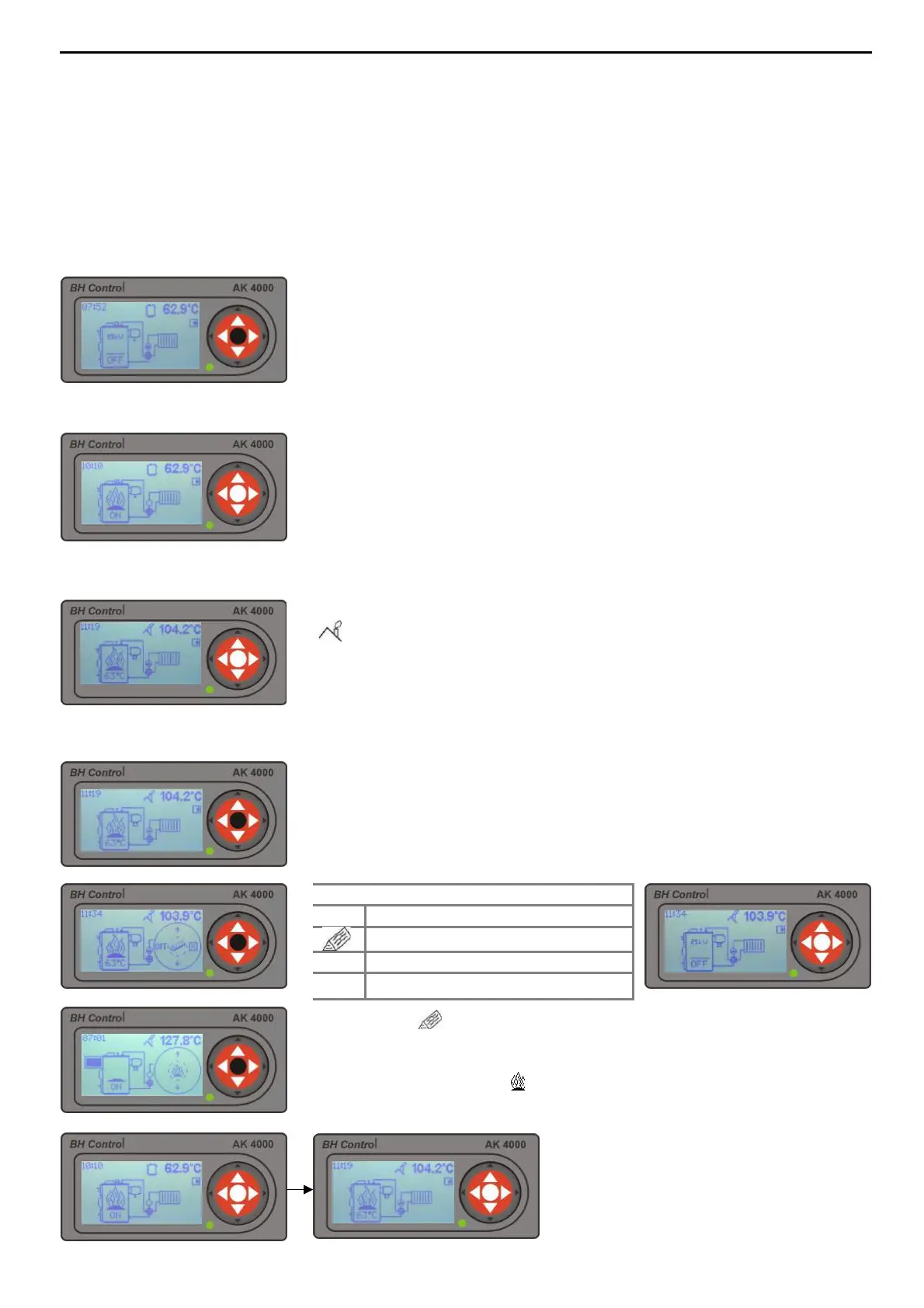

4.1 VIGAS BOILER CONTROL
4.1.1 Boiler activation
4.1.2 Boiler active – heating phase
4.1.3 Boiler active – burning phase
4.1.4 Add fuel, boiler switch - off (manual control)
10
By pressing „ “ fan will be switched off. Using the rod open chimney
flap, consequently open the upper door. You can add fuel if necessary.
After done with reloading close the upper door and chimney flap
(pic.12.4). By pressing „ “ fuel addition will be ended. Fan will be
switched on automatically.
In heating phase boiler gas exhaust temperature is lower then set up
minimum exhaust gas temperature. Minimum and maximum temperature
can be modified in boiler parameters set up. Minimum standard exhaust
gas temperature is set up to 50 °C and maximum set up temperature is
at 220 °C. The pump works in pulsating wave during flame up,
depending on the boiler water temperature.
If the boiler is in switch-off phase, with symbol „OFF“ on the display, to
retrieve start press short middle button „ENTER“.
The burning phase is active, when the exhaust gas temperature is
( end) +20 °C. The pump works in pulsating wave in this phase. If
pump symbol is flashing, pump works. Boiler is responsive to the indoor
thermostat, when indoor thermostat is switched off, boiler output is slowly
reduced.
Choose one option
OFF Switch off
Add boiler
Cancel display driver
▲
Change indicated figure
Graphic control is used for this operation. To activate display driver press
short middle button „ENTER“. Graphic control offers option to: switch-off
boiler, add fuel or cancel display driver.
