Gasifying boiler Vigas

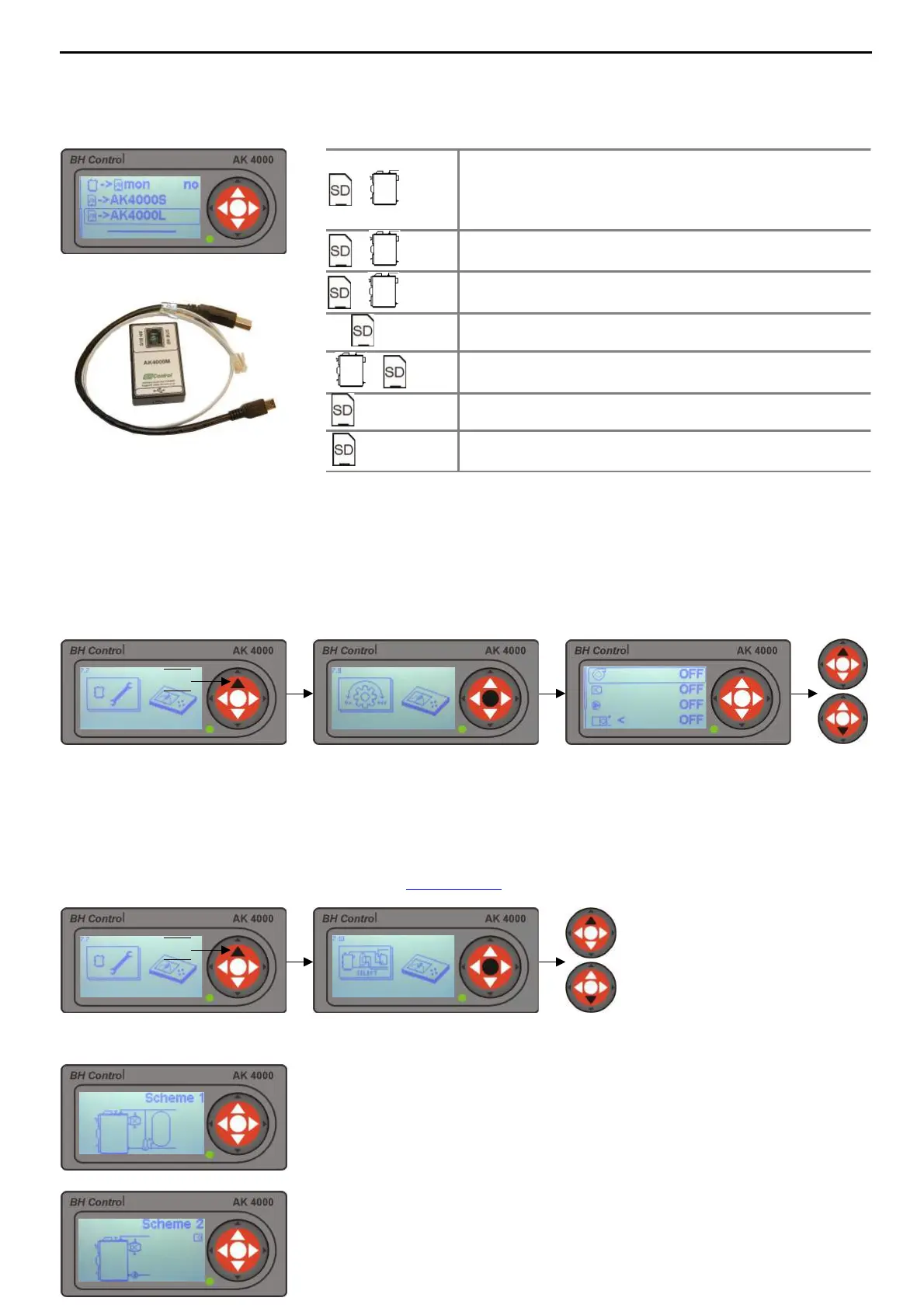

13.3 FUNCTION SERVICE CONTROL
13.4 HYDRAULIC SCHEME BOILER SETTING
13.4.1 BASIC CONNECTION SCHEMES
20
By changing hydraulic scheme connection will be changed also control of pump output and boiler configuration.
Therefore, it is very important that software setting of hydraulic schema is identical with existing boiler installation in
central heating system. In the basic memory of control unit are 4 basic schemas and schemas intended for operating
with Expander AK4000E. On demand, it is possible to add Expander schemas via AK4000M modul (pic.8). Updated
schemas for Expander AK4000E can be found on www.vigas.eu
obr.8
config
To load new configuration (connection schema).
Mainly used for systems controlled by EXPANDER
AK4000E, where it is possible to load personal
connection schema.
config
Actual configuration back-up. It is used for boiler
monitoring. It is advised to perform before monitoring.
firmware
To load firmware (boiler operating software).
Erase
To delete information from modul AK4000M.
mon
Boiler monitoring, to file basic information of the boiler
into memory modul.
AK4000S
To load firmware in to the power board AK4000S.
AK4000L
To load firmware into the lambda power board
AK4000.
In service settings can be checked function of each boiler components according to the symbols indicated
on the display. By selecting component and pressing „ENTER“ button function will be activated. Displayed
components depend on the boiler configuration.
2x
3x
Using ▲ buttons,
choose required scheme
and press „ENTER“.
Schema 1 is designed for boiler with accumulators tank. „LADOMAT“
provides reverse water protection. Pump is connected to the boiler control
and works continuously at temperature over 40°. Requested temperature
is possible to set up to 85° (chap.13.1.4). T3 input on power board
AK4000S is used to connect thermometer KTY to measure temperature in
accumulator.
Attention: Schema 1 does not allow to connect T3 – indoor thermostat!
Schema 2 is designed for central heating systems, where reverse water
protection provides external control system. Pump is connected to the
boiler control unit and works in pulsating wave depending on the boiler
water temperature. T3 contact on power board AK4000S is used to
connect indoor thermostat.
