! TECHNICAL TIP: Before completing the installation procedure;
• Openandclosethegatemanually,makingsurethereissufcientspacebetweenthegate
and adjacent walls.
• Check that the wheels are turning freely on the track and there are no restrictions while
pushing the gate to the open and closed positions.
• Conrmthatthereisadequatespacingfortheguiderollersandthatthereareno
restrictions throughout the travel of the gate.
GATE OPERATOR INSTALLATION
STEP 2

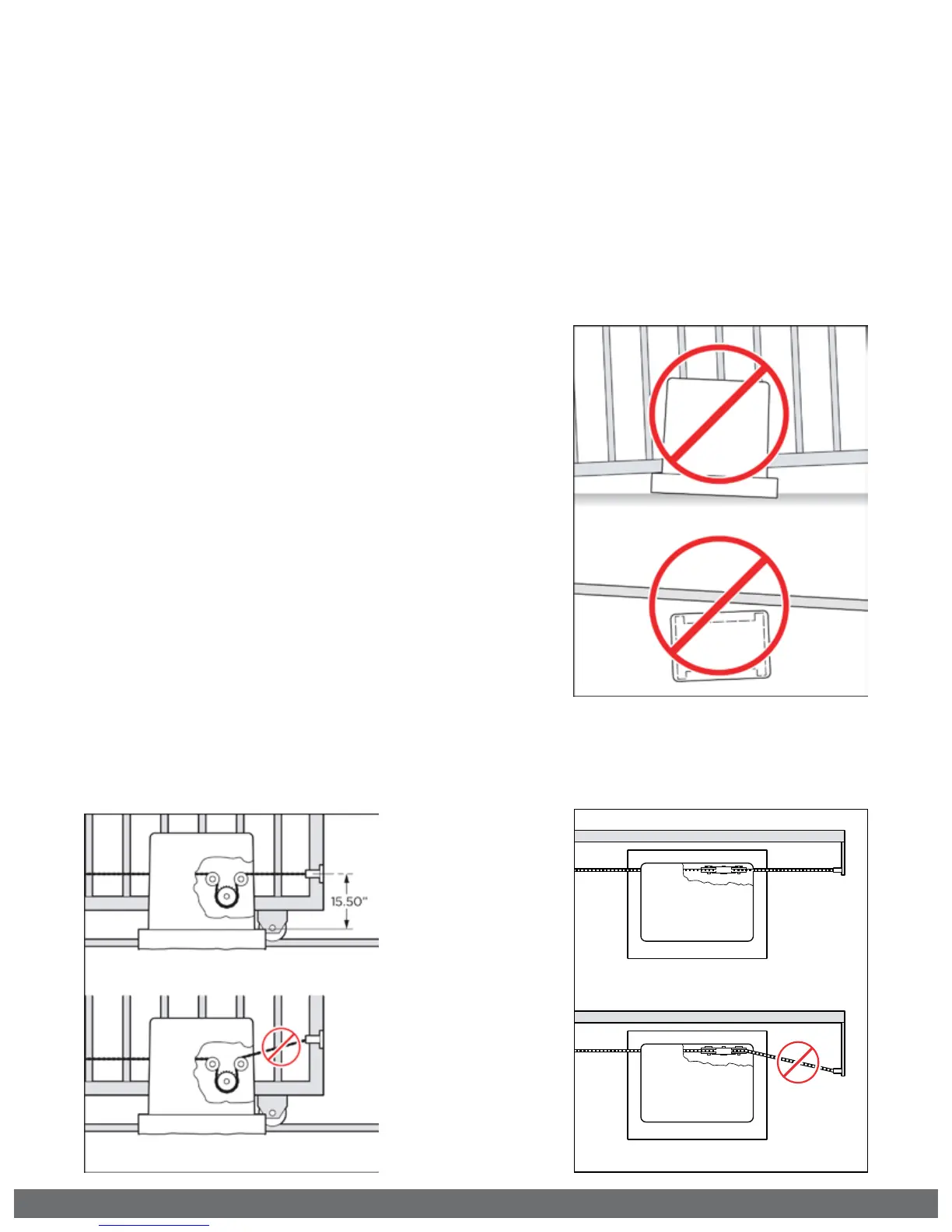

Chain Installation: Before welding the provided
chain brackets, make sure the chain will be in
a straight line with, and at the same height as,
the chain leaving the gate operator rollers.
STEP 1
Before securing the chassis to the concrete pad
or posts, make sure the gate and operator are
LEVEL and PARALLEL.
Minimum distance between the center of the
chain and the inside edge of the gate frame is 3”.
