SECTION TSM 144.1 ISSUE B PAGE 5 OF 10

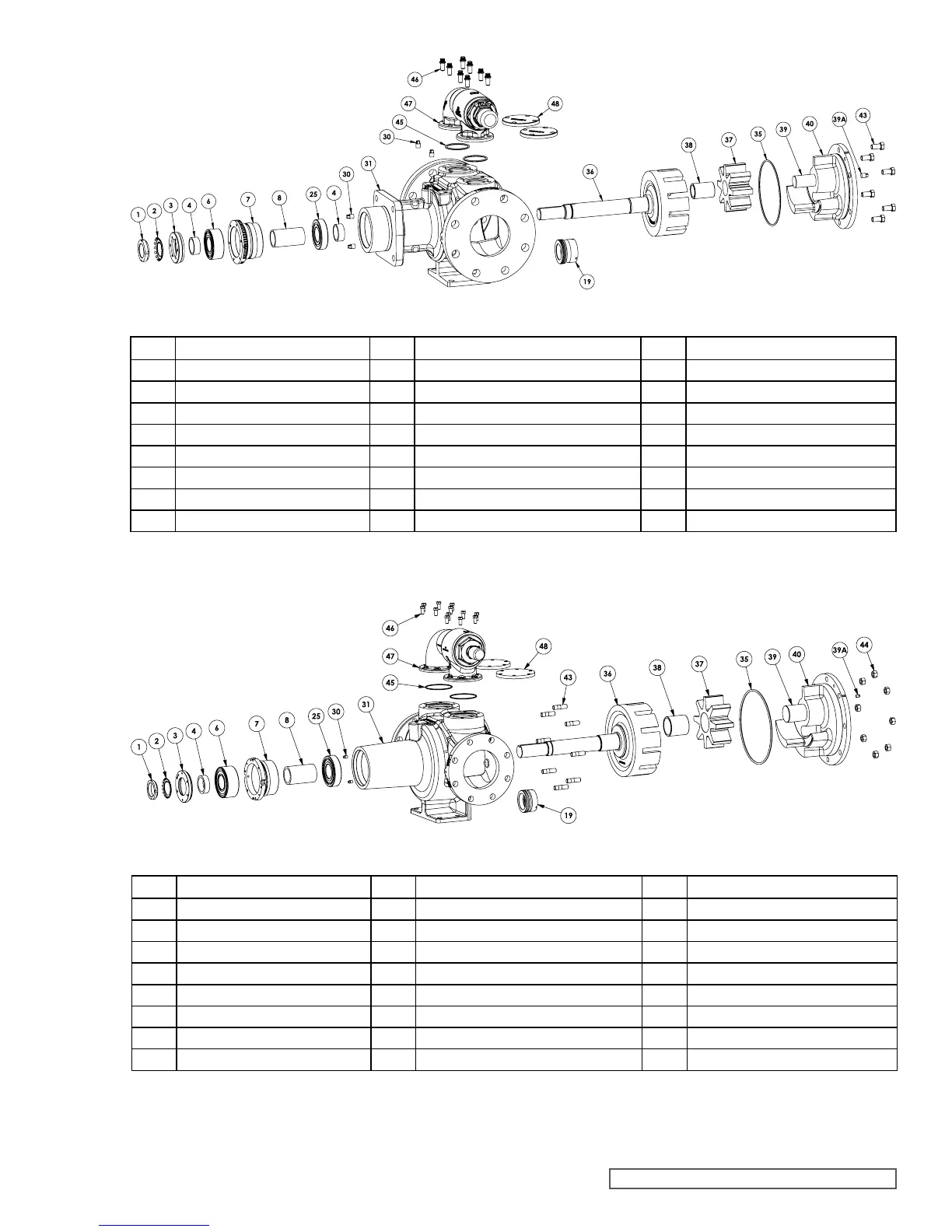

FIGURE 4 - EXPLODED VIEW FOR MODELS KE, KKE, LQE, LSE 4195
ITEM NAME OF PART ITEM NAME OF PART ITEM NAME OF PART
1 Locknut 25 Ball Bearing (Inner) 40 Head and Idler Pin Assembly
2 Lockwasher 31 Casing 43 Capscrews for Head
3 End Cap for Bearing Housing 35 Head O-Ring 45 Relief Valve O-Rings
4 Bearing Spacer Collar 36 Rotor and Shaft Assembly 46 Capscrews for Relief Valve
6 Ball Bearing (Outer) 37 Idler and Bushing Assembly 47 Relief Valve
7 Bearing Housing 38 Idler Bushing 48 Relief Valve Covers
8 Bearing Spacer 39 Idler Pin
19 Mechanical Seal 39A Pipe Plug
ITEM NAME OF PART ITEM NAME OF PART ITEM NAME OF PART
1 Locknut 25 Ball Bearing (Inner) 40 Head and Idler Pin Assembly
2 Lockwasher 31 Casing 43 Studs for Head
3 End Cap for Bearing Housing 35 Head O-Ring 44 Nuts for Head
4 Bearing Spacer Collar 36 Rotor and Shaft Assembly 45 Relief Valve O-Rings
6 Ball Bearing (Outer) 37 Idler and Bushing Assembly 46 Capscrews for Relief Valve
7 Bearing Housing 38 Idler Bushing 47 Relief Valve
8 Bearing Spacer 39 Idler Pin 48 Relief Valve Covers
19 Mechanical Seal 39A Pipe Plug
FIGURE 5 - EXPLODED VIEW FOR MODELS Q AND QS 4195
