SECTION TSM 144.1 ISSUE B PAGE 4 OF 10

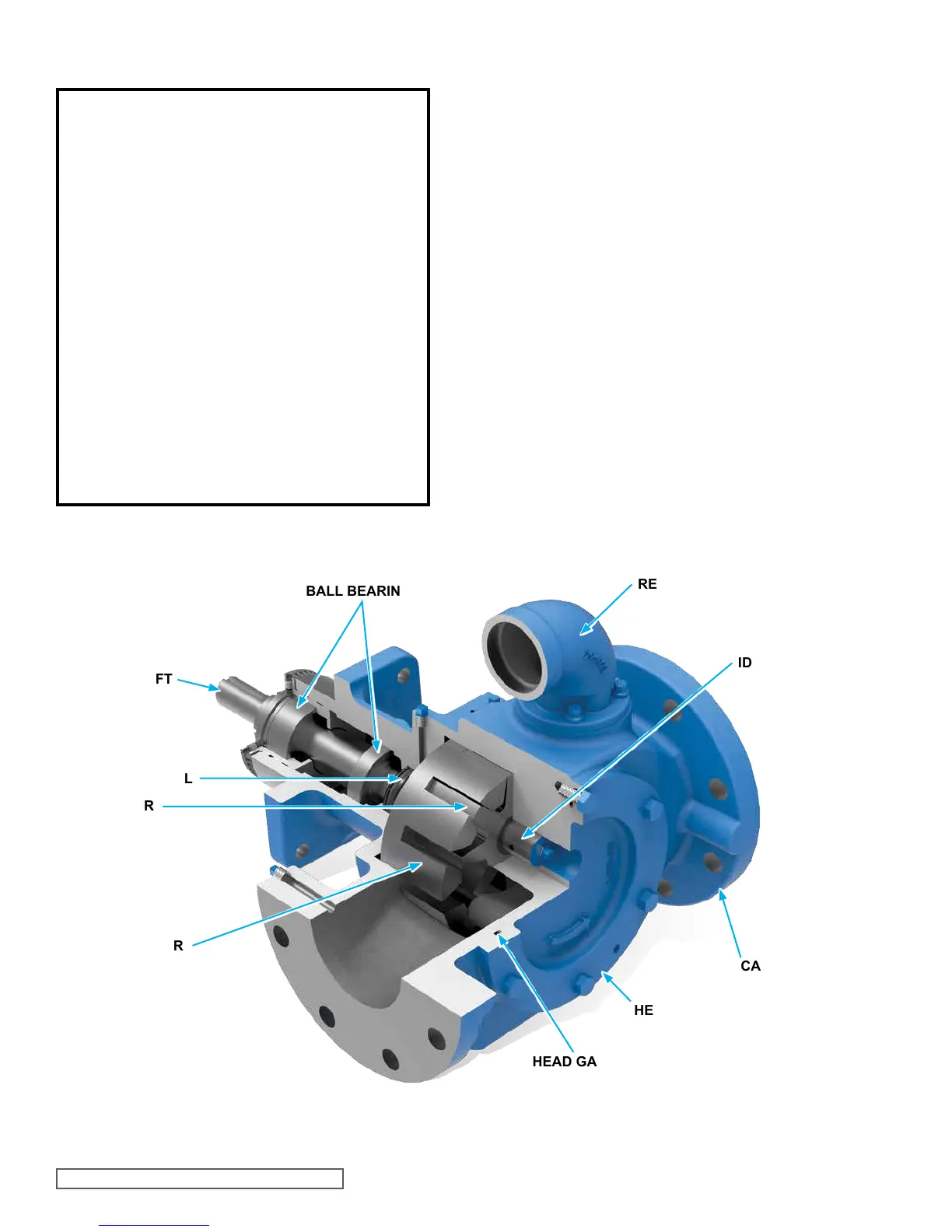

FIGURE 3
CUTAWAY FOR MODELS KE, KKE, LQE, & LSE 4195
DISASSEMBLY
1. Refer to Figures 4 & 5 for model to be disassembled and
name of parts. All 4195 models referenced in this TSM
are disassembled and assembled in the same manner.
2. Mark the head and casing before disassembly to insure
proper reassembly.
3. Remove the head capscrews.
4. Tilt the top of the head back when removing to prevent
the idler from falling off the idler pin.
5. Remove the idler and bushing assembly. If the idler
bushing needs replacing, see “Installation of Carbon
Graphite Bushings,” page 8.
6. Insert a brass bar or piece of hardwood in the port
opening and between the rotor teeth to keep the shaft
from turning. Turn the locknut counterclockwise and
remove locknut. See Figure 6 or 7, page 6.
7. Bend up tang of lockwasher and with a spanner wrench
remove locknut and lockwasher from shaft. See Figure
6 or 7, page 6.
8. Loosen the two setscrews in the face of the bearing
housing and turn the thrust bearing assembly
counterclockwise and remove from casing. See Figure
6 or 7, page 6.
9. Remove the bearing spacer from the shaft.
10. Remove the brass bar or piece of hardwood from the
port opening.
DANGER !
Before opening any Viking pump liquid chamber
(pumping chamber, reservoir, relief valve
adjusting cap fitting, etc.) Be sure:
1. That any pressure in the chamber has been
completely vented through the suction or
discharge lines or other appropriate openings
or connections.
2. That the driving means (motor, turbine,
engine, etc.) has been “locked out” or made
non-operational so that it cannot be started
while work is being done on pump.
3. That you know what liquid the pump has been
handling and the precautions necessary to
safely handle the liquid. Obtain a material
safety data sheet (MSDS) for the liquid to be
sure these precautions are understood.
Failure to follow above listed precautionary
measures may result in serious injury or death.
SHAFT
ROTOR
IDLER
HEAD
CASING
IDLER PIN
RELIEF VALVE
HEAD GASKET
MECHANICAL SEAL
BALL BEARINGS
