6

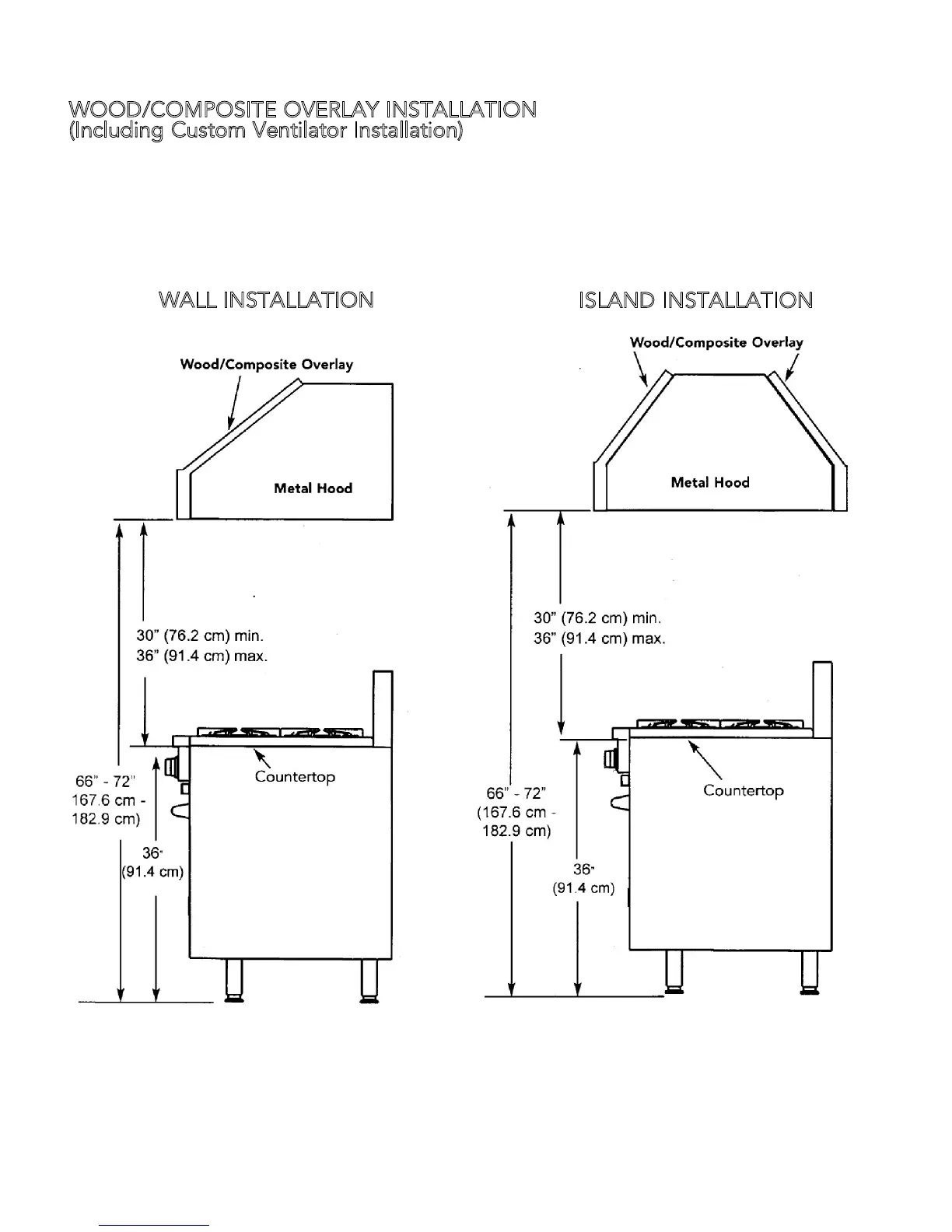

WOOD/COMPOSITE OVERLAY INSTALLATION
(Including Custom Ventilator Installation)
The bottom of a standard hood should be 30” (76.2 cm) min. to 36” (91.4 cm) max. above the countertop. This
would typically result in the bottom of the hood being 66” (167.6 cm) to 72” (182.9 cm) above the floor. Refer to
the rangehood installation instructions for additional information. These dimensions provide for safe and efficient
operation of the hood.
ISLAND INSTALLATION
WALL INSTALLATION
