Fail Safe:
By moving the Brake Handle to the
Released positon:
The gate can be moved manually
with a relatively low amount of
force during a power failure
Fail Secure:
By moving the Brake Lever to the
Engaged postion:
The gate can not be moved during
a power failure.
SPECIAL FEATURESSPECIAL FEATURES
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min.MAX
Overlap Delay
1.5
0
3
Radio Station
Loop Connector Open Commands Guard Station
Master/Slave
GND Close Stop Open GND Close Stop Open Gnd Fire Gnd Strike Gnd Exit Gnd Center Gnd Reopen Gnd UL Gnd +28v Gnd Radio Gnd +28v +28v
Mag.
Lock
Fail Safe/Secure
Mag. Lock
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
CloseOpen
LimitLimit
30sec
60secoff
1sec
Radio
Rec.
UL
Sensor
Safety
Loop
Center
Loop
Brake
UL
Siren
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Mag.
Lock
Fail
Safe/Secure
Hold Open
Timer
Stop
Close Open
30
60
Off
1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Brake in Released
Position
Brake
Engaged
Brake
Released
Brake
Engaged
Brake
Released
Brake in Engaged
Position
1

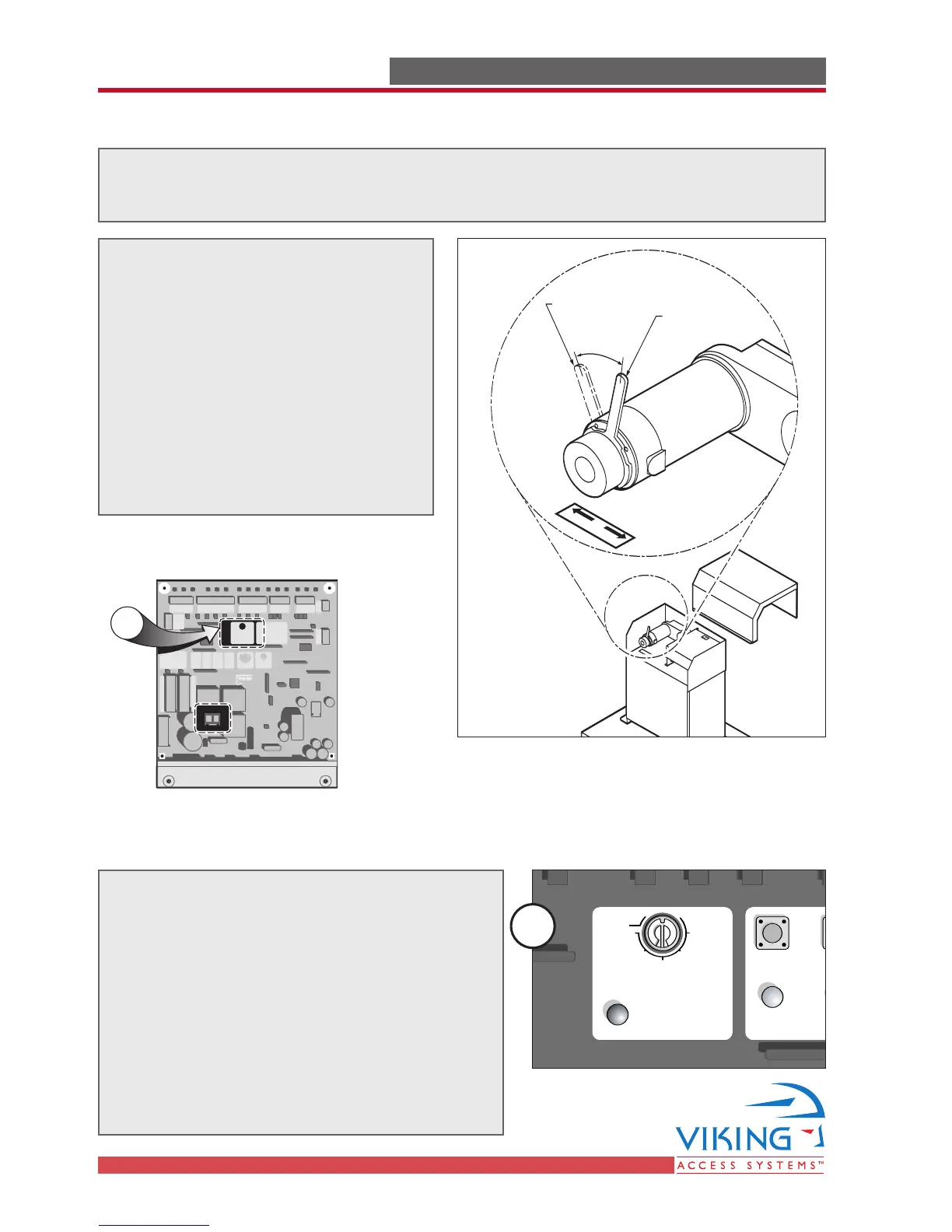

The gate operator contains a unique design that allows the user to move the gate
manually in case of power failure.
1
Fail Safe/Fail Secure Operation
Hold Open Timer
Connection Location
The Hold Open Timer function holds the gate at
the open position for a predetermined amount
of time, prior to closing automatically.
Set the Timer to the desired time, from 1 to
60 seconds.
If this feature is not needed, turn the Trim
Pot clockwise to the “off” position.
Note: The Hold Open Timer affects the “radio
receiver command” and the sequence of
operation for the gate (see page 24).
