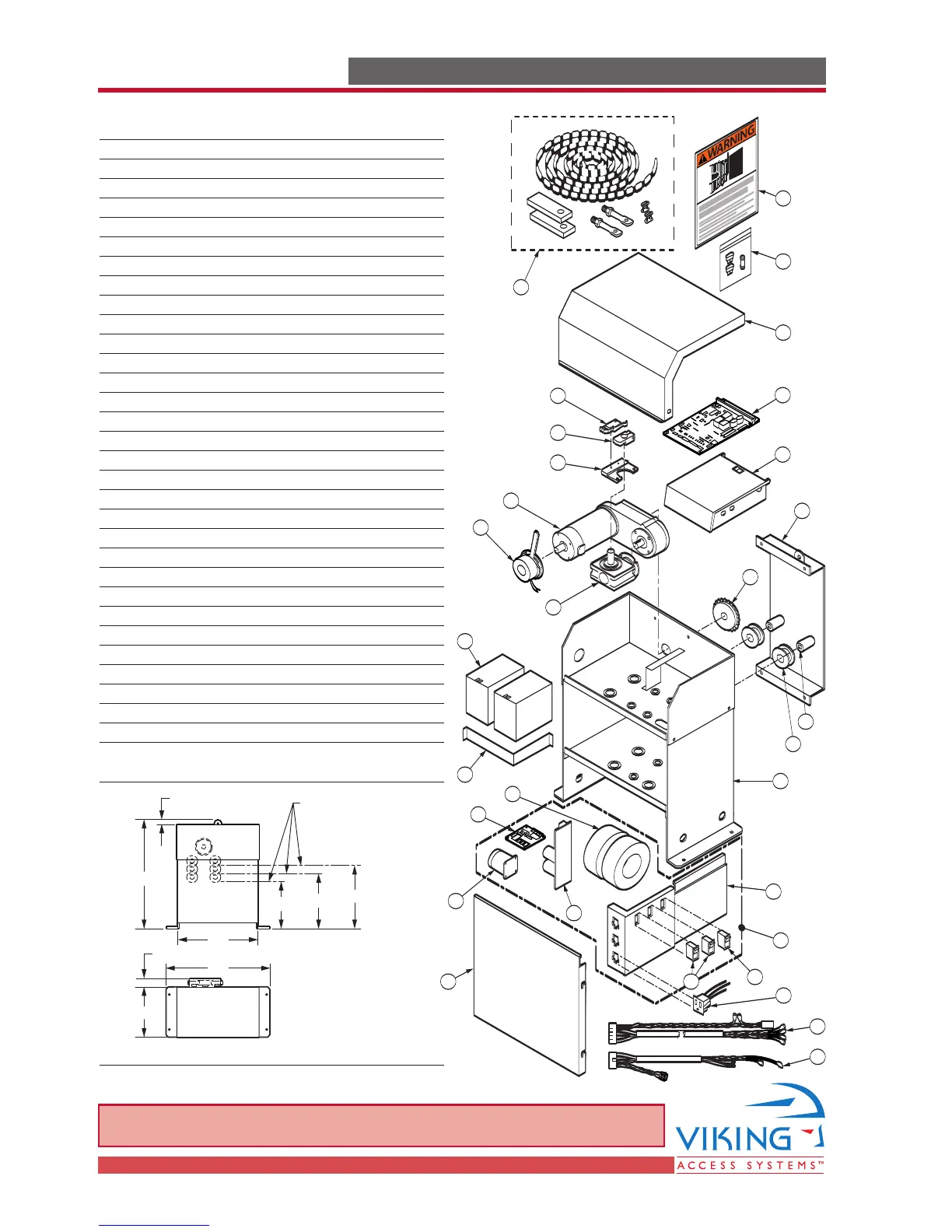

Viking Q-4 - Parts Diagram

1
2
23
28
7
8
6
5
9
10
11
12
4
25
29
20
19
22
3
18
24
16
21
26
27
15
13
31
17
30
14
Item Description Part No.
1 Main Chassis VAQ4CH10
2 Chassis Top Cover VAQ4CTC10
3 Chassis Front Cover VAQ4CFC10
4 Chain Guard VAQ4CHGA10
5 Q4 Motor VAQ4MO
6 Motor Brake Q4MOB10
7 Limit Switch (2) DULS10
8 Limit Switch Cam L3LC10
9 Limit Switch Holder L3LH10
10 Limit Switch Gear Box DULSG
11 Electric Box DUEB10
12 Control Board DUPCB10-Q4
13 Q4 Battery DUBAQ4
14 Q4 Modular Power Supply Q4MPS10
15 Transformer 15amp DUTT15
16 Power Supply Q4PSH10
17 EMI Board Q4EMI
18 Alarm DUAL10
19 Limit Switch Harness Q4LSH
20 Power Harness Q4POH10
21 Power Supply Housing Q4PSH10
22 Battery Retainer Q4BREA10
23 Fuse Kit Q4FUSKT
24 Chain #50 x 10' x 3 Q4C50CHK
25 Sprocket 50B25 Q4S50B25
26 Idler Pulley Q4IDPLY
27 Idler Bushing Q4IDBSH
28 Warning Placard DUWPA
29 Reset Switch (20 Amp) DUMRS20
30 Reset Switch (10 Amp) DUMRS10
31 120V Receptacle
Overall Dimensions
Weight 185 lb.
TECHNICAL SUPPORT 1 800 908 0884
i
PARTS DIAGRAMPARTS DIAGRAM
WARNING - For Installation By Qualified Personnel Only.
20"
14"
26"
0.625"
15.75"
Center of
Drive Chain
26"
13.75"
11.75"
2.60"
