Service Procedure
©2007 Viking Preferred Service 37

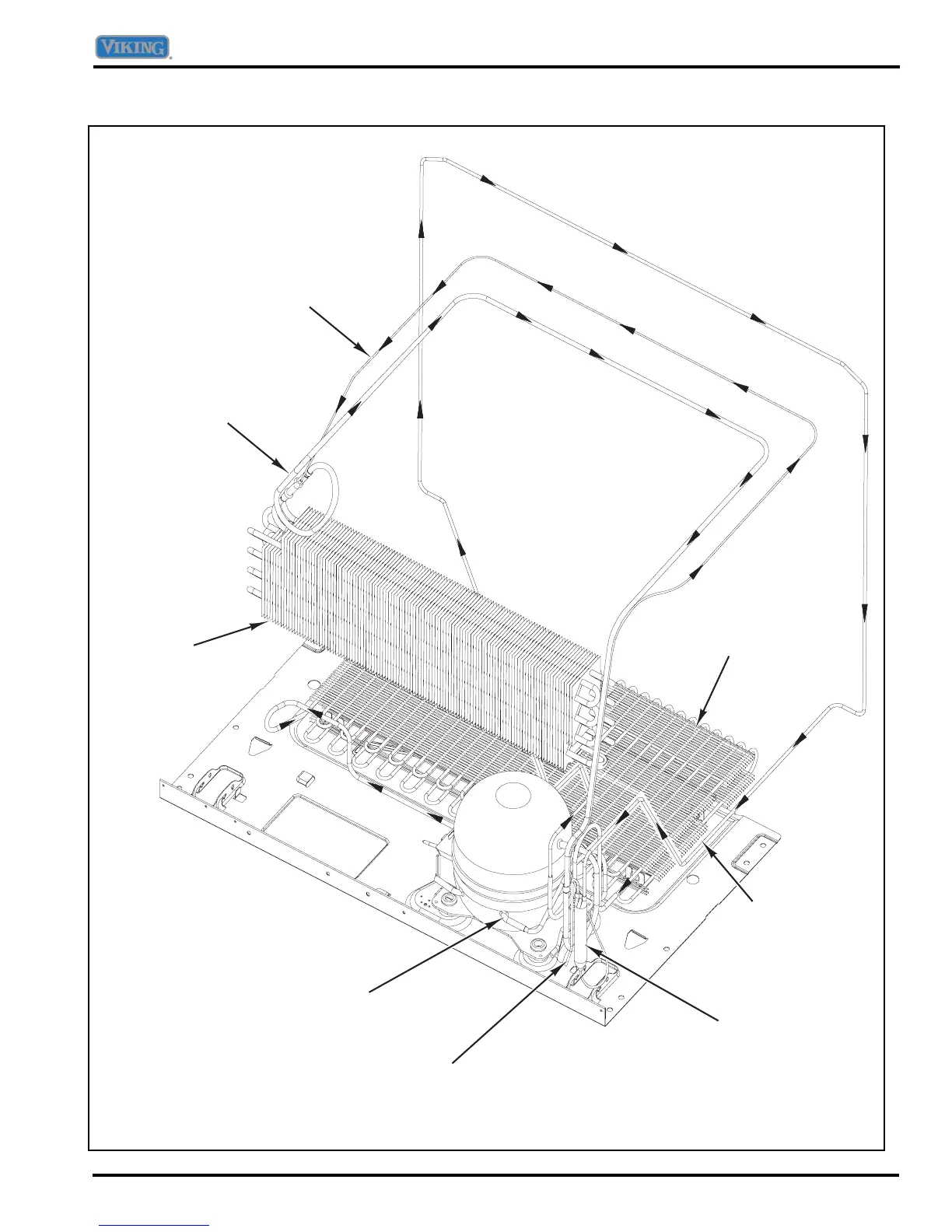

Refrigerant Flow
Compressor
Discharge Tube
Condenser
Post Condenser
Tube
Suction Tube
Capillary
Tube
Note: Capillary Tube and
Suction Tube are
located under Fresh
Food floor.
Evaporator
Process Tube
Drier
