Viking VCFF036SS - Disassembly Procedures: Evaporator and Water Valve; Evaporator Coil Removal; Condensate Drain Tube Removal; Water Valve Assembly Removal

Disassembly Procedure
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit before servicing,
unless testing requires power.
©2007 Viking Preferred Service 47

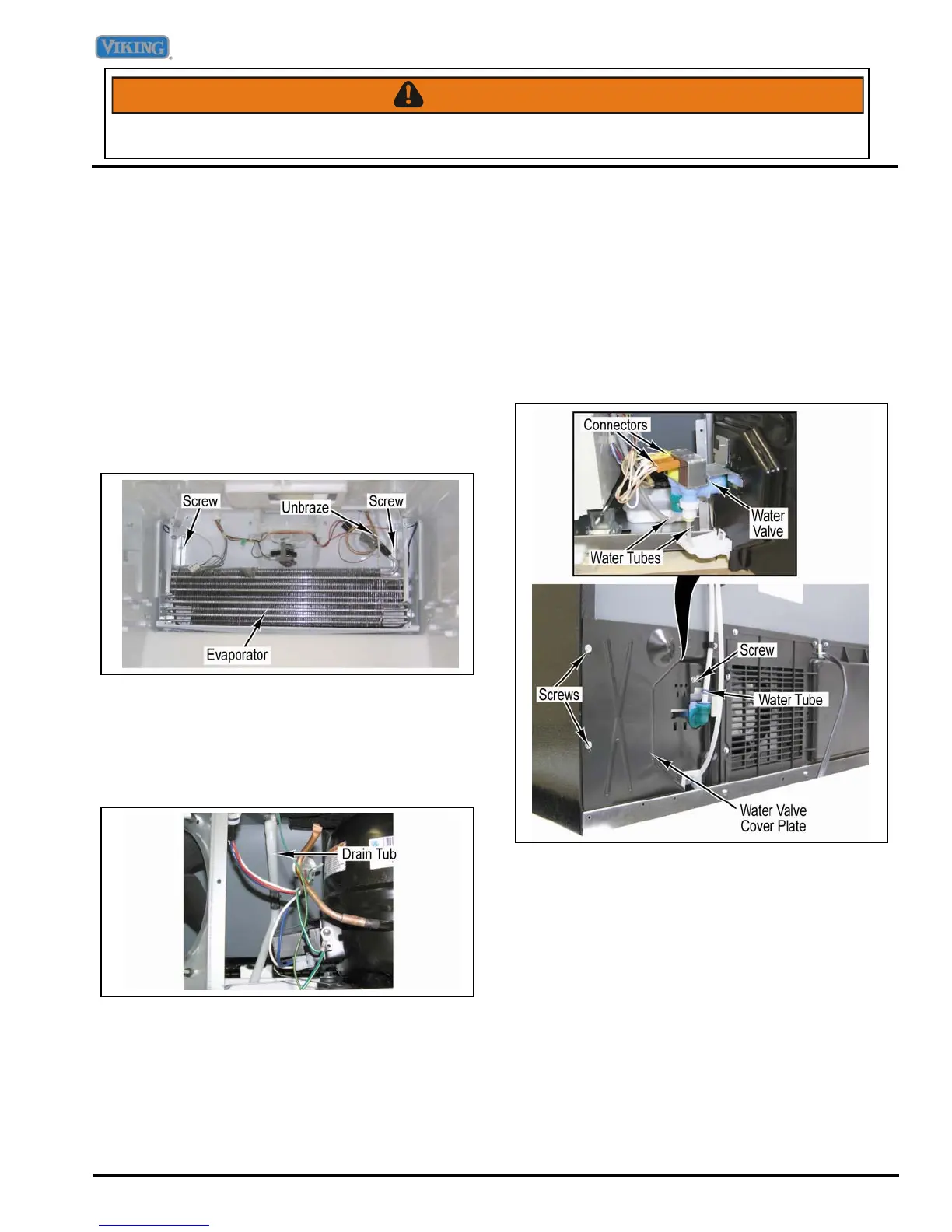

Evaporator Removal
Condition Requirements:
Defrost Thermostat Removed
Defrost Heater Removed
NOTE: Reclaim refrigerant per instructions in Service
Procedures before attempting evaporator
removal. To avoid system contamination, do not
leave system open for more than 10 minutes.
1. Unbraze evaporator coil after completing reclaiming
procedures found in Service Procedures section of
this manual.
2. Remove two screws from evaporator coil.
3. Release evaporator coil from clips by pulling coil off
of clips.
4. Reverse procedure for installation.
Condensate Drain Tube
Condition Requirements:
Access to Machine Compartment
5. Remove drain tube by pulling down on drain tube.
6. Reverse procedure for installation.
Water Valve
Condition Requirements:
Access to Machine Compartment
1. Remove two screws and water valve cover plate
assembly from the unit.
2. Disconnect two connectors from water valve
assembly.
3. Mark and disconnect water tubing from water valve
assembly.
4. Remove screw and water valve from water valve
cover plate.
5. Reverse procedure for installation.
