Viking VCFF036SS - Disassembly Procedures: Machine Compartment and Water Tank; Access to Machine Compartment; Water Filter Assembly Removal; Water Tank Assembly Removal

Disassembly Procedure
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit before servicing,
unless testing requires power.
©2007 Viking Preferred Service 43

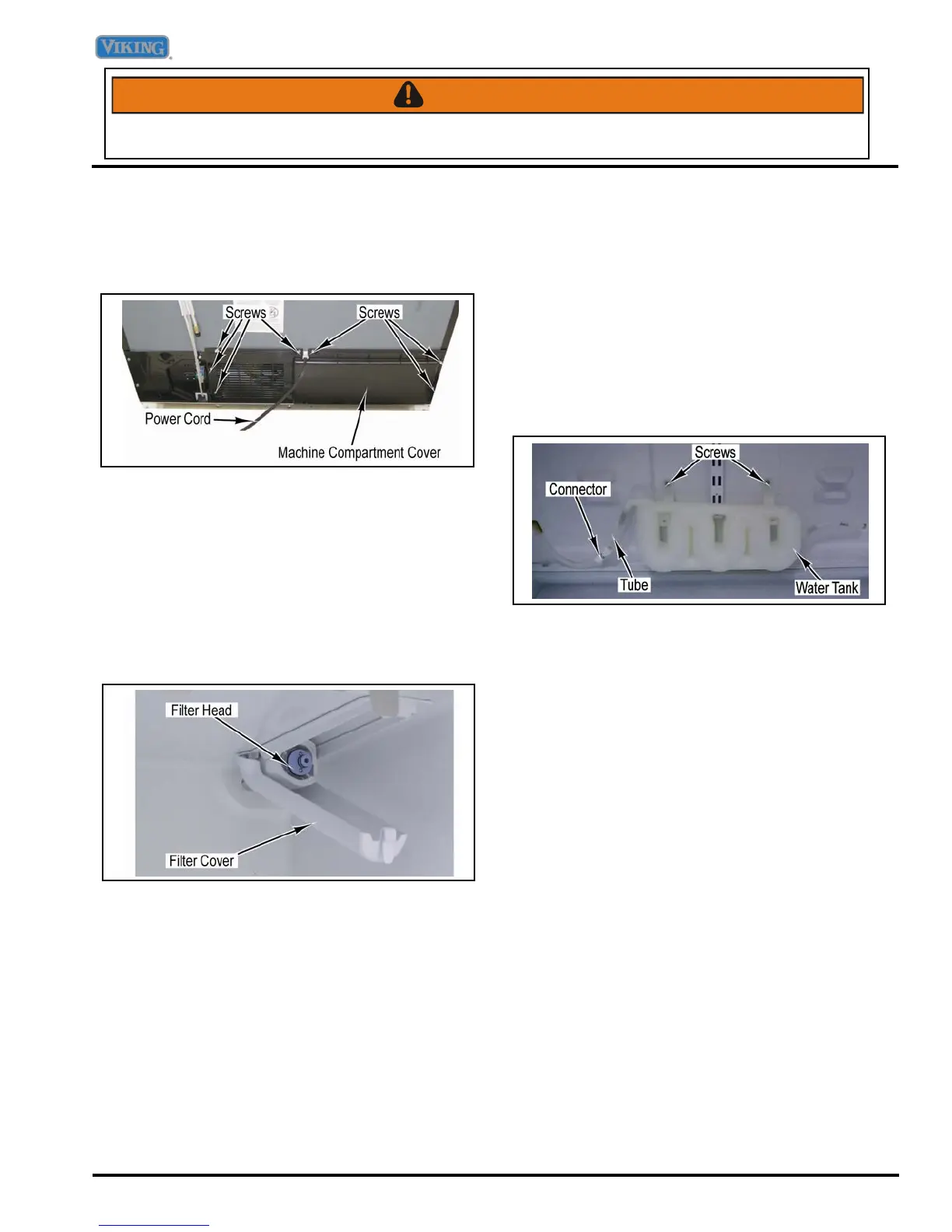

Access to Machine Compartment
Condition Requirements:
None
1. Remove seven screws and cover from the unit.
2. Remove power cord from cover.
3. Reverse procedure for installation.
Water Filter Assembly Removal
Condition Requirements:
Water Filter Removed
Access to Machine Compartment
1. Remove filter cover by pulling rear left side of cover
to the left to release cover from holding pin.
2. Filter head can be released from holding bracket by
opening tabs on left side filter head and pulling
downward and to your left to release filter head.
3. Tubing needs to be disconnected from water valve
in the machine compartment. (See Water Valve
removal)
4. After tubing is loose from water valve pull the filter
head and tubing out the front of unit.
NOTE: Make sure to note tubing end colors when
reinstalling new head and tubing assembly.
5. Reverse procedure for installation.
Water Tank Assembly Removal
Condition Requirements:
Drawers and Shelves Removed
Access to Machine Compartment
1. Remove two screws holding water tank to rear
bulkhead.
2. Disconnect tube from connector.
3. Tubing needs to be disconnected from water valve
in the machine compartment (See water valve
removal).
4. From inside of fresh food compartment pull tubing
up and out of cabinet to complete removal of water
tank.
5. Reverse procedure for installation.
