Viking VCFF036SS - Disassembly Procedures: Refrigerator Section; Light Bulb and Socket Removal; Electronic Control Board Removal; Light Switch Removal

Disassembly Procedure
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit before servicing,
unless testing requires power.
©2007 Viking Preferred Service 41

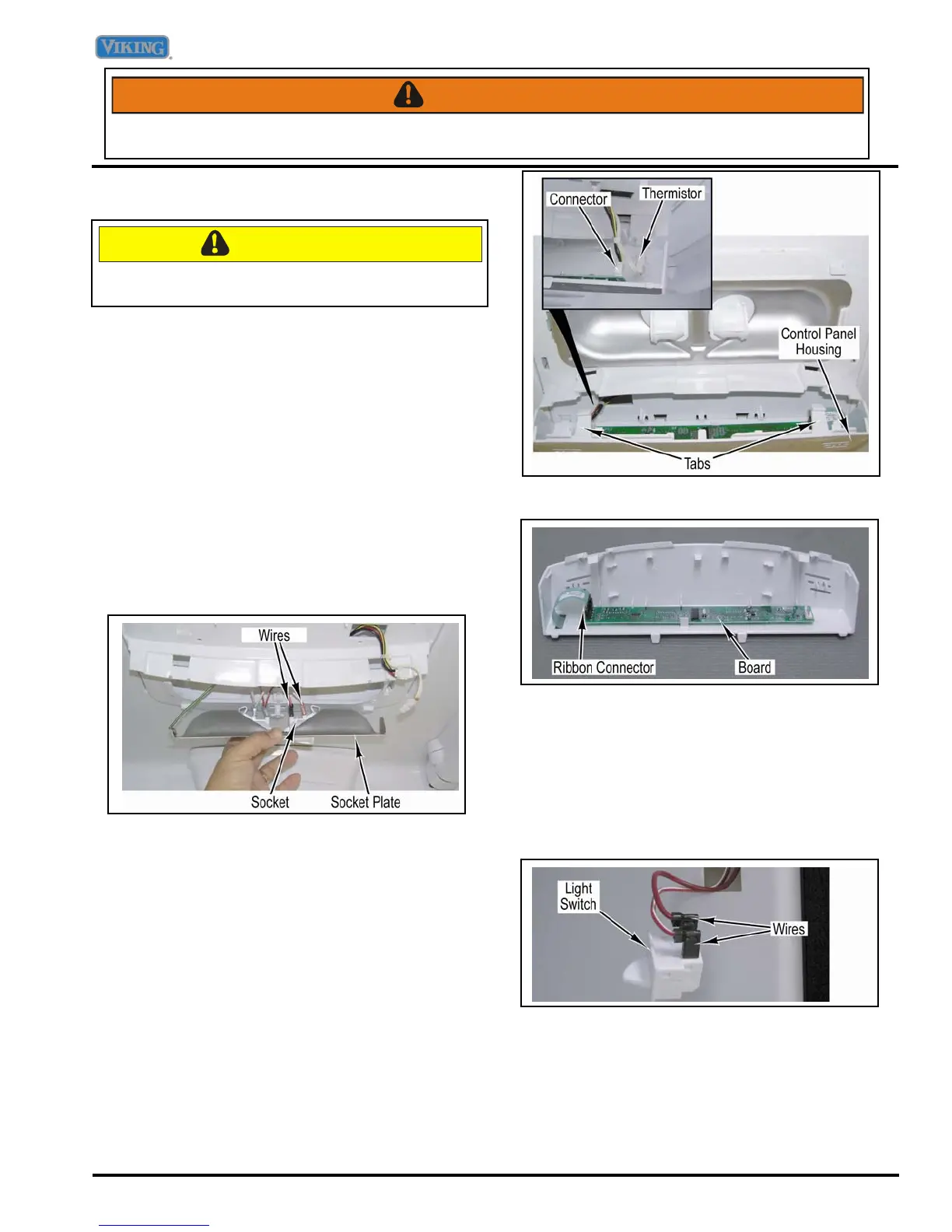

Refrigerator Section Light Bulb Removal
CAUTION
To avoid risk of burners, wear gloves when
replacing light bulb.
Condition Requirements:
Door Opened
1. Slide bulb cover to rear to release it from holding
tabs.
2. Remove light bulb.
3. Replace bulb with appliance bulb no greater than 40
watts.
Refrigerator Section Light Bulb Socket
Removal
Condition Requirements:
Light Bulbs Removed
1. Remove socket plate from tabs.
2. Disconnect wires from socket.
3. Remove socket from socket plate.
4. Reverse procedure for installation.
Electronic Control Board Removal
Condition Requirements:
Light Bulbs Removed
1. Using a screwdriver, depress two tabs and lower the
control panel housing.
2. Disconnect connector from control board.
3. Unclip thermistor from control panel housing.
4. Disconnect ribbon connector and remove board
from tabs.
5. Reverse procedure for installation.
Light Switch Removal
Condition Requirements:
Door Opened
1. Use a taped putty knife to carefully pry light switch
out of liner.
2. Disconnect two wires from the light switch and
remove light switch from unit.
3. Reverse procedure for installation.
