Viking VCSB5423 - Custom Door Panel Installation Procedure

20
Headline
20
Custom Door Panel Installation
3
2-1/16”
(5.2 cm)
2-1/16”
(5.2 cm)
Back of panelBack of panel
FOL bracketFOL bracket“Z” bracket“Z” bracket
1-11/16”
(4.3 cm)
1-11/16”
(4.3 cm)
2-13/16”
(7.1 cm)
Bottom-mount
12-1/16”
(30.6 cm)
All Refrigerator/
Freezer/
Side-by-side
2-13/16”
(7.1 cm)
Bottom-mount
12-1/16”
(30.6 cm)
All Refrigerator/
Freezer/
Side-by-side
2-1/8”
(5.4 cm)
2-1/8”
(5.4 cm)
2-1/8”
(5.4 cm)
4
5
x13
x13
6

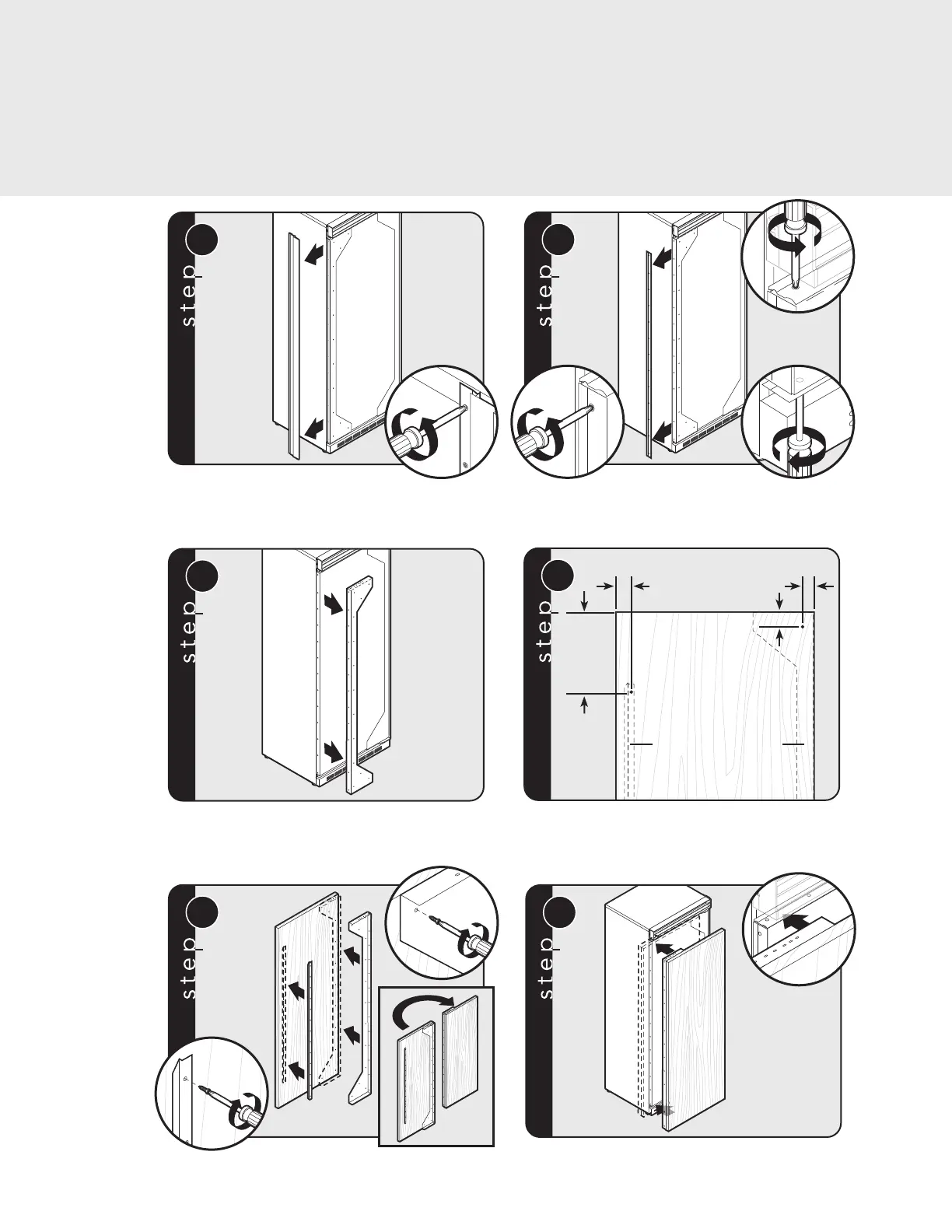

Remove bracket. Measure and mark the  rst hole for each bracket.
Attach “Z” bracket to the hinge side of custom panel.
Attach bracket to the handle side of custom panel.
Push custom wood panel onto door.
1
x13
2
x13
x2
x2
Remove handle side cabinet screws and trim
with a Phillips screwdriver.
Remove all screws from handle side door trim.
Remove two screws from top and bottom door trim. Remove
handle side door trim.
