Viking VCSB5423 - Installation Steps; Hinge Adjustment; Anti-Tip Installation

26
1
2
7
8a
Wall
2 x 4
Refrigerator
Front of unit
2
1 3
6

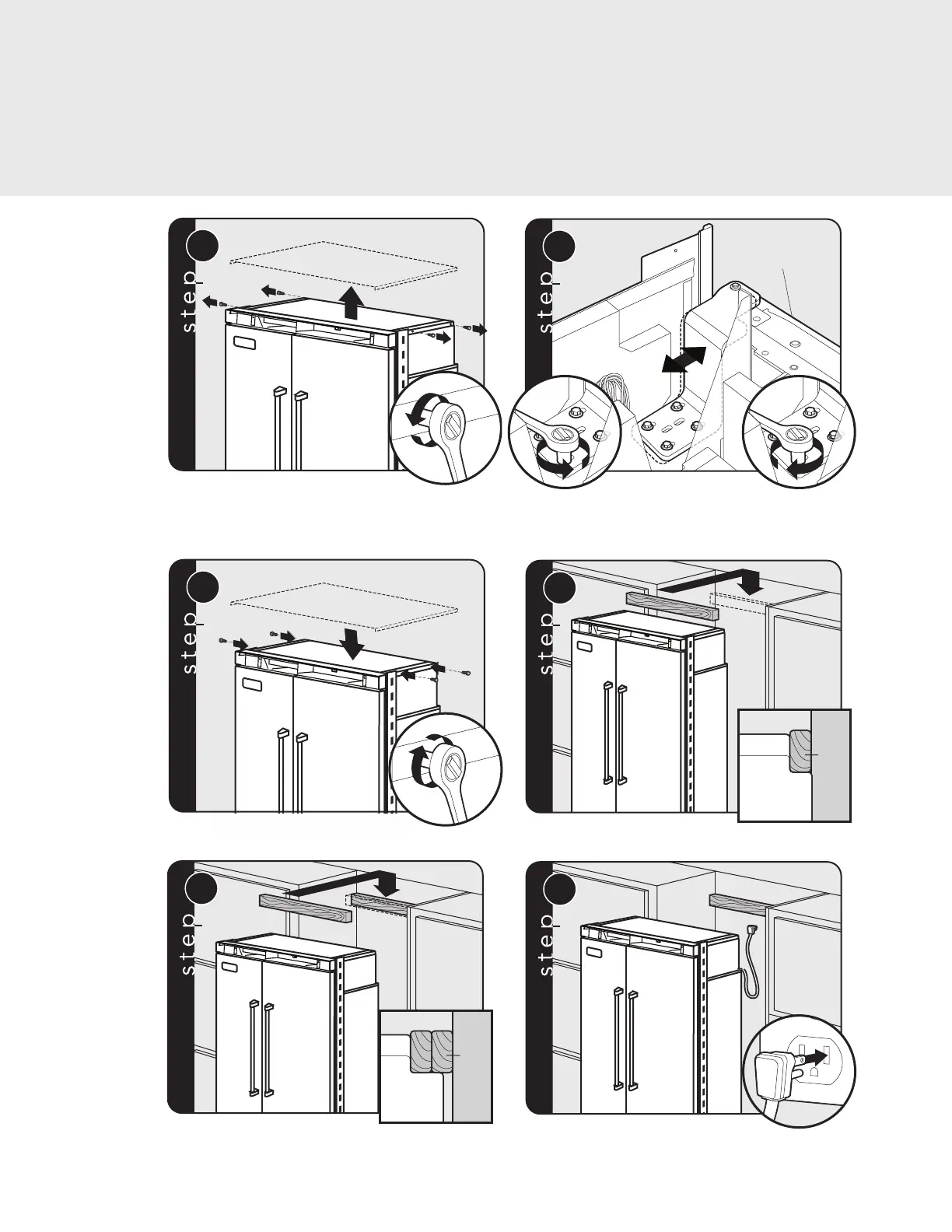

Replace unit top. Replace four side screws. Attach one 2 x 4 to wall stud (refer to dimensions page for
exact location).
Loosen the four hinge screws. Adjust door.
Retighten four hinge screws.
2
1
5
Remove four side screws and remove unit top.
8b
Wall
2 x 4
Refrigerator
9
If needed, depending on cabinet and depth,
attach second 2 x 4 to  rst 2 x 4.
Plug in power cord to verify operation.
Note: Make sure power switch is in the “On” Position.
Hinge Adjustment
Anti-Tip Installation
Installation
