Disassembly Procedures
48 ©2007 Viking Preferred Service
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit before servicing,
unless testing requires power.

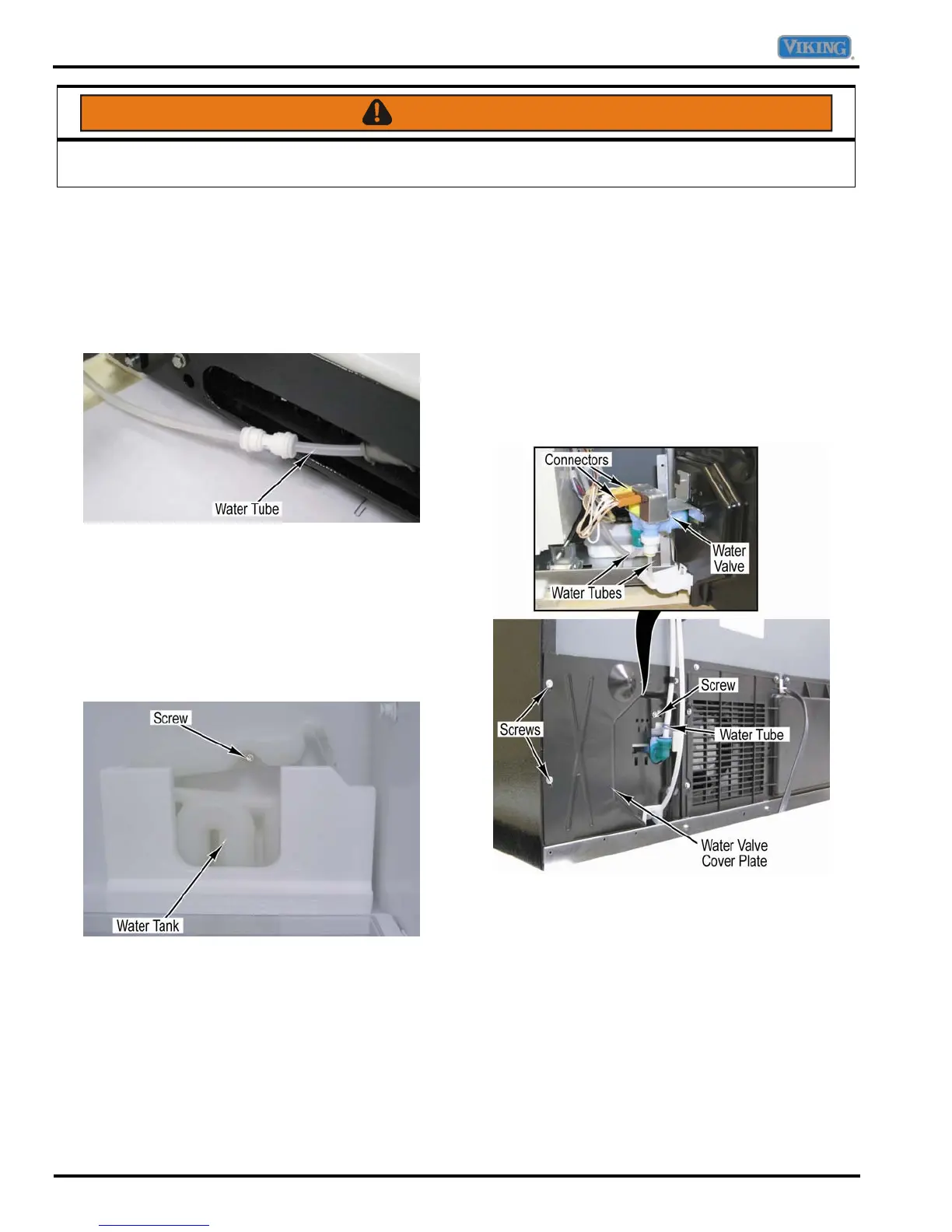

Water Tank Assembly Removal
Condition Requirements:
Drawers and Shelves Removed
Access to Machine Compartment
1. Remove toe grille and disconnect water tube going
to water dispenser.
2. Remove screw holding water tank to rear bulkhead.
3. Tubing needs to be disconnected from water valve
in the machine compartment (See Water Valve
Removal).
4. From rear of cabinet pull water tube out of conduit
going to dispenser.
5. From inside of fresh food compartment pull tubing
up and out of cabinet to complete removal of water
tank.
6. Reverse procedure for installation.
Water Valve Removal
Condition Requirements:
Access to Machine Compartment
1. Remove two screws and water valve cover plate
assembly from the unit.
2. Disconnect two connectors from water valve
assembly.
3. Mark and disconnect water tubing from water valve
assembly.
4. Remove screw and water valve from water valve
cover plate.
5. Reverse procedure for installation.
