Viking VCSF036SS - Disassembly Procedures (Continued); Dispenser Water Tube Removal; Door and Hinge Assembly Removal

Disassembly Procedures
56 ©2007 Viking Preferred Service
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit before servicing,
unless testing requires power.

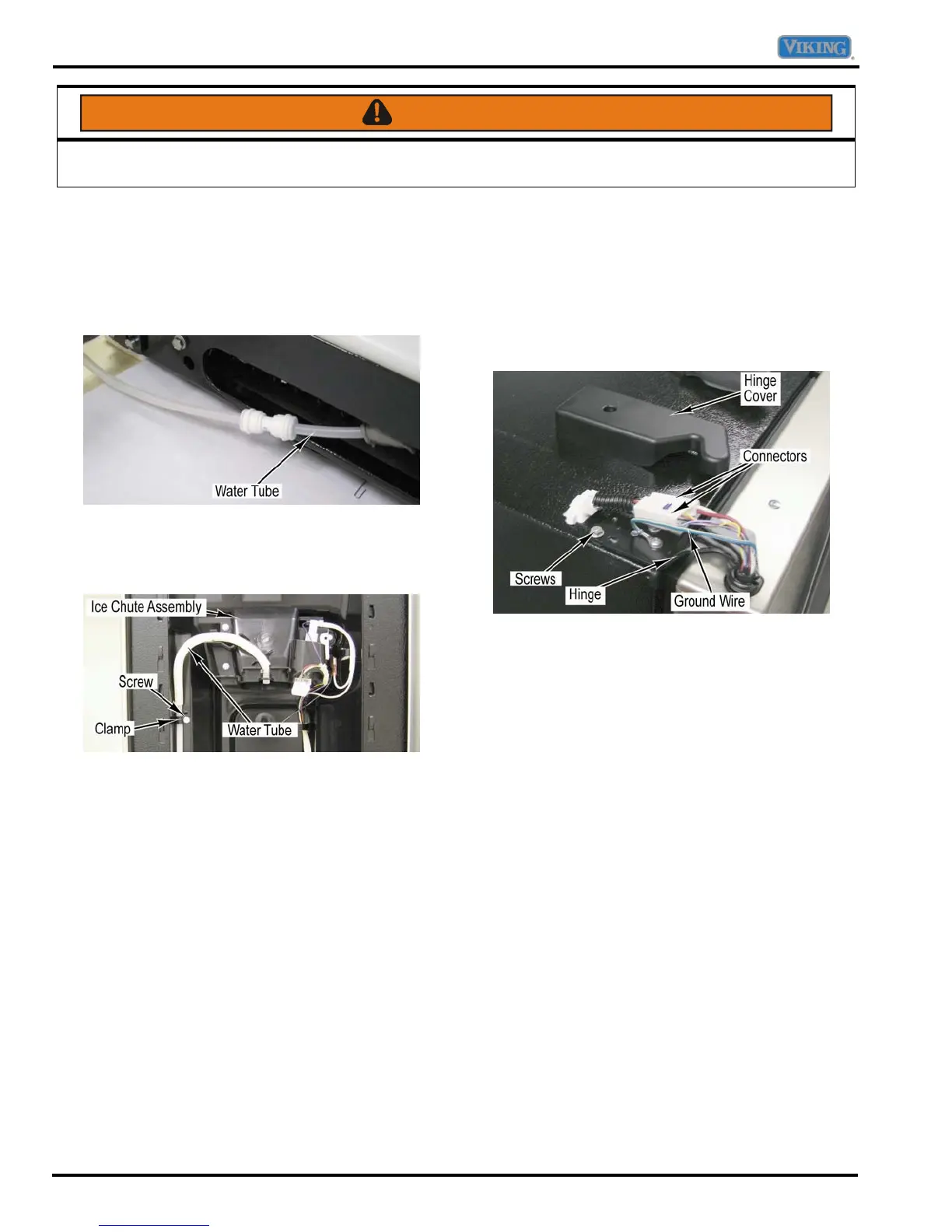

Dispenser Water Tube Removal
Condition Requirements:
Dispenser Façade Removed
1. Remove toe grille and disconnect water tube going
to water dispenser.
2. Remove dispenser water tube from ice chute
assembly.
3. Pull water tube up from conduit in cavity to remove
water tube.
4. Reverse procedure for installation.
Door and Hinge Removal
Condition Requirements:
None
1. Remove toe grille.
2. Remove screw and top hinge cover.
3. Disconnect connectors from door.
4. Remove screws from top hinge.
NOTE: Do not remove green ground wire from hinge.
5. Remove top hinge along with door.
6. Remove screw and bottom hinge.
7. Reverse procedure for installation.
