Viking VDSC560 - Door Removal; Door Replacement and Adjustment

Door Replacement and Adjustment
1
2
3
4
Reinstall door to range.
Open door completely.
Reinstall hinge trim.
Remove pins from hole in hinges.
5
If the door needs to be adjusted, loosen hinge trim screws
located in step 2. Adjust the screws located between the
door and kickplate using a 5/32” hex head allen wrench.
After adjustment, tighten hinge trim screws.
Close door.
32

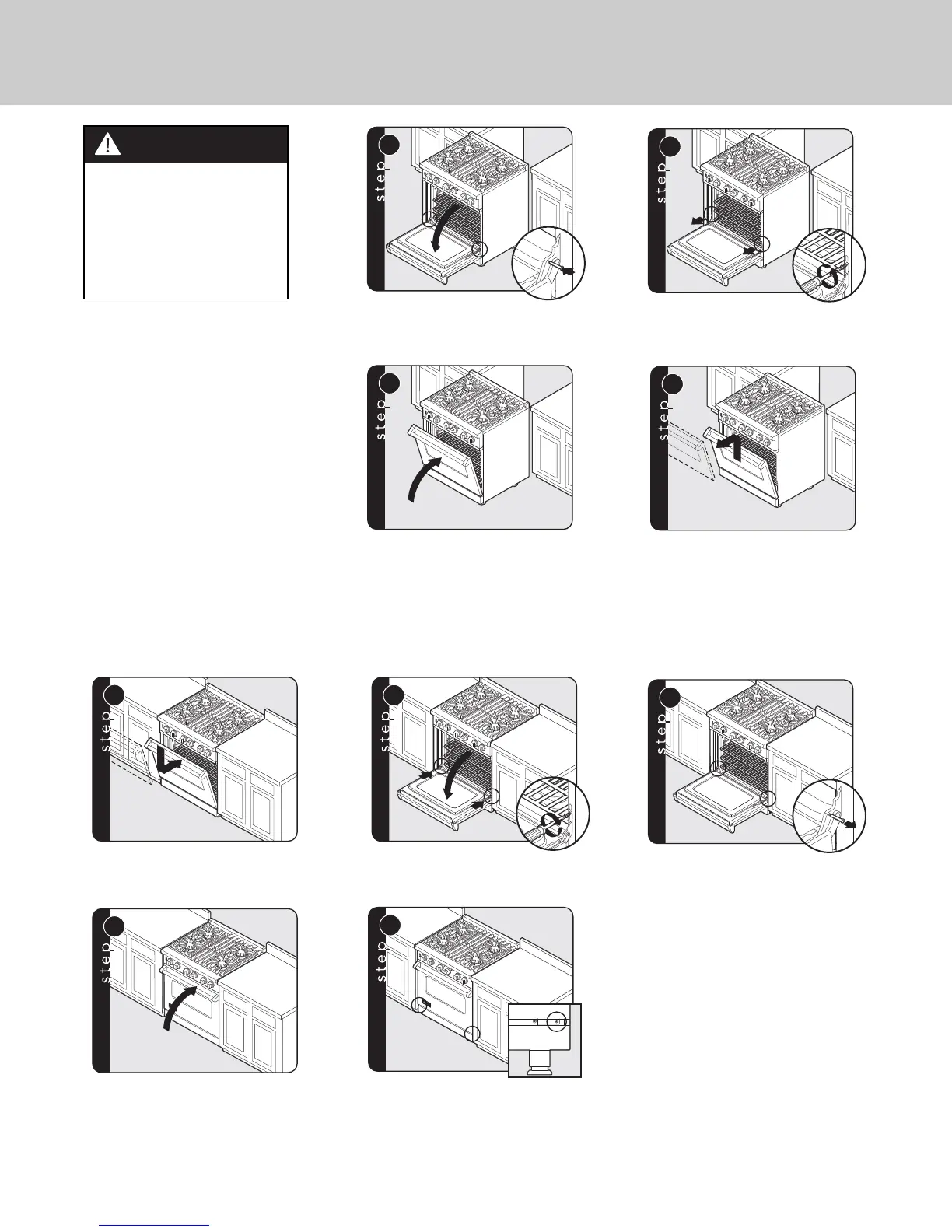

Door Removal
1
2
3
4
Open door completely.
Place pin in pin hole.
Remove hinge trim screws
and hinge trim.
Close until pins stop door.
Lift door up and out.
WARNING
TO PREVENT
PERSONAL INJURY
Before removing the doors,
make sure the pins are properly
installed in the hinges. Failure
to do so can result in personal
injury to hands and/or fingers.
