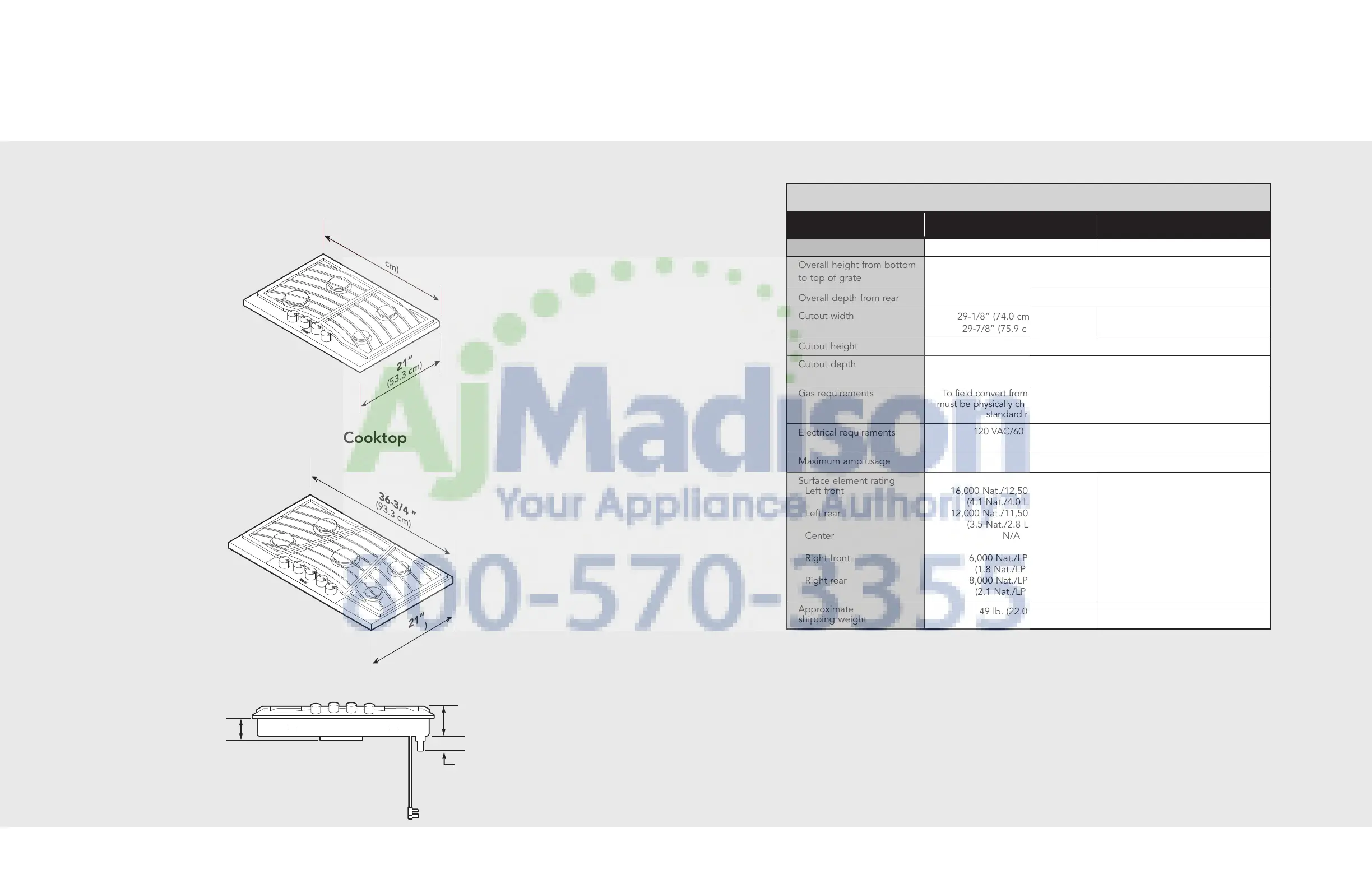

Dimensions (DGSU Designer)
8
21”
(53.3 cm)
30-3/4 ”
(78.1cm)
21”
(53.3)
36-3/4 ”
(93.3 cm)
30” Gas Cooktop
36” Gas Cooktop
3-1/8”
(7.9 cm)
4-3/8”
(11.1 cm)
1-3/4”
(4.5 cm)
Designer Gas Cooktops
Description
DGSU100/101 DGSU160/161
Overall width
30-3/4” (78.1 cm) 36-3/4” (93.3 cm)
Overall height from bottom
to top of grate
4-3/8” (11.1 cm)
Overall depth from rear
21” (53.3 cm)
Cutout width
29-1/8” (74.0 cm) min. to
29-7/8” (75.9 cm) max.
34-7/8” (88.6 cm) min. to
35-7/8” (91.1 cm) max.
Cutout height
3-1/8” (7.9 cm)
Cutout depth
19-3/4” (50.2 cm) min. to
20-1/8” (51.1 cm)
Gas requirements To field convert from natural or LP/Propane, the orifice spuds and regulator
must be physically changed. Order conversion kit DLPK to convert to LP. Uses
standard residential 1/2” (1.3 cm) I.D. gas service line.
Electrical requirements
120 VAC/60 Hz; 4 ft. (121.9 cm), 3-wire cord with grounded
3-prong plug attached to product.
Maximum amp usage
2.0 amps
Surface element rating
Left front
Left rear
Center
Right front
Right rear
16,000 Nat./12,500 LP (BTU)
(4.1 Nat./4.0 LP (kw))
12,000 Nat./11,500 LP (BTU)
(3.5 Nat./2.8 LP (kw))
N/A
6,000 Nat./LP (BTU)
(1.8 Nat./LP (kw))
8,000 Nat./LP (BTU)
(2.1 Nat./LP (kw))
12,000 Nat./11,500 LP (BTU)
(3.5 Nat./2.8 LP (kw))
10,000 Nat./9,500 LP (BTU)
(2.9 Nat./LP (kw))
16,000 Nat./12,500 LP (BTU)
(4.1 Nat./4.0 LP (kw))
6,000 Nat./5,500 LP (BTU)
(1.8 Nat./LP (kw))
8,000 Nat./7,500 LP (BTU)
(2.1 Nat./LP (kw))
Approximate
shipping weight
49 lb. (22.0 kg) 74 lb. (33.3 kg)
Front view
