Viking VGSU104 - Cutout Dimensions; Cutout Dimensions (VGSU Cooktop over Single Electric Oven)

Cutout Dimensions (VGSU Cooktop over Single Electric Oven)
13

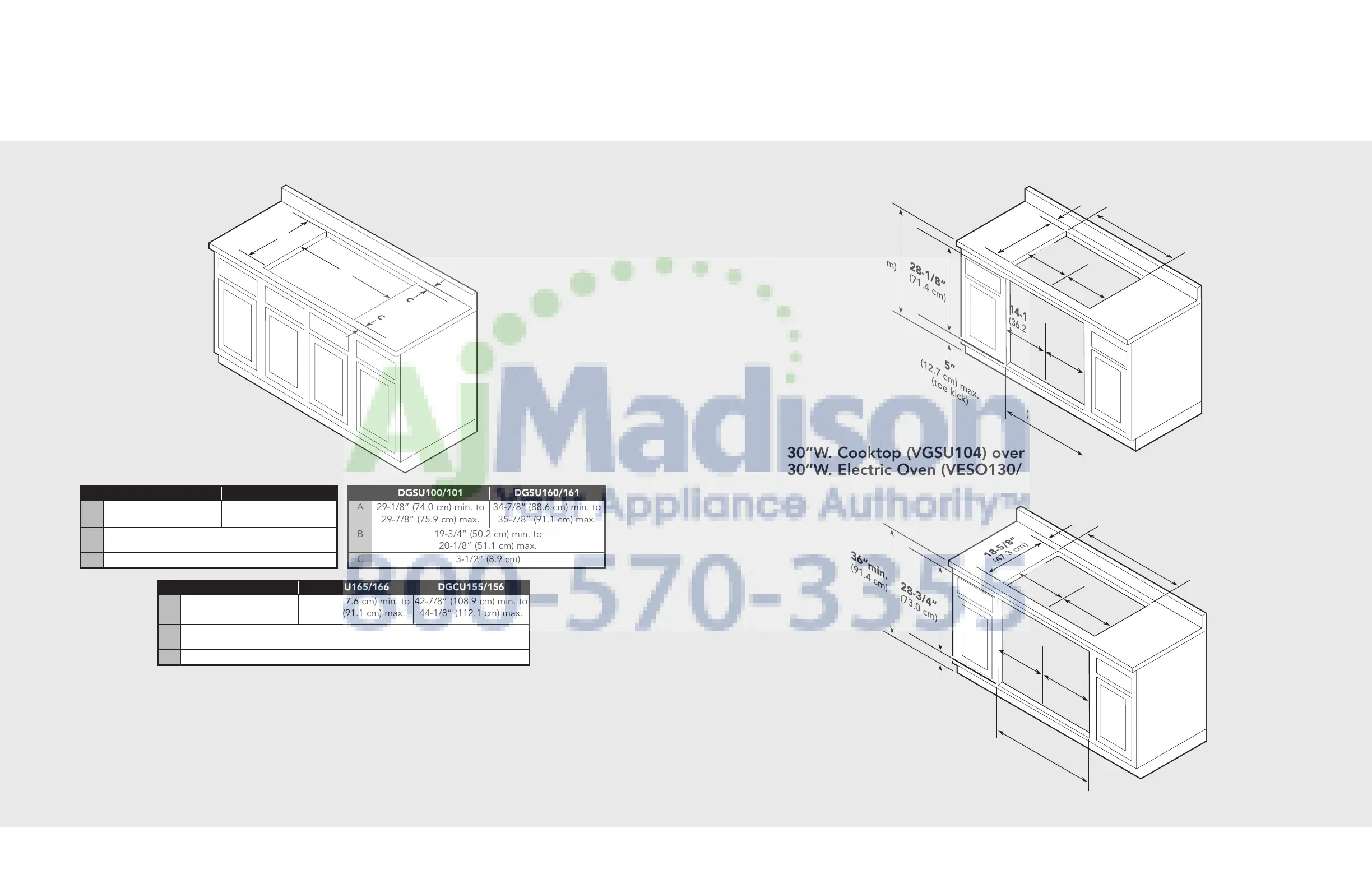

Cutout Dimensions
12
C
B
A
C
Note: Based on 24” deep cabinet with 3/4” backsplash.
VGSU104 VGSU164
A 26-7/8” (68.3 cm) min. to
29-7/8” (75.9 cm) max.
34-3/8” (87.3 cm) min. to
35-7/8” (91.1 cm) max.
B 18-5/8” (47.3 cm) min. to
20-1/8” (51.1 cm) max.
C 3-1/2” (8.9 cm)
DGSU100/101 DGSU160/161
A 29-1/8” (74.0 cm) min. to
29-7/8” (75.9 cm) max.
34-7/8” (88.6 cm) min. to
35-7/8” (91.1 cm) max.
B 19-3/4” (50.2 cm) min. to
20-1/8” (51.1 cm) max.
C 3-1/2” (8.9 cm)
DGCU105/106 DGCU165/166 DGCU155/156
A 28-3/4” (73.0 cm) min. to
29-7/8” (75.9 cm) max.
34-1/2” (87.6 cm) min. to
35-7/8” (91.1 cm) max.
42-7/8” (108.9 cm) min. to
44-1/8” (112.1 cm) max.
B 19-11/16” (50.0 cm) min. to
20-1/2” (52.1 cm) max.
C 3-1/2” (8.9 cm)
36”min.
(91.4 cm)
28-1/8”
(71.4 cm)
5”
(12.7 cm) max.
(toe kick)
28-1/2”
(72.4 cm)
26-7/8”
(73.3 cm)
3-1/2”
(8.9 cm) min.
12-1/4”
(31.1 cm)
14-5/8”
(37.2 cm)
14-1/4”
(36.2 cm)
14-1/4”
(36.2 cm)
18-5/8”
(47.3 cm)
36”min.
(91.4 cm)
28-3/4”
(73.0 cm)
5”
(12.7 cm) max.
(toe kick)
34”
(86.4 cm)
34-3/8”
(87.3 cm)
3-1/2”
(8.9 cm) min.
16-7/8”
(42.9 cm)
17-9/16”
(44.6 cm)
17”
(43.2 cm)
17”
(43.2 cm)
18-5/8”
(47.3 cm)
30”W. Cooktop (VGSU104) over
30”W. Electric Oven (VESO130/530)
36”W. Cooktop (VGSU164) over
36”W. Electric Oven (VESO166)
Note: Refer to the oven installation instructions for undercounter dimensions.
