Viking VGSU104 - Downdraft Dimensions; Cutout Dimensions (DGSU;DGCU Cooktop over Single Electric Oven); Clearance Dimensions (Proximity to Cabinets)

Clearance Dimensions (Proximity to Cabinets)
15
36” min.
(91.4 cm)
13” max.
(
33.0 cm)
8” min.
(20.3 cm)
18” min.
(45.7 cm)
3-1/8”
(7.9 cm)
A
36” min.
(
91.4 cm)
VGSU
A
3-1/2”
(8.9 cm)
3-1/2”
(8.9
cm)
DGSU/DGCU
Note: Dimensions shown are for use
with combustible surfaces unless
otherwise stated.
Proximity to Side Cabinet Installation
• The cooktop may be installed directly to
existing base cabinets.
• The cooktop CANNOT be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical surfaces
above 36” (91.4 cm) high. There must be a
minimum of 8” (20.3 cm) side clearance from
the cooktop to such combustible surfaces
above the 36” (91.4 cm) counter height.
• Within the 8” (20.3 cm) side clearance to
combustible vertical surfaces above
36” (91.4 cm), the maximum wall cabinet
depth must be 13” (33.0 cm) and wall cabinets
within this 8” (20.3 cm) side clearance must be
18” (45.7 cm) above the 36” (91.4 cm) high
countertop.
• Wall cabinet above the cooktop must
be a minimum of 36” (91.4 cm) above the
countertop for a full width of the cooktop.
This minimum height requirement does not
apply if a rangehood is installed over the
cooking surface.
• A 120 volt wall receptacle should be
located approximately 6” (15.2 cm) below
the countertop cutout and 12” (30.5 cm)
from the right side of the cutout.
Minimum Clearances from Adjacent
Combustible Construction
• Above countertop 36” (91.4 cm) minimum
• Side 8” (20.3 cm)
• Rear
o VGSU—3-1/2” (8.9 cm) min.
o DGSU/DGCU— 3-1/2” (8.9 cm) min.
• Within 6” side clearance. Wall cabinets no
deeper than 13” (33.0 cm)
• Must be minimum 18” (45.7 cm) above
countertop
• Wall cabinets directly above the product must be
minimum 36” (91.4 cm) above the countertop
14

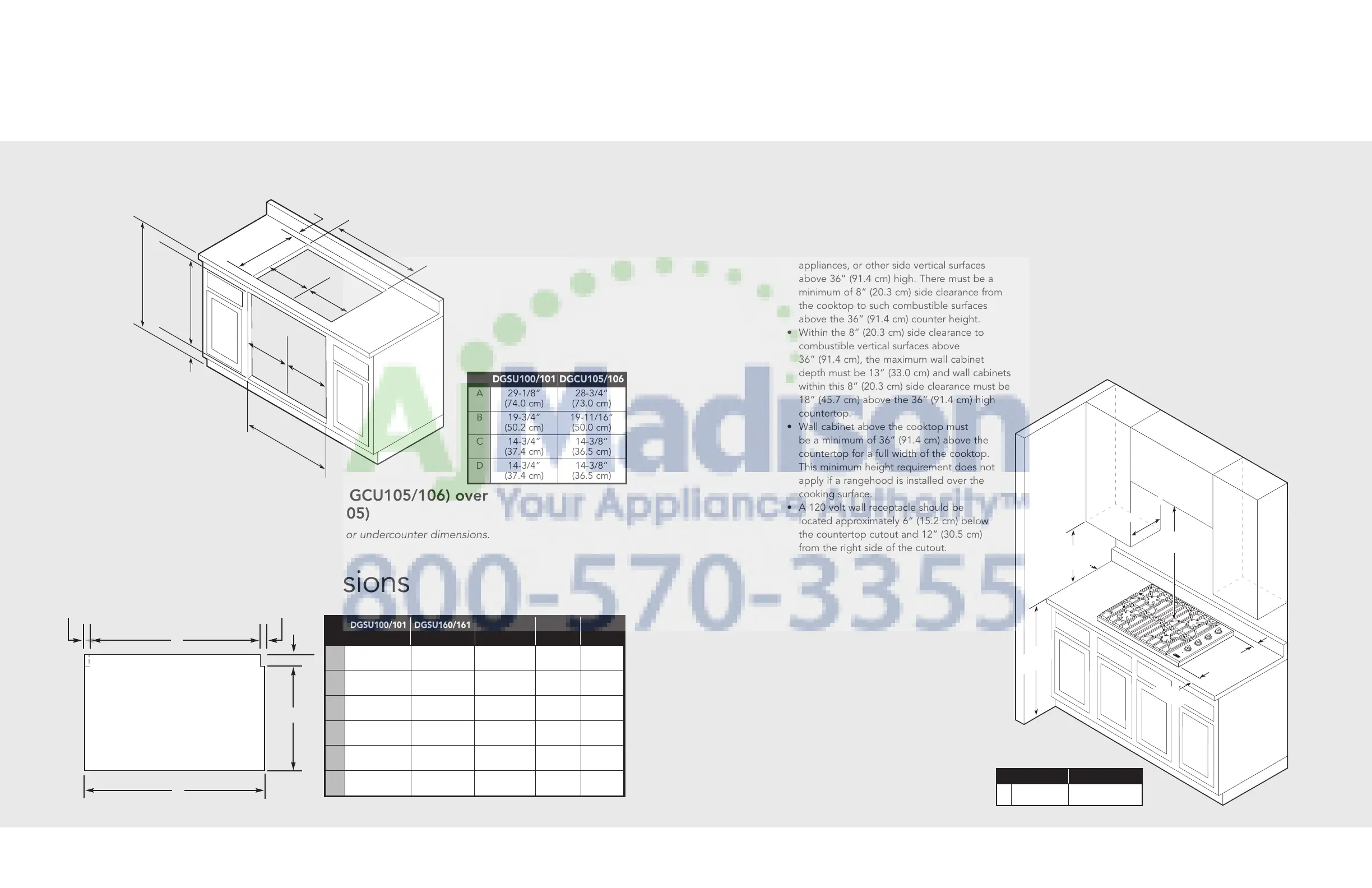

Cutout Dimensions (DGSU/DGCU Cooktop over Single Electric Oven)
36”min.
(91.4 cm)
28-1/8”
(71.4 cm)
5”
(12.7 cm) max.
28-1/2”
(72.4 cm)
A
3-1/2”
(8.9 cm) min.
C
14-1/4”
(36.2 cm)
14-1/4”
(36.2 cm)
B
D
DGSU100/101 DGCU105/106
A 29-1/8”
(74.0 cm)
28-3/4”
(73.0 cm)
B 19-3/4”
(50.2 cm)
19-11/16”
(50.0 cm)
C 14-3/4”
(37.4 cm)
14-3/8”
(36.5 cm)
D 14-3/4”
(37.4 cm)
14-3/8”
(36.5 cm)
C
EF
D
A
B
Downdraft Dimensions
DGSU100/101
DGCU105/106
DGSU160/161
DGCU165/166
DGCU155/156
VGSU104 VGSU164
A 29-1/8”
(74.0 cm)
34-7/8”
(88.6 cm)
42-7/8”
(109 cm)
28-1/16”
(71.3 cm)
34-1/4”
(87 cm)
B 20-5/8”
(52.3 cm)
20-5/8”
(52.3 cm)
20-5/8”
(52.3 cm)
18-3/4”
(47.6 cm)
18-3/4”
(47.6 cm)
C 27
(68.6 cm)
33”
(84.0 cm)
42”
(107 cm)
27
(68.6 cm)
33”
(84.0 cm)
D 2-1/4”
(5.7 cm)
2-1/4”
(5.7 cm)
2-1/4”
(5.7 cm)
3”
(7.6 cm)
3”
(7.6 cm)
E 1-1/16”
(1.1 cm)
15/16”
(1.0 cm)
7/16”
(.44 cm)
N/A N/A
F 1-1/16”
(2.7 cm)
15/16”
(1.0 cm)
7/16”
(.44 cm)
1-1/16”
(2.7 cm)
1-1/4”
(3.2 cm)
30”W. Cooktop (DGSU100/101/DGCU105/106) over
30”W. Electric Oven (DSOE301/305)
Note: Refer to the oven installation instructions for undercounter dimensions.
Note: Refer to the downdraft installation instructions.
