VOADD5361 - 36” DOOR
33-5/8”
(85.4 cm)
18-1/8”
(46.0 cm)
Clearance
Radius
SIDE
VIEW
FRONT
VIEW
36”
(91.4 cm)
16-5/8”
(42.2 cm)
2-3/4”
(7.0 cm)
1-1/4”
(3.2 cm)
18-3/8”
(46.7 cm)
21-1/8”
(53.7 cm)
18-3/4”
(47.6 cm)

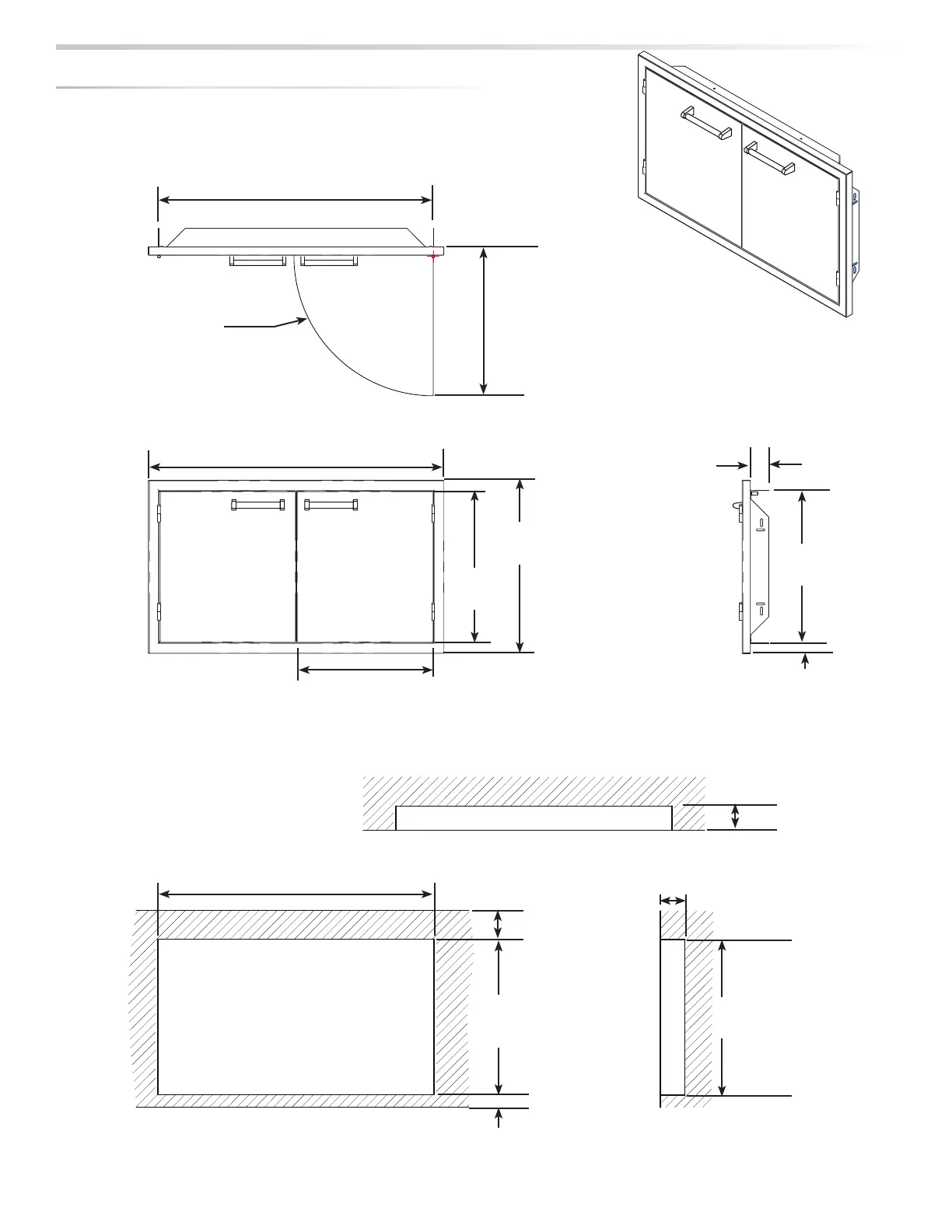

Product Dimensions
TOP VIEW
SIDE
VIEW
FRONT
VIEW
3” (7.6 cm)
Deep
33-3/4”
(85.7 cm)
19”
(48.3 cm)
High
1-1/2”
(3.8 cm) MIN
19”
(48.3 cm)
3” (7.6 cm)
3-1/2” (7.6 cm)
MIN
Cutout Dimensions
