3.5 - Power supply
The power supply furnishes the 29 V dc voltage for powering
the BUS system.
The construction for EN 50022 guide mount is available in a
single version:
01800: occupies six 17.5 mm modules, grey RAL 7035
Always connect the earth conductor.

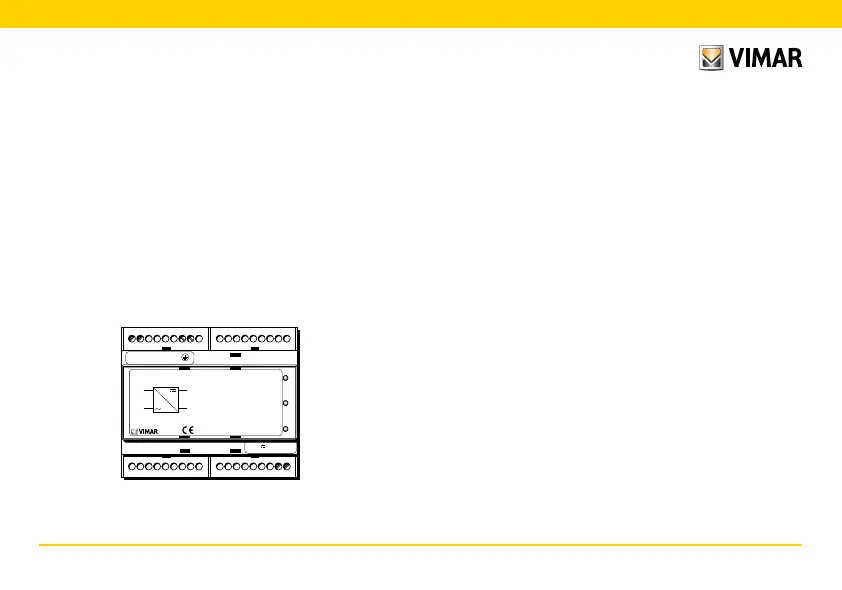

01800 Alimentatore/Power supply
29 V
492.18002 0A 0103 Made in Italy
OV
I > Imax
ON
L N
492.1800 0A 0103
492.1800 0A 0103
85-265 V
29 V
320 mA
50-60 Hz
-5 - +45 C
+
01800
Technical specifications
• Type: switching
• Rated supply voltage (Vn): 120-230 V~ ±10%
• Rated frequency: 50-60 Hz
• Output voltage: 29 ±1 V d.c.
• Max output current: 320 mA
• Enclosure protection: IP30
• Operating temperature: –5 - +45 °C
• Installation on EN 50022 guide (six 17.5 mm modules)
