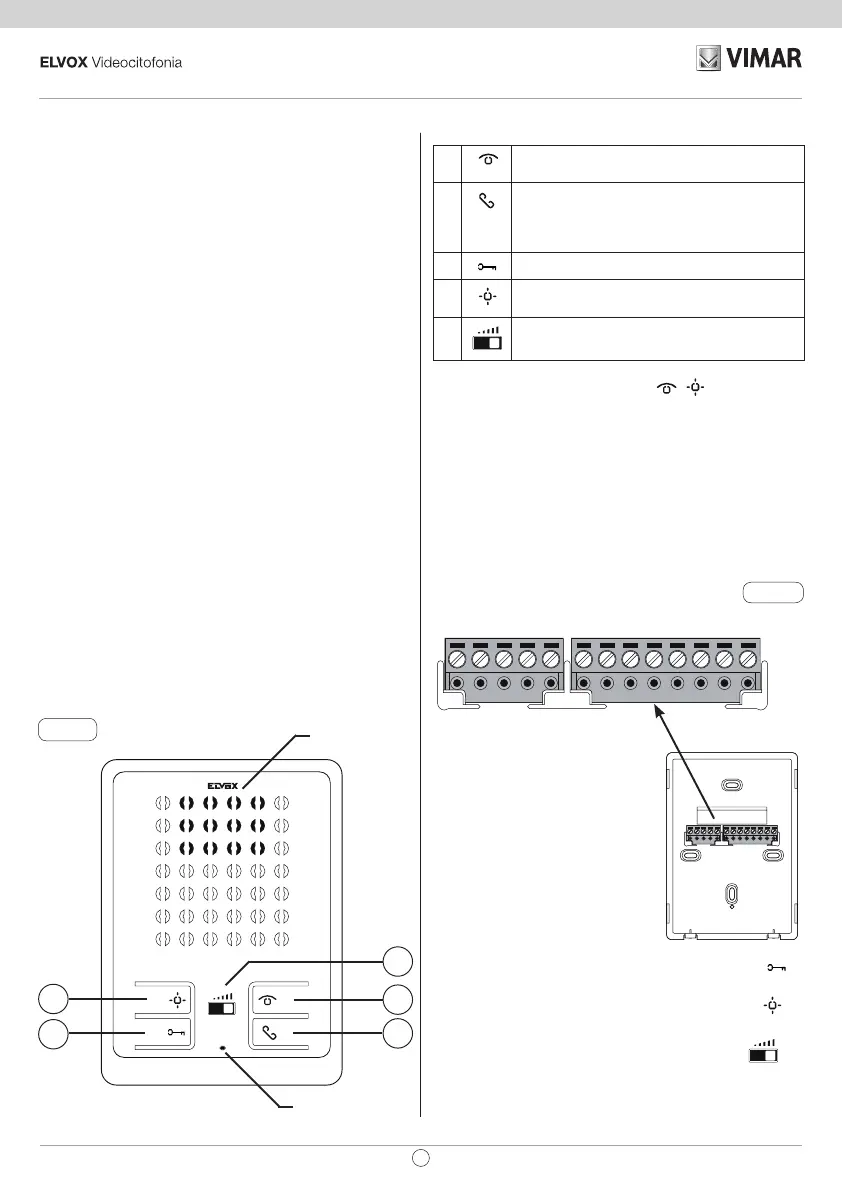

Terminal block:
Fig. 1
Description
Two-channel hands-free interphone made of thermoplastic
material with loudspeaker for electronic call. Equipped with
four buttons for the main door entry functions: door lock re-
lease, self-start, auxiliary services (stair light) and conversa-
tion. The internal audio volume and chime volume can also be
adjusted or muted.
Open voice system with “talk/listen” mode. Suitable for wall
mounting using screws and wall plugs, or for connection to
rectangular/round junction boxes.
For use with power supply unit Art. 0931 or 6680 and interface
module Art. 6560.
Before beginning installation, read the instructions care
-
fully to get a clear idea of the product’s characteristics,
functions and features.
Technical characteristics
• ABS interphone
• Surface-wall mount or box installation. Can be tted to the
wall with plugs or a 3 modules (Vimar V71303, V71703)
or circular 60 mm ush-mounting box (Vimar V71001,
V71701).
The circuit is connected to the removable section, while the
terminal block remains xed to the base.
• Standard colour: white.
• Operating temperature: 0° to 40°C
• Electronic chime: dierent ringtones for panel call, intercom
call and door call.
• Output for additional chime Art. 860A or relay Art. 0170/101.
• Input for door calls with dierent ringtone from panel calls.
• Dimensions: 102x142x23 mm
Microphone
Loudspeaker
E
A
B
D
C
A Self-start: for self-start/auto-activation or for
activation of an auxiliary service.
B
Talk/Listen: Activates/deactivates communica-
tion. On receiving an external or intercom call,
press and hold down button B (talk/listen) to
activate communication.
C
Lock: for door lock release..
D
Auxiliary (Stair light): to activate an auxiliary
service.
E
Ringtone volume control/mute
Buttons and front controls:
Description of terminal
block:
1: Receiver
2: Microphone
3: Common voice line
6E: External entrance panel call
6P: Door call
6: Intercom call
6S: Call repetition output for ad-
ditional chime. (See wiring
variants).
7-4A: Button-activated NO contact (capacity 1A 50V)
for
door lock release.
8-4B: Button-activated NO contact (capacity 1A 50V)
for
activating an auxiliary service.
9-4C:
Button-activated NO contact (capacity 1A 50V) ,
for
self-start/auto-activation or for activation of an auxiliary
service. 9-4C:
Note: To connect additional buttons
, according to the
desired function, see the variants in the wiring diagrams sec-
tion.
7 6S 6 6P 6E 3 2 1
4C 9 4B 8 4A
Fig. 2
EN
4
6900
