Vimar Elvox 7509 Installer's Guide

11
EN

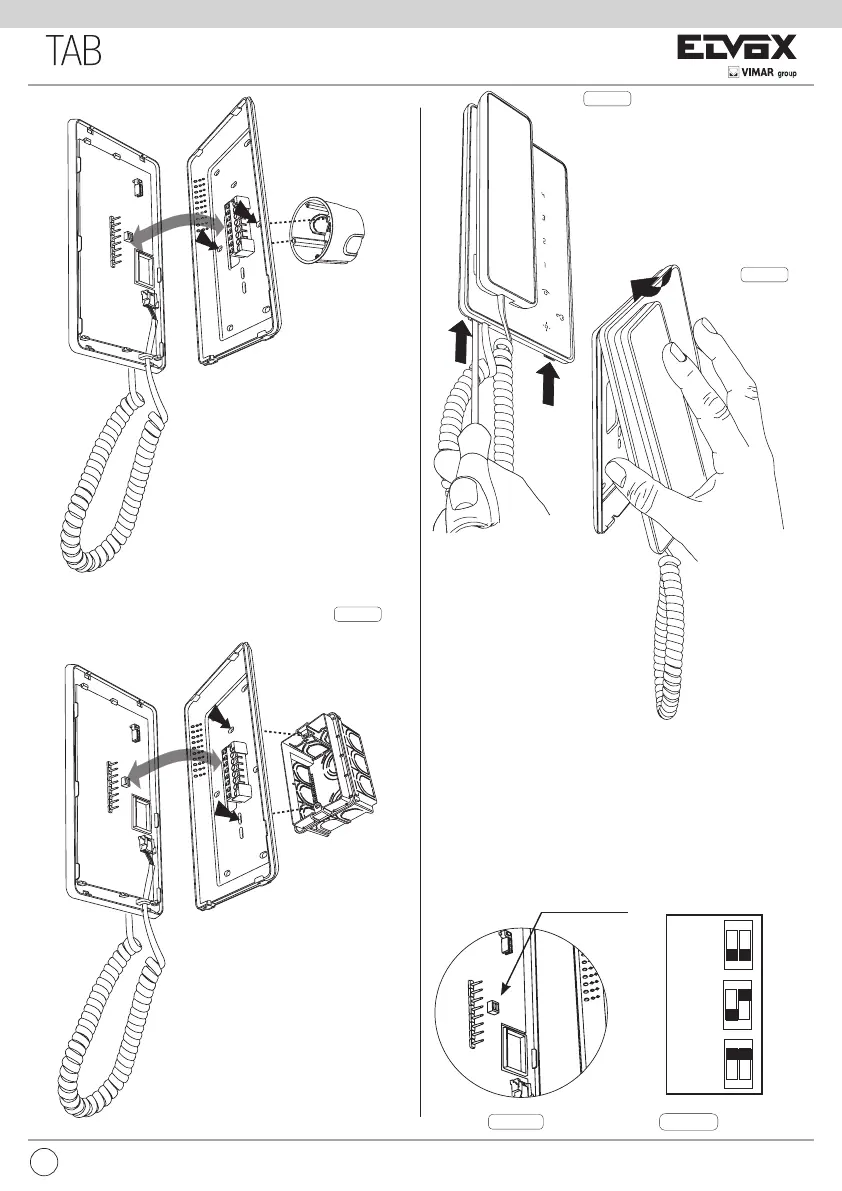

Fig. 5
Bus termination for video signal stabilisation
The BUS termination dip-switches for video signal stabilization are located
inside the interphone.
Depending on the connection configuration (interphones/monitors connected
in series or derived from a distributor), set the dip-switches in the appropriate
position (position A, B or C) according to the instructions given in the note
“Bus termination” in the wiring diagrams section below.
Fig. 8A
Fig. 8B
Fig. 6
Fig. 7
Dip-switch for
Bus termination
C
50Ω
B
100Ω
A
OPEN
ON
12
ON
12
ON
12
C
50Ω
B
100
Ω
A
OPEN
ON
12
ON
12
ON
12
C
50Ω
B
100Ω
A
OPEN
ON
12
ON
12
ON
12
