Vimar ELVOX SW24.W Installer Manual

1
SW24.W
EN
1 - Product features:
Control panel for gear motors for 24Vdc swing gates. The control panel:
- is equipped with an integrated 433 MHz rolling code or xed code receiver, storing up to 4032 codes
- is equipped with Wi-Fi connection and programming via Smartphone and Tablet using the EMC.W module and the
By-gate Pro app
- is equipped with a back-lit display for programming and diagnostics
is used to customise all gate movement control parameters (speed and slowdown spaces, motor force, obstacle
sensitivity, reaction to obstacles, acceleration and deceleration ramps...)
- is equipped with fully congurable inputs and outputs
is used to lock the control panel and receiver settings with a 4 digit password protection

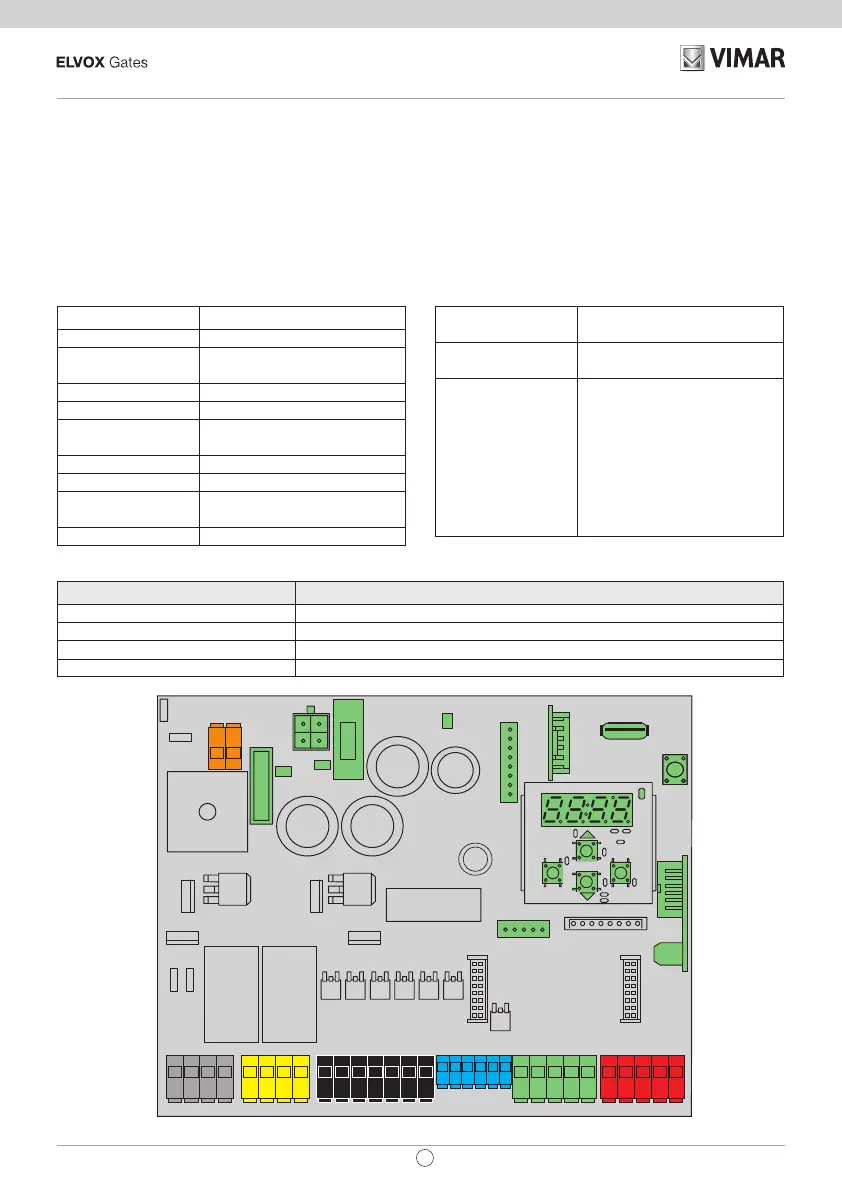

Technical data:
Power supply 24 Vac
Motor supply voltage 24 V DC
Maximum motor
power
80 W + 80 W
Flashing light output 24 V DC 35 W max
Electrical lock output 12 Vdc 15 VA
Accessories power
supply
24 V DC 500 mA
Receiver memory 4032 Elvox rolling codes
Receiver frequency 433 MHz
Remote controls
code
Rolling code or xed
Fuse F1 ATO line protection 15 A
Fuse F2
Accessories protection 5x20
mm F 3.15A
Operating
temperature
-10 to +50°C
Ports
MEM for memory module
MEM.W connection (included)
RADIO for radio module
433RAD.W connection
(included)
USB for rmware updating
CNX1 for Wi-Fi EMC.W module
connection
CNX2 (not used)
21
22 25 26
0
1 1 2
10
11 18 19
0
99
C1 C2 C3
C4
99
S1 S2 S3
S4
A1 A2
T2T1
+E
-E E1 E2 E5 E6
21 22 25 26 0112
10 11 18 19
0A1A2
+E
-E E1 E2 E5 E6
99 C1 C2 C3
C4
99 S1 S2 S3
S4
BAT
PP
F1
F2
PWR
PROGRAM. MENU'
USB
ESC OK
CNX1
CNX2
PT1
SEC
VR3
FST1
T1 T2
FSC1 FSC2
MOT PS
AUX LSW ACT SAF
MEM
CEXP1 CEXP2
CNP1
RADIO
SW24.W
DL1
DL3
DL4
M1 M2
OPEN M1
CLOSE M1
OPEN M2
CLOSE M2
24 V-
24 V+ 24 V+
24 V+ TEST
BLINK 24 V-
BLINK 24 V+
LOCK 12 V-
LOCK 12 V+
24 V-
A1 24 V+
A2 24 V+
ENC 12 V+
ENC 12 V-
ENC SIG A M1
ENC SIG B M1
ENC SIG A M2
ENC SIG B M2
COM COM
500 mA max
500 mA max
15 VA max
35 W max
Controllable actuators
Ref. Description
EAM2 EKKO 300D linear operator 24 V 3 m 300 kg
EAM3 EKKO 400D linear operator 24 V 4 m 250 kg
EIM1 HIDDY 200D underground operator 24 V 2 m 200 kg
EIM2.24 HIDDY 350D underground operator 24 V 3,5 m 200 kg
