Vimar ELVOX SW24.W Installer Manual

2
SW24.W
EN

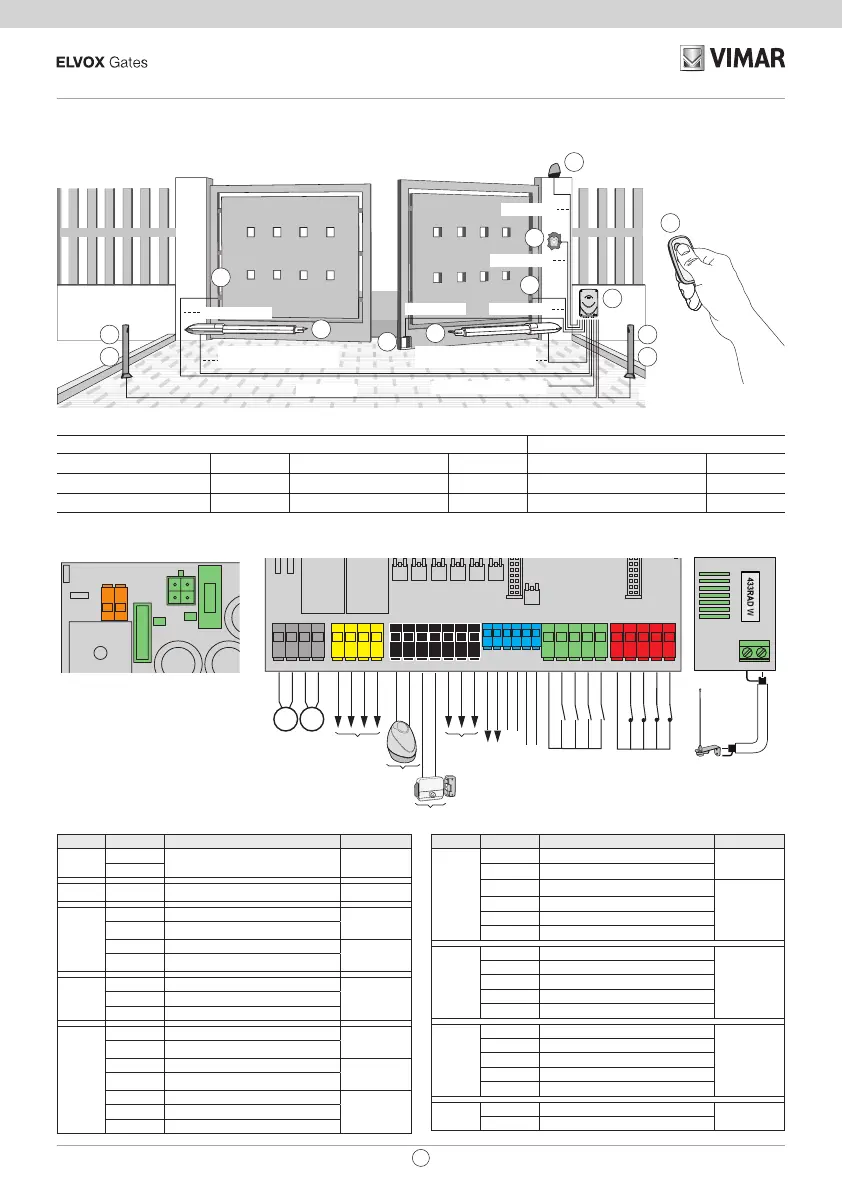

2 - System type:
For the sizing of the cable routing, the required cross-sections of the cables are shown below.
Block Terminal Description Rated data
SEC
T1
Secondary transformer 24 Vac
T2
BAT - Battery pack rapid coupling
MOT
21 Opening motor 1 24 V DC
80 W
22 Closing motor 1
25 Opening motor 2 24 V DC
80 W
26 Closing motor 2
PS
0
Accessory power supply negative
24 V DC
500 mA
1
Accessory power supply positive
2 Accessories positive checked
AUX
10 Flashing light negative 24 V DC
35 W
11 Flashing light positive
18 Electrical lock negative 12 V DC
15 VA
19 Electrical lock positive
0 Accessories negative
24 V DC
500 mA
A1 Congurable output 1 positive
A2 Congurable output 2 positive
Block Terminal Description Rated data
LSW
+E Encoder power supply positive
12 V DC
-E
Encoder power supply negative
E1 Motor 1 encoder signal A
E2 Motor 1 encoder signal B
E5 Motor 2 encoder signal A
E6 Motor 2 encoder signal B
ACT
99 Control common
N.O.
C1 Congurable control 1
C2 Congurable control 2
C3 Congurable control 3
C4 Congurable control 4
SAF
99 Safety device common
N.C.
S1 Congurable safety device 1
S2 Congurable safety device 2
S3 Congurable safety device 3
S4 Congurable safety device 4
ANT
ANT Aerial signal
- Aerial earth
RADIO
ANT
- ANT
21
22 25 26
0
1 1 2
10
11 18 19
0
99
C1 C2 C3
C4
99
S1 S2 S3
S4A1 A2
+E
-E E1 E2 E5 E6
21 22 25 26 0 112 10 11 18 19
0
99 C1 C2 C3
C4
99 S1 S2 S3
S4A1 A2
+E
-E E1 E2 E5 E6
MOT PS
AUX LSW ACT SAF
M1 M2
OPEN M1
CLOSE M1
OPEN M2
CLOSE M2
24 V-
24 V+ 24 V+
24 V+ TEST
BLINK 24 V-
BLINK 24 V+
LOCK 12 V-
LOCK 12 V+
24 V-
A1 24 V+ A2 24 V+
ENC 12 V+
ENC 12 V-
ENC SIG A M1
ENC SIG B M1
ENC SIG A M2
ENC SIG B M2
COM
500 mA max
500 mA max
35 W max
T2T1
15 A
BAT
F1
F2
SEC
VR3
FST1
T1 T2
DL3
DL4
15 VA max
COM
3 - Description of the terminal block
C
B
D
E
A
F
2x1 mm²
3x0.5 mm²
4x0.5 mm²
A
G
H
I
2x2.5 mm²+
3x0.5 mm² (encoder)
E
2x0.5 mm²
2x0.5 mm²
4x0.5 mm²
2x0.5 mm²
3x1.5 mm² (230 Vac)
H
I
2x2.5 mm²+
3x0.5 mm² (encoder)
Components for implementing a complete system
Main Components Accessories (optional)
Actuator A Remote control D Electric lock + cylinder
G
Control panel B Wall-mounted photocells E Post-mounted photocells
H
Blinking C Key selector F Posts
I
