3) DESCRIPTION OF THE STAIRLIFT
3.1) Description

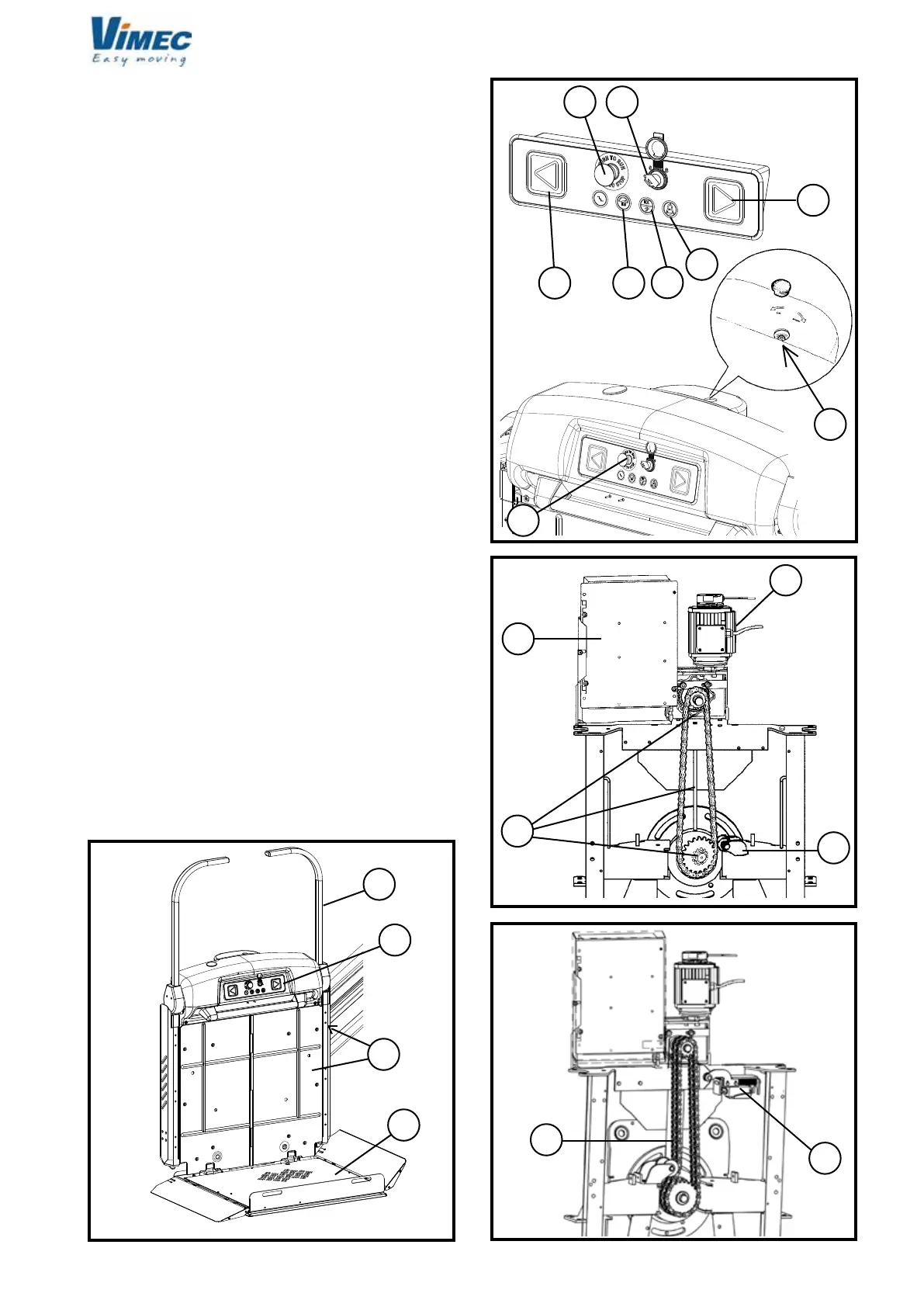

Lift unit - Fig. 1
Comprises:
- carriage
- load-bearing structure
- safety bars - Fig. 1/a.
- load platform - Fig. 1/c.
- casing - Fig. 1/b.
- control board - Fig. 1/d.
Contains:
- motor - Fig. 3/a.
- transmission components - Fig. 3/b.
- electric system - Fig. 3/c.
- as an optional, the stairlift can be also provided com-
plete with double drive chain (see Fig. 3 bis/f) and chain
microswitch (see Fig. 3 bis/g).
The control board carries the following controls:
- control enabling key - Fig. 2/a.
- up/down buttons - Fig. 2/b.
- overload indicator light - Fig. 2/c (standard operated
only for 1250x800 and 1050x900 platforms).
- bell push-button - Fig. 2/d.
- emergency stop (red mushroom-head button) - Fig. 2/e.
- indicator light for remote control and stairlift tension - Fig.
2/g.
On the lift unit:
- connection for handwheel for manual operation - Fig.2/f.
Rails - Fig. 4
Comprises:
- Rail - Fig. 4/a.
- Wall connections.
- Plastic cable carrier chain with rail - Fig. 4/c.
- Feet for stairs (optional) - Fig. 4/b.
FIG.2
FIG.1
FIG.3
FIG.3 bis
