vimec V 64 - Page 6

6
a
b
e
c
a
d
b
a
d
c
b
e
b
b
a
a
b
c
7511131

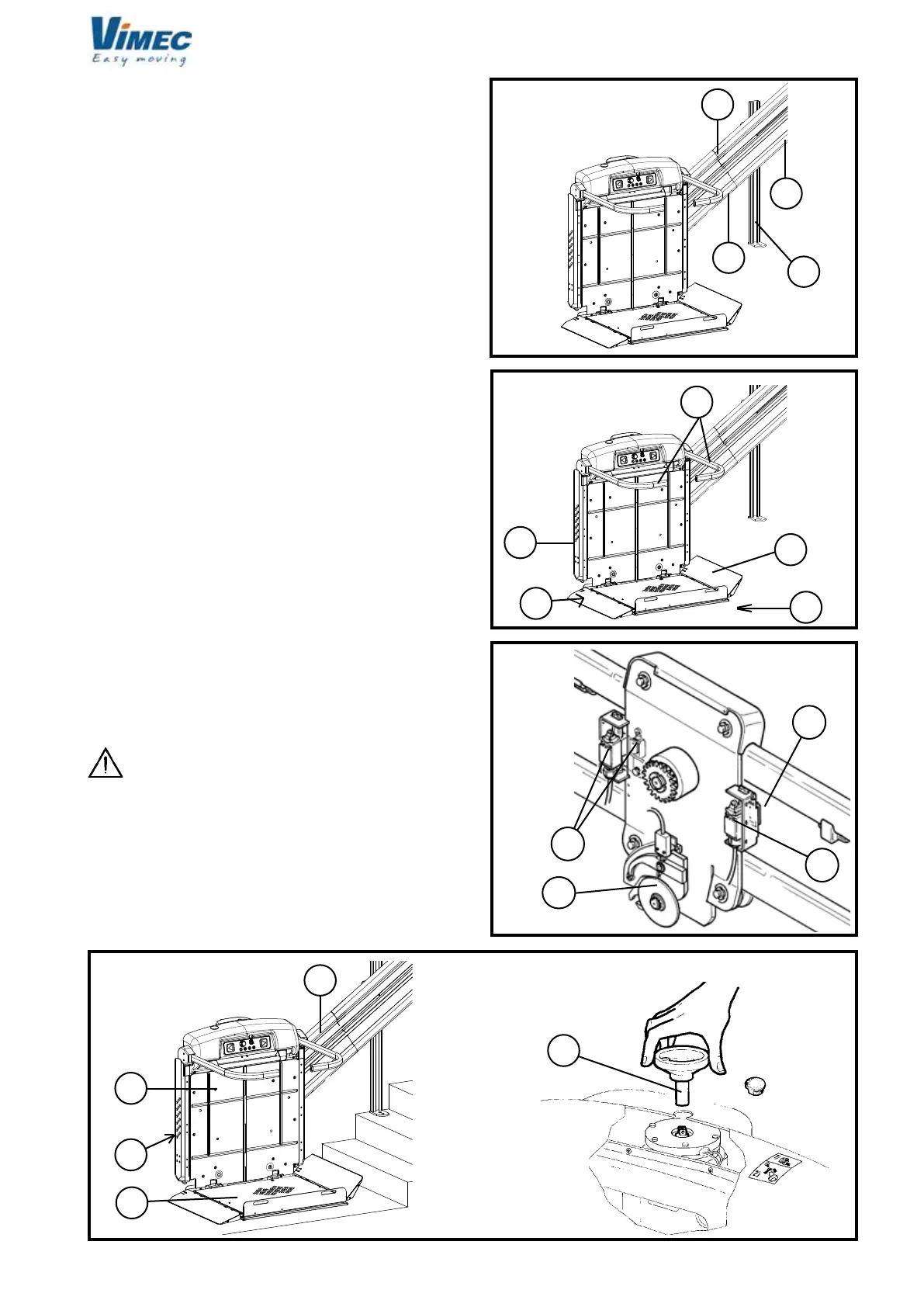

3.2) Main safety measures against risks of a me-
chanical nature
- Safety bars - Fig. 5/a.
- Retailer guard boards - Fig. 5/b.
- Anti-impact and anti-shearing sensor edges on stairlift
body - Fig. 5/c.
- Anti-impact and anti-shearing sensor edges on plat-
form - Fig. 5/d.
- Anti-crushing sensor base in platform - Fig. 5/e.
- Gradual action mechanical safety gear - Fig. 6/a.
- Electrical limit switches and over-limit stops - Fig. 6/b.
3.3) Main safety measures against risks of an elec-
trical nature
Protection against overcurrents, overloads, acci-
dental contacts and direct and indirect contacts.
- Circuit-breaker.
- Differential security breaker on power supply system.
3.4) Warning and compulsory procedure signs and
data-plates
The stairlift is tted with the following warning and
compulsory procedure signs and data-plates:
- Emergency switch must be pressed before operation
in manual mode - Fig. 2/e.
- Stairlift identication plate.
- Sign for manual release of bars and platform.
3.5) Supply condition
- Rails and rail connections - Fig. 7/a.
- Carriage - Fig. 6.
- Lift structure.
- Platform - Fig. 7/c.
- Casing - Fig. 7/d.
- Handwheel for manual operation - Fig. 7/e.
The system must be installed by specialist
operators authorised by VIMEC.
FIG.5
FIG.6
FIG.7
FIG.4
7512131
