14
pin will only engage with the wheel when the wheel is properly aligned. This arrangement provides
castor, track and steer motion.
Castor motion
For castor motion, disengage all three track locks (12). The skid can now be moved freely in any
direction.
Tracking motion
For tracking motion, engage all three track locks (12). The skid can now track backwards and for-
wards in a straight line.
Steer motion
For steer motion:
Position the skid so that the fixed leg (with the red knob) is in the direction of travel. Disen-
gage the red track lock (12).
Engage the black track locks (12).
With the fixed leg of the skid facing forwards the skid can now be moved with a ‘steering-
type’ motion.
WARNING! To ensure maximum stability, particularly when moving over
uneven ground, reduce pedestal height to a minimum.

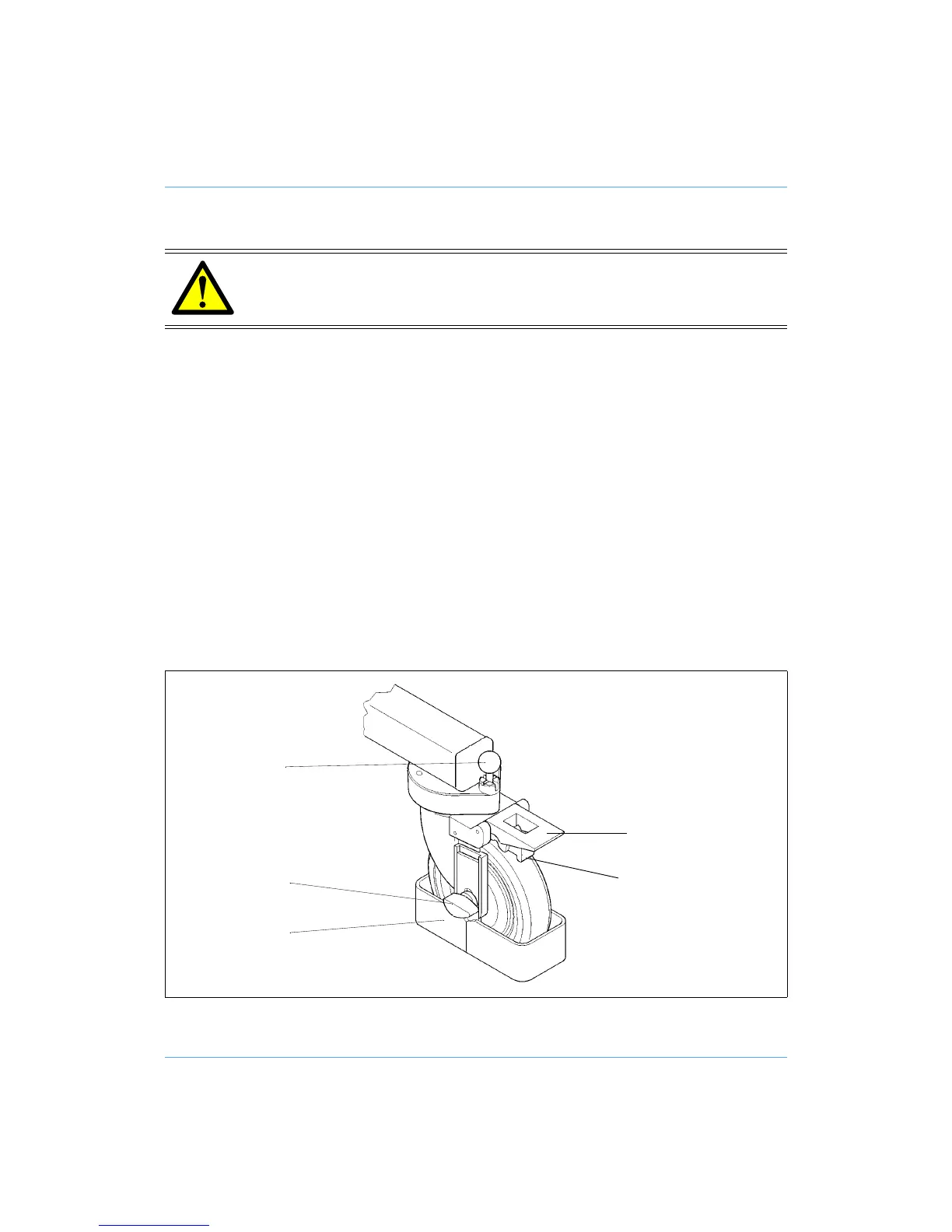

Brakes, Cable Guards and Pedestal Movement
(15.1)
(15)
(11.1)
(11)
(12)
