Vinten Pro-Ped - Bottom Clamp Adjustment

17
Bottom clamp adjustment
When applied finger-tight, the ‘V’ notch on the bottom clamp knob should be within the limits
shown. To adjust the bottom clamp (19):
Tighten the clamp finger-tight.
Remove the hole plug (19.1). Remove the screw (19.2) and washer (19.3) securing knob
(19) to the spindle (19.4).
Remove the knob, turn counter-clockwise, then replace on spindle (19.4) so that the ‘V’
notch on the clamp knob is within the limits shown.
Degrease screw (19.2), coat with Loctite 222E and secure knob with washer (19.3) and
screw (19.2). Replace hole plug (19.1).

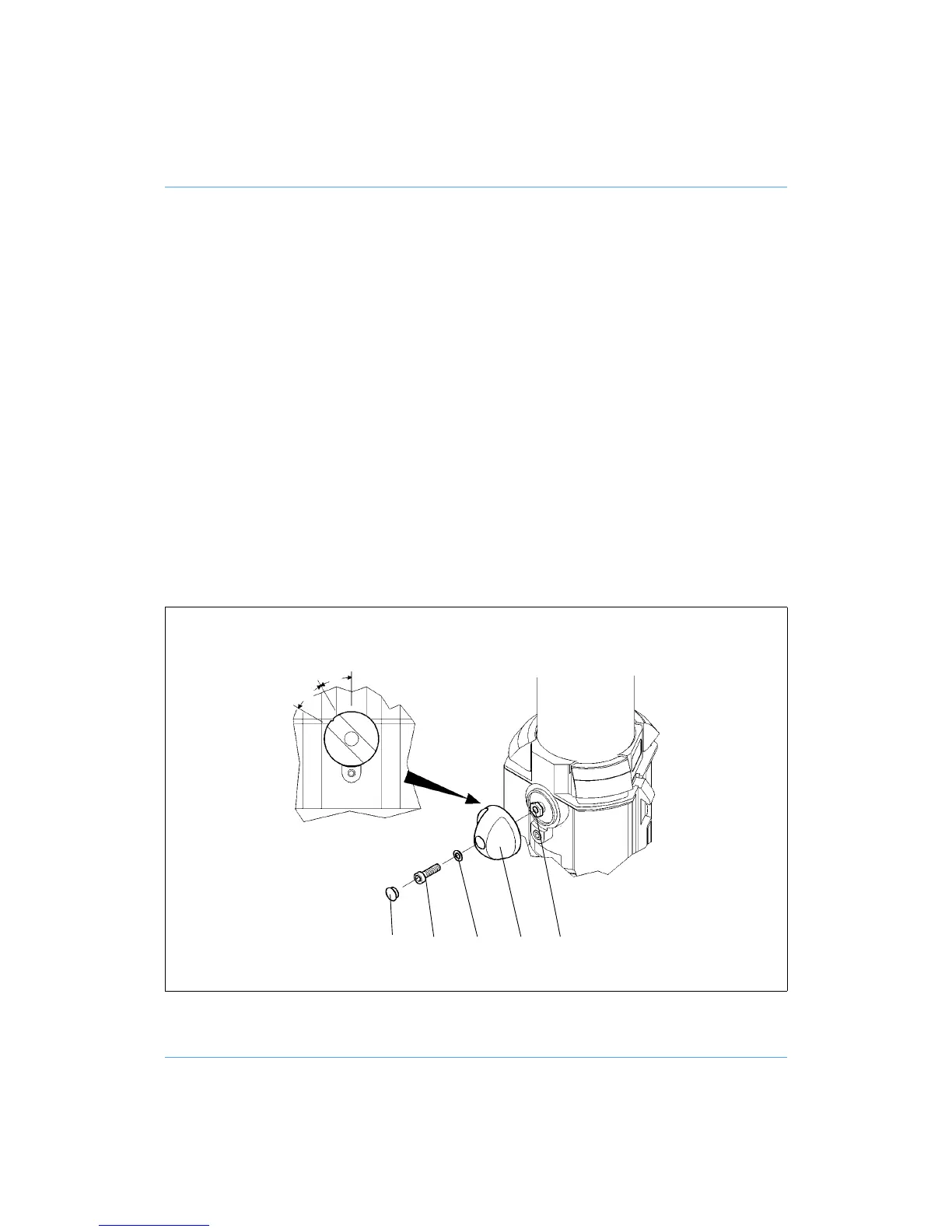

Bottom Clamp Adjustment
30°
(19.1) (19.4)(19)(19.3)(19.2)
30°
